Cordless 1D Linear Imager with 520 Scans per Second, 3 mil Resolution, Bluetooth 4.0+EDR, Up to 90 m Line-of-Sight Communication and Offline Batch Scanning

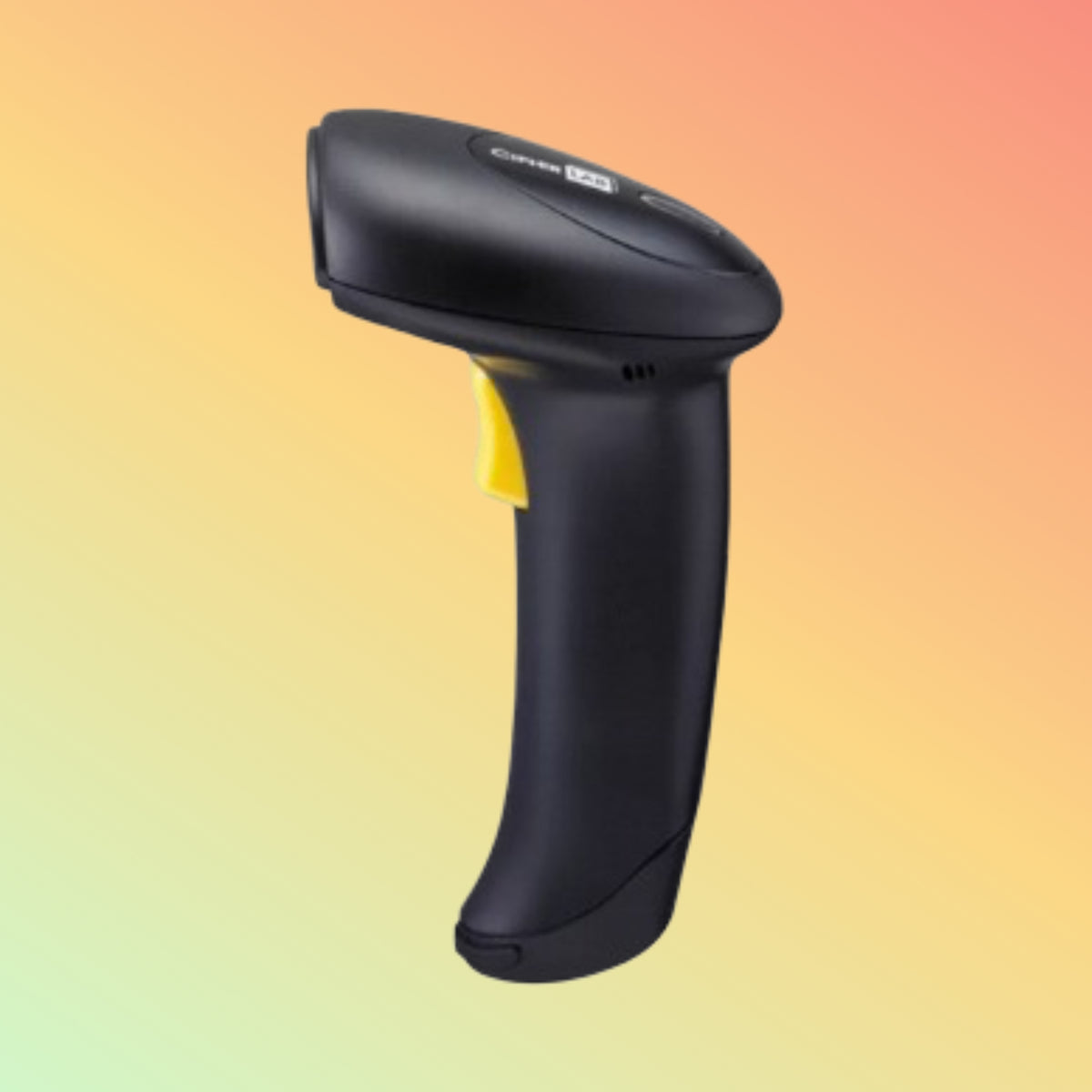

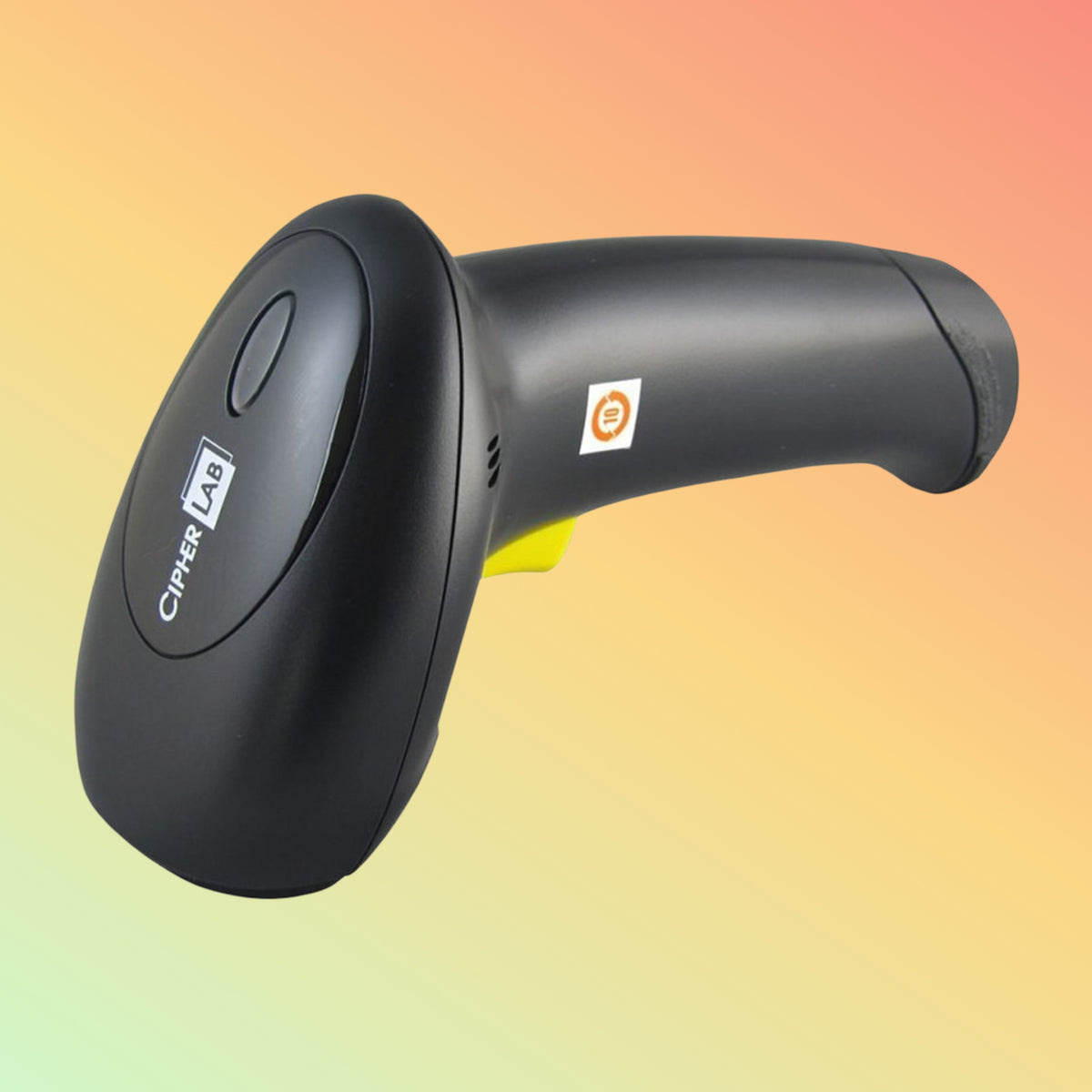

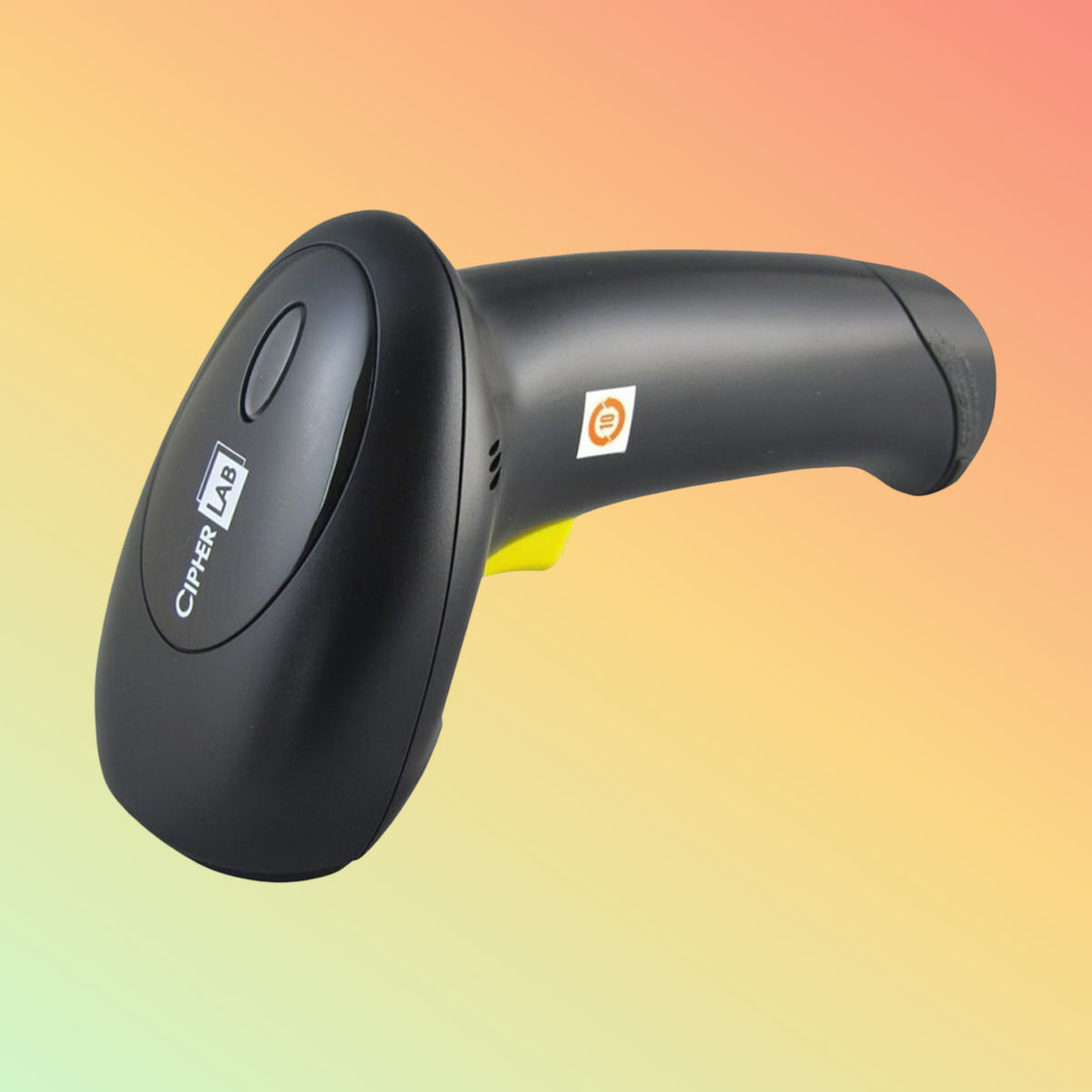

The CipherLab 1560P is a cordless Bluetooth 1D linear-imaging barcode scanner designed for businesses that need the scanning performance of the CipherLab 1500P with greater freedom of movement.

It combines a 2500-pixel CCD linear sensor, 520 scans per second, 3 mil resolution and support for common 1D barcode symbologies with Bluetooth Class 2 connectivity.

When used with the applicable communication stand, CipherLab specifies a wireless communication range of up to approximately 90 metres / 295 feet line of sight.

For situations where an operator moves outside Bluetooth communication range, the 1560P also provides reserved-buffer and batch-mode memory, allowing barcode data to be captured for later transmission.

This makes the 1560P relevant to retail, healthcare, public-sector, stockroom and other business environments where a conventional corded scanner would restrict operator movement.

Professional Highlights

• Bluetooth cordless 1D barcode scanner
• Linear-imaging technology
• 2500-pixel CCD linear sensor
• Red LED illumination at 618–626 nm
• Up to 520 scans per second
• 3 mil minimum resolution
• Bluetooth Class 2, 2.4 GHz
• Bluetooth Version 4.0+EDR
• SPP and HID Bluetooth profiles
• Up to approximately 90 m / 295 ft line-of-sight communication
• Reserved-buffer and batch-mode memory
• Offline barcode collection capability
• 4 KB reserved buffer
• 512 KB batch-mode memory
• Up to 36 hours working time under CipherLab's stated test conditions
• 3.7 V, 800 mAh rechargeable Li-ion battery
• Auto-sense and continuous scanning modes
• Long 1D barcode capability
• UPC/EAN, Code 39, Code 128, GS1 and other common 1D symbologies
• Pitch ±70°
• Skew ±70°
• 25% minimum print contrast
• Ambient illumination up to 100,000 lux
• Multiple 1.2 m drops onto concrete
• IP30 enclosure rating
• Approximately 173 g with battery
• Communication stand available for Bluetooth operation
• CipherLab ScanMaster configuration support

Bluetooth Cordless Scanning

The key difference between the CipherLab 1560P and 1500P is mobility.

The 1500P is corded.

The 1560P is Bluetooth cordless.

CipherLab specifies the 1560P with:

Bluetooth Class 2, 2.4 GHz, Version 4.0+EDR

and support for:

• SPP
• HID

This allows the scanner to operate without a data cable continuously connecting the scanner itself to the host.

Up to 90 m Line-of-Sight Communication

CipherLab specifies wireless coverage of up to approximately:

90 metres / 295 feet line of sight

when used in the applicable communication-stand environment.

This can provide useful freedom of movement for applications such as:

• Stock checking
• Receiving
• Retail floor scanning
• Inventory operations
• Back-room product identification
• General business scanning
• Public-sector workflows
• Healthcare supply identification

The 90 m figure is a line-of-sight manufacturer specification, not a guaranteed range in every building.

Actual Bluetooth range can be affected by:

• Walls
• Shelving
• Metal structures
• Equipment
• Radio interference
• Building layout
• Scanner orientation
• Host/communication configuration

Offline Batch Scanning

One of the strongest advantages of the 1560P is that work does not necessarily have to stop when the scanner temporarily moves outside its normal wireless communication range.

The 1560P supports:

Reserved-buffer mode

and:

Batch mode

This allows barcode information to be stored in scanner memory and transferred according to the configured workflow.

It can be useful for:

• Stock counting
• Back-room scanning
• Inventory checks
• Receiving
• Areas with intermittent Bluetooth coverage
• Temporary offline barcode collection

The required batch workflow should be configured and tested before operational deployment.

Memory

CipherLab specifies memory for the 1560P Bluetooth scanner as:

Reserved Buffer: 4 KB

Batch Mode: 512 KB

The actual number of barcode records that can be stored depends on the length and structure of the data being captured.

For that reason, capacity should not be represented as a fixed number of scans for every application.

520 Scans per Second

The CipherLab 1560P provides a scan rate of:

520 scans per second

This makes it suitable for repetitive 1D barcode capture in busy commercial environments.

The high scan rate can help operators acquire conventional linear barcodes quickly when the barcode is within the supported reading range and meets appropriate print-quality requirements.

2500-Pixel CCD Linear Sensor

The 1560P uses a:

2500-pixel CCD linear sensor

with a:

Red LED at 618–626 nm

Unlike a conventional laser scanner, the 1560P uses linear-imaging technology to capture supported 1D barcodes.

This is the same general scanner category as the CipherLab 1500P, but in a cordless Bluetooth configuration.

3 Mil Resolution

CipherLab specifies minimum resolution down to:

3 mil

This gives the 1560P the ability to read appropriately printed high-density 1D barcodes within its supported specifications.

For Code 39 at 3 mil, CipherLab specifies an approximate reading range of:

6.9–10.7 cm

Actual performance depends on barcode characteristics and operating conditions.

Long Barcode Capability

The CipherLab 1560P can also address long 1D barcode applications.

This can be relevant where long linear symbols are used for:

• Bills
• Documents
• Account references
• Administrative processing
• Utility-related workflows
• Business records

For applications involving unusually long or dense barcodes, testing the actual production barcode before larger deployment is recommended.

UPC-A Reading Range

For a standard:

UPC-A 13 mil

barcode, CipherLab specifies an approximate depth of field of:

4–40 cm

This provides flexibility for ordinary retail product scanning.

Code 39 Reading Range

CipherLab specifies approximately:

Code 39, 3 mil: 6.9–10.7 cm

Code 39, 5 mil: 6–17 cm

Actual depth of field depends on barcode quality, size, contrast and environmental conditions.

Supported 1D Barcode Symbologies

The CipherLab 1560P supports common linear symbologies including:

• Codabar
• Code 39
• Code 93
• Code 128
• GS1 DataBar / RSS
• Industrial 2 of 5
• Interleaved 2 of 5
• ISBT-128
• Italian Pharmacode
• French Pharmacode
• Matrix 2 of 5
• MSI
• Plessey
• Telepen
• UPC
• EAN
• GS1-128

and additional supported 1D formats.

Retail Applications

The CipherLab 1560P can be useful in retail environments where an operator needs greater mobility than a corded scanner provides.

Potential applications include:

• Product identification
• Stock checking
• Inventory lookup
• Receiving
• Shelf-related scanning
• Back-room operations
• POS-related 1D barcode capture

For a permanently fixed checkout counter where mobility provides no operational benefit, the corded 1500P may be a simpler alternative.

Inventory & Stockroom Applications

Bluetooth mobility can make the 1560P useful where the operator needs to move around products rather than bring every item to a fixed scanner.

Potential applications include:

• Inventory counts
• Goods receiving
• Stock checking
• Product lookup
• Replenishment
• Internal stock movement
• Back-room operations
• Packing and dispatch identification

The scanner captures barcode data; the connected inventory or ERP application determines what happens to that information.

Healthcare Applications

CipherLab positions the 1500 Series for healthcare as well as retail and public-sector environments.

The 1560P can support compatible healthcare workflows using 1D barcodes, including appropriate:

• Supply identification
• Inventory management
• Asset-related scanning
• Document identification
• Internal tracking

Healthcare buyers should confirm the actual barcode type before ordering.

The 1560P is not a 2D scanner and therefore should not be selected when the workflow requires Data Matrix, QR Code or another 2D format.

Public-Sector & Service Applications

The 1560P may also be useful in public-sector and service environments requiring mobile 1D barcode capture.

Potential applications include:

• Document identification
• Account lookup
• File tracking
• Reference-number scanning
• Administrative workflows
• Counter and back-office operations

Software compatibility and barcode format should be verified before deployment.

Rechargeable Battery

The CipherLab 1560P uses a:

3.7 V, 800 mAh Li-ion rechargeable battery

This provides cordless operation without disposable batteries.

Battery runtime depends on:

• Scan frequency
• Bluetooth communication
• Scanner configuration
• Battery age
• Charging condition
• Operating environment

Working Time

CipherLab specifies up to approximately:

36 hours

of working time for the 1560P based on its stated test condition of approximately one scan every five seconds.

This figure should be treated as a manufacturer test specification rather than a guaranteed operating time in every application.

Continuous intensive scanning, wireless conditions, configuration and battery age can change actual runtime.

Communication Stand

CipherLab offers a communication stand for its Bluetooth scanner configuration.

The communication stand provides Bluetooth communication between the scanner and the connected system.

CipherLab also states that the applicable communication stand can provide Bluetooth communication for up to seven scanners.

Multi-scanner deployment should be planned and tested according to the actual host, stand and application configuration.

Charging

CipherLab also lists a:

Single battery charger

for applicable Bluetooth scanner configurations.

The exact scanner package, communication stand, charging equipment and other accessories should be confirmed before ordering.

Do not assume every accessory is included with every 1560P configuration.

Auto-Sense & Continuous Scanning

The 1560P supports:

• Auto-sense mode
• Continuous scanning mode

These modes can help with repetitive barcode workflows and appropriate hands-free configurations.

The actual operating mode should be configured according to the application.

Scanning Angles

CipherLab specifies:

Pitch: ±70°

Skew: ±70°

This provides practical tolerance when a 1D barcode is presented at an angle rather than perfectly aligned.

Minimum Print Contrast

CipherLab specifies approximately:

25% minimum PCS

for the linear-imaging configuration.

Actual readability still depends on the complete barcode quality and operating environment.

Ambient Illumination

CipherLab specifies ambient illumination up to:

100,000 lux

This provides flexibility in brightly illuminated indoor environments.

It should not be interpreted as a guarantee that every barcode will scan under direct sunlight or from every reflective surface.

1.2 m Drop Resistance

CipherLab specifies the Bluetooth 1560P configuration for:

Multiple 1.2 m / 3.9 ft drops onto concrete

This provides protection against ordinary accidental drops during mobile commercial use.

Drop-test specifications do not mean the scanner is indestructible.

IP30 Protection

The CipherLab 1560P carries an:

IP30

ingress-protection rating.

It is primarily designed for normal indoor commercial environments.

IP30 should not be interpreted as protection against:

• Rain
• Water
• Wash-down
• Wet processing areas
• Heavy dust
• Outdoor weather exposure

For demanding warehouse or industrial environments, a more rugged scanner may be appropriate.

Compact Cordless Design

The scanner measures approximately:

153 × 61 × 93 mm

and weighs approximately:

173 g / 6.1 oz with battery

This keeps the scanner relatively lightweight while incorporating its rechargeable battery and wireless capability.

Technical Specifications

Brand: CipherLab
Model: 1560P
Series: CipherLab 1500 Series
Product Type: Bluetooth Handheld 1D Barcode Scanner
Scanning Technology: Linear Imager
Optical Sensor: CCD linear sensor, 2500 pixels
Light Source: Red LED, 618–626 nm
Minimum Resolution: 3 mil
Scan Rate: Up to 520 scans/second
Minimum PCS: Approximately 25%

Bluetooth

Technology: Bluetooth Class 2, 2.4 GHz
Version: Bluetooth 4.0+EDR
Profiles: SPP, HID
Coverage: Up to approximately 90 m / 295 ft line of sight with applicable communication setup

Memory

Reserved Buffer: 4 KB
Batch Mode: 512 KB

Battery

Type: Rechargeable Li-ion
Voltage: 3.7 V
Capacity: 800 mAh

Working Time

Up to approximately:

36 hours based on one scan every five seconds under CipherLab test conditions

Depth of Field

Code 39, 3 mil: Approximately 6.9–10.7 cm

Code 39, 5 mil: Approximately 6–17 cm

UPC-A, 13 mil: Approximately 4–40 cm

Actual reading distance varies according to barcode and environmental conditions.

Scanning Angle

Pitch: ±70°

Skew: ±70°

Hands-Free Scanning

• Auto-sense
• Continuous mode

Dimensions

Approximately:

153 × 61 × 93 mm

Weight

Approximately:

173 g / 6.1 oz with battery

Colour

Black

Operating Temperature

Approximately:

0°C to 50°C

Storage Temperature

Approximately:

-20°C to 60°C

Operating Humidity

Approximately:

10% to 90%

Storage Humidity

Approximately:

5% to 95%

Impact Resistance

Multiple drops from approximately:

1.2 m / 3.9 ft onto concrete

Ingress Protection

IP30

Electrostatic Discharge

Approximately:

±8 kV contact

±15 kV air

CipherLab 1560P vs 1500P

The 1560P and 1500P use closely related linear-imaging technology, but they serve different connectivity requirements.

CipherLab 1560P

• Bluetooth cordless
• Bluetooth 4.0+EDR
• Up to 90 m line-of-sight communication
• SPP and HID
• Rechargeable 800 mAh Li-ion battery
• Reserved-buffer and batch modes
• Approximately 173 g with battery
• 1.2 m drop specification

CipherLab 1500P

• Corded
• No Bluetooth battery management
• 520 scans/sec
• 3 mil resolution
• Approximately 149 g without cable
• 1.5 m drop specification

Both provide 520 scans/sec and 3 mil linear-imaging capability.

Choose the 1560P when cordless movement provides a meaningful operational benefit.

Choose the 1500P when the scanner will remain at a fixed workstation and a cable is acceptable.

CipherLab 1560P vs 1562

Both are Bluetooth cordless 1D scanners, but they use different scanning technologies.

CipherLab 1560P

• Linear imager
• 2500-pixel CCD sensor
• 520 scans/sec
• 3 mil resolution
• Bluetooth 4.0+EDR
• 25% minimum PCS

CipherLab 1562

• Laser scanner
• 100 scans/sec
• 4 mil resolution
• Bluetooth 2.1+EDR
• 45% minimum PCS

The choice should depend on barcode characteristics and application requirements rather than simply whether both models are wireless.

CipherLab 1560P vs 1564A

These are fundamentally different barcode categories.

CipherLab 1560P

• Bluetooth cordless
• 1D linear imager
• Traditional linear barcodes
• Does not provide general 2D barcode scanning

CipherLab 1564A

• Bluetooth cordless
• 2D area imager
• Supports applicable 1D and 2D barcodes
• Appropriate where QR Code or Data Matrix capability is required

If your workflow requires 2D codes, the 1560P is not the correct scanner.

Does the CipherLab 1560P Scan QR Codes?

No.

The CipherLab 1560P is a 1D linear-imaging scanner.

It should not be purchased when the application requires:

• QR Code
• Data Matrix
• PDF417
• Micro QR
• Aztec
• Other 2D barcodes

A compatible 2D imager such as the CipherLab 1564A should be considered instead.

Purpose of Use

The CipherLab 1560P is intended primarily for applications requiring:

• Bluetooth cordless 1D scanning
• Fast linear barcode capture
• Retail scanning
• Inventory checking
• Stockroom mobility
• Goods receiving
• Healthcare workflows using compatible 1D codes
• Public-sector data capture
• Offline/batch barcode collection
• Greater operator movement than a corded scanner permits

Compatibility

Before ordering, verify compatibility with:

• Required 1D barcode symbology
• Host system
• POS software
• ERP software
• Inventory software
• Bluetooth profile
• Communication stand
• Required operating mode
• Batch-mode workflow
• Barcode size
• Reading distance
• Charging arrangement
• Required accessories

Bluetooth support alone does not guarantee compatibility with every computer, POS system, tablet, mobile device or software application.

Things to Verify Before Ordering

Please confirm:

• Exact model: CipherLab 1560P
• 1D scanning is sufficient
• QR Code is not required
• Data Matrix is not required
• Bluetooth operation is required
• Required Bluetooth profile
• Communication range requirement
• Host equipment
• POS/ERP/application compatibility
• Batch-mode requirement
• Communication stand requirement
• Charging requirement
• Barcode symbology
• Smallest barcode size
• Quantity
• Current availability
• Package contents
• Applicable UAE warranty entitlement

Who Should Consider the CipherLab 1560P?

The 1560P may be suitable for:

• Retail stores
• Stockrooms
• Inventory teams
• Goods receiving
• Healthcare supply workflows using 1D codes
• Public-sector environments
• Back-office operations
• Businesses requiring cordless scanning around a workstation
• Applications needing temporary offline barcode collection

Who May Need a Different Scanner?

Consider another model if you require:

• QR Code
• Data Matrix
• PDF417
• 2D pharmaceutical barcodes
• Heavy industrial ruggedness
• Water resistance
• Higher IP protection
• Extended-range warehouse barcode reading
• Specialized Direct Part Marking
• A simple fixed corded workstation where Bluetooth provides no benefit

How to Use

1. Confirm the required host and communication arrangement.
2. Charge the scanner battery before initial deployment.
3. Pair or configure the 1560P using the applicable Bluetooth setup.
4. Select the appropriate SPP or HID workflow.
5. Configure required barcode symbologies.
6. Open the target POS, ERP, inventory or business application.
7. Scan representative production barcodes.
8. Verify that decoded data reaches the correct application field.
9. Configure reserved-buffer or batch mode if offline collection is required.
10. Test communication range and recovery behaviour in the actual workplace before full deployment.

Why NEOTECH® UAE?

NEOTECH® focuses on helping UAE customers select barcode scanners according to the actual barcode, mobility and software requirement.

• Exact CipherLab model verification
• Corded versus Bluetooth guidance
• 1D versus 2D scanner guidance
• Barcode symbology verification
• Bluetooth workflow guidance
• Communication-range requirement checking
• Batch-mode application guidance
• POS and software compatibility guidance
• Transparent availability and lead-time communication
• UAE-focused quotation and delivery support
• No pressure to purchase when the scanner is unsuitable

Learn First. Decide Second.

Request a Quote or Order in the UAE

Looking for the CipherLab 1560P Bluetooth 1D Linear Imager Barcode Scanner?

For accurate selection, please provide:

• Quantity
• Application or industry
• Barcode type
• Sample barcode where possible
• Required operating distance
• Host equipment
• POS/ERP/software name
• Communication stand requirement
• Batch/offline scanning requirement

If QR Code or Data Matrix is part of your workflow, please mention this before ordering because the CipherLab 1560P is a 1D scanner.

For price, availability or a formal quotation:
Email: support@neotech.ae

Learn First. Decide Second.

Delivery - UAE

Delivery is available within the United Arab Emirates.

Order Cut-Off: 14:00 GST
Handling: 1–2 business days where applicable
Standard Transit: Approximately 3–5 business days after handling
Typical Total Delivery: Approximately 4–7 business days for confirmed available products

For non-stock or special-order items, delivery may extend to approximately 10–15 working days or up to 25 working days after payment/order confirmation, depending on supplier/manufacturer availability.

Current availability, package configuration, communication stand and charging requirements should be confirmed before ordering.

FAQ - CipherLab 1560P

Q: What is the CipherLab 1560P?
A: The CipherLab 1560P is a Bluetooth cordless handheld 1D linear-imaging barcode scanner in the CipherLab 1500 Series.

Q: Is the CipherLab 1560P wireless?
A: Yes. It uses Bluetooth for cordless barcode scanning.

Q: What Bluetooth version does it use?
A: CipherLab specifies Bluetooth Class 2, 2.4 GHz, Version 4.0+EDR.

Q: Which Bluetooth profiles does the 1560P support?
A: CipherLab specifies SPP and HID.

Q: What is the wireless range?
A: CipherLab specifies up to approximately 90 m / 295 ft line of sight with the applicable communication setup. Actual range depends on the operating environment.

Q: What happens when the scanner moves outside Bluetooth range?
A: The 1560P supports reserved-buffer and batch modes for applicable offline data-collection workflows.

Q: How much memory does the CipherLab 1560P have for offline scanning?
A: CipherLab specifies 4 KB reserved-buffer memory and 512 KB batch-mode memory.

Q: How fast does the CipherLab 1560P scan?
A: Up to 520 scans per second.

Q: What is its minimum resolution?
A: Approximately 3 mil.

Q: Does the CipherLab 1560P scan QR Codes?
A: No. It is a 1D linear imager.

Q: Does it read Data Matrix?
A: No. A compatible 2D scanner is required.

Q: Does it read Code 128?
A: Yes.

Q: Does it support UPC and EAN?
A: Yes.

Q: Does it support GS1-128?
A: Yes.

Q: What type of battery does it use?
A: CipherLab specifies a rechargeable 3.7 V, 800 mAh Li-ion battery.

Q: How long can the battery operate?
A: CipherLab specifies up to approximately 36 hours based on one scan every five seconds under its test conditions. Actual runtime varies with use and battery condition.

Q: Can the CipherLab 1560P operate hands-free?
A: It supports auto-sense and continuous scanning modes. The appropriate stand and configuration should be confirmed.

Q: What is its UPC-A reading range?
A: For UPC-A at 13 mil, CipherLab specifies approximately 4–40 cm under defined conditions.

Q: What is the drop specification?
A: CipherLab specifies multiple 1.2 m drops onto concrete.

Q: What is the IP rating?
A: IP30.

Q: Is it waterproof?
A: No. IP30 does not provide water protection.

Q: What are its dimensions?
A: Approximately 153 × 61 × 93 mm.

Q: How much does it weigh?
A: Approximately 173 g with battery.

Q: Is the communication stand always included?
A: It should not be assumed to be included. Package contents vary by configuration and should be confirmed in the quotation.

Q: What is the difference between CipherLab 1560P and 1500P?
A: Both are 3 mil linear imagers specified at 520 scans per second, but the 1560P is a Bluetooth cordless model with battery, wireless communication and offline memory, while the 1500P is corded.

Q: What warranty applies to the CipherLab 1560P?
A: CipherLab's published 1500 Series information lists a 3-year warranty for the 1560P. Actual UAE warranty entitlement and service terms should be confirmed for the specific supply channel.

Q: What should I verify before ordering?
A: Confirm the exact 1560P model, barcode type, Bluetooth profile, communication range, host/software compatibility, communication stand, charging arrangement, quantity, package contents, availability and applicable warranty.

Related Products

• CipherLab 1500P Corded 1D Linear Imager Barcode Scanner
• CipherLab 1502 Corded 1D Laser Barcode Scanner
• CipherLab 1562 Bluetooth 1D Laser Barcode Scanner
• CipherLab 1504P Corded 1D/2D Barcode Scanner
• CipherLab 1504A Corded 1D/2D Barcode Scanner
• CipherLab 1564A Bluetooth 1D/2D Barcode Scanner
• Bluetooth Barcode Scanners
• 1D Barcode Scanners

Helpful Internal Links

• CipherLab Barcode Scanners UAE
• Bluetooth Barcode Scanners UAE
• 1D Barcode Scanners UAE
• Retail Barcode Scanners UAE
• Inventory Barcode Scanners UAE
• Healthcare Barcode Scanners UAE
• POS Barcode Scanners UAE
• Auto-ID Solutions UAE

Contact - NEOTECH® UAE

For scanner selection, Bluetooth requirements, barcode compatibility or quotation:

Email: support@neotech.ae
Address: Store 13, Computer Building, Al Fahidi, Bur Dubai, Dubai 44245, UAE

Disclaimer - NEOTECH® UAE

CipherLab, 1560P, 1500 Series, ScanMaster, Bluetooth and related names are trademarks or product identifiers of their respective owners.

The CipherLab 1560P is a Bluetooth cordless 1D linear-imaging barcode scanner. It should not be represented as a 2D scanner.

Wireless range, battery working time, scan rate, reading distance, resolution, ambient-light tolerance, impact resistance and other performance figures are manufacturer specifications measured under defined conditions. Actual performance can vary with barcode characteristics, building layout, wireless interference, scanner configuration, battery condition and operating environment.

The stated 90 m Bluetooth coverage refers to line-of-sight conditions with the applicable communication setup and should not be treated as guaranteed indoor range.

Communication stands, chargers and other accessories vary by configuration and should not be assumed to be included unless specifically stated in the quotation.

Package contents, host/software compatibility, availability and applicable UAE warranty entitlement should be confirmed before ordering.

Last Updated: 28 September 2026 (GST, UTC+4)
