Compact 1D and 2D barcode scanning for kiosks, POS terminals, embedded systems and automated applications.

Compact Fixed-Mount 1D and 2D Barcode Scanner for POS, Kiosks, Embedded Systems and Automated Data Capture

Professional Highlights

• Compact fixed-mount barcode scanner from Datalogic's Gryphon family.
• Omnidirectional reading of supported 1D and 2D barcodes.
• Wide VGA CMOS image sensor with 752 × 480 pixel resolution.
• Designed for integration into kiosks, terminals and embedded applications.
• IP54-rated enclosure for resistance to dust and water ingress under specified test conditions.
• Compact dimensions of approximately 39 × 57 × 58 mm.
• Operating temperature range of −20°C to +50°C.
• Ambient light tolerance specified up to 100,000 lux.
• USB and RS-232 configurations referenced in product specifications; exact interface depends on the supplied version.
• Suitable for compatible retail, access-control, ticketing and automated identification applications.

Product Overview

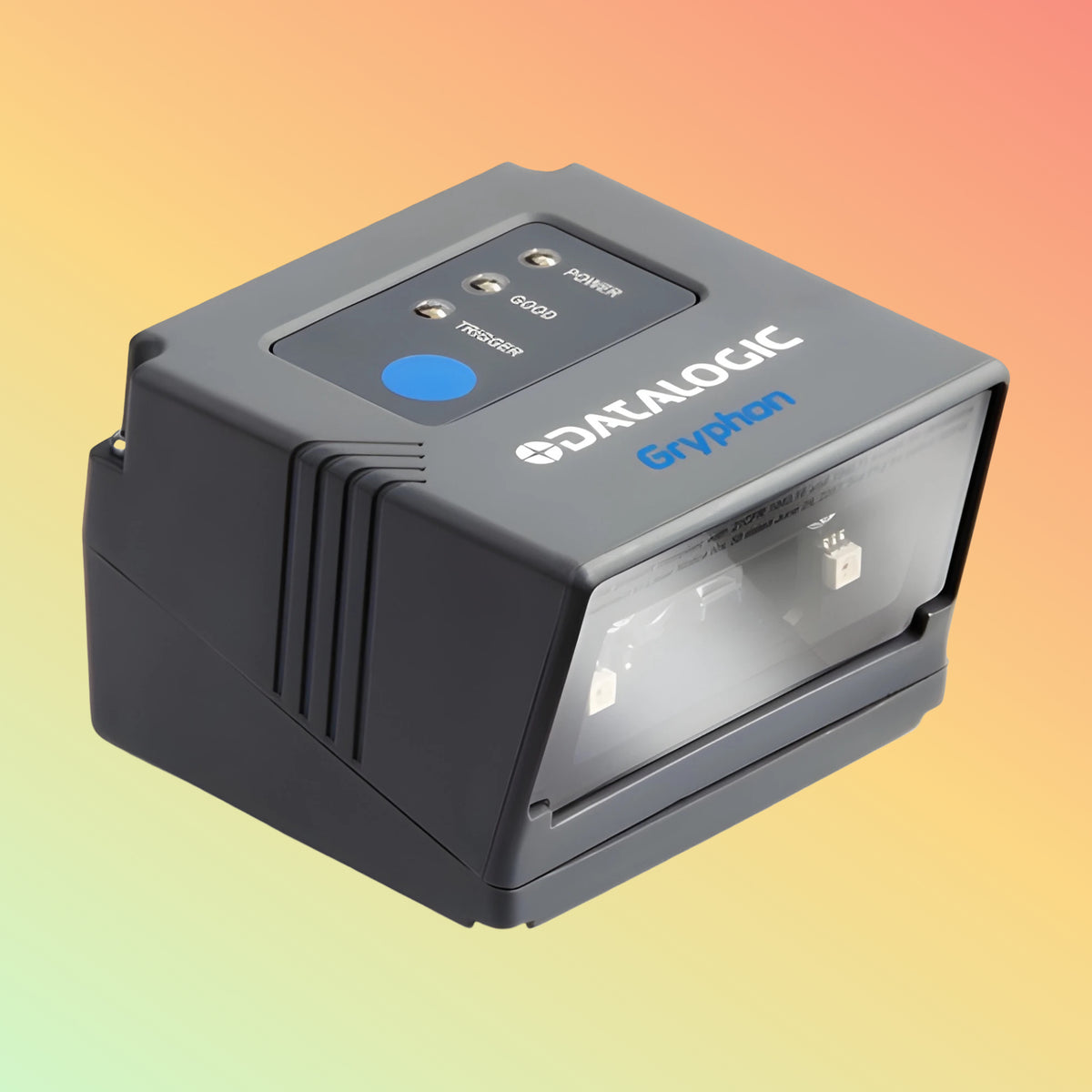

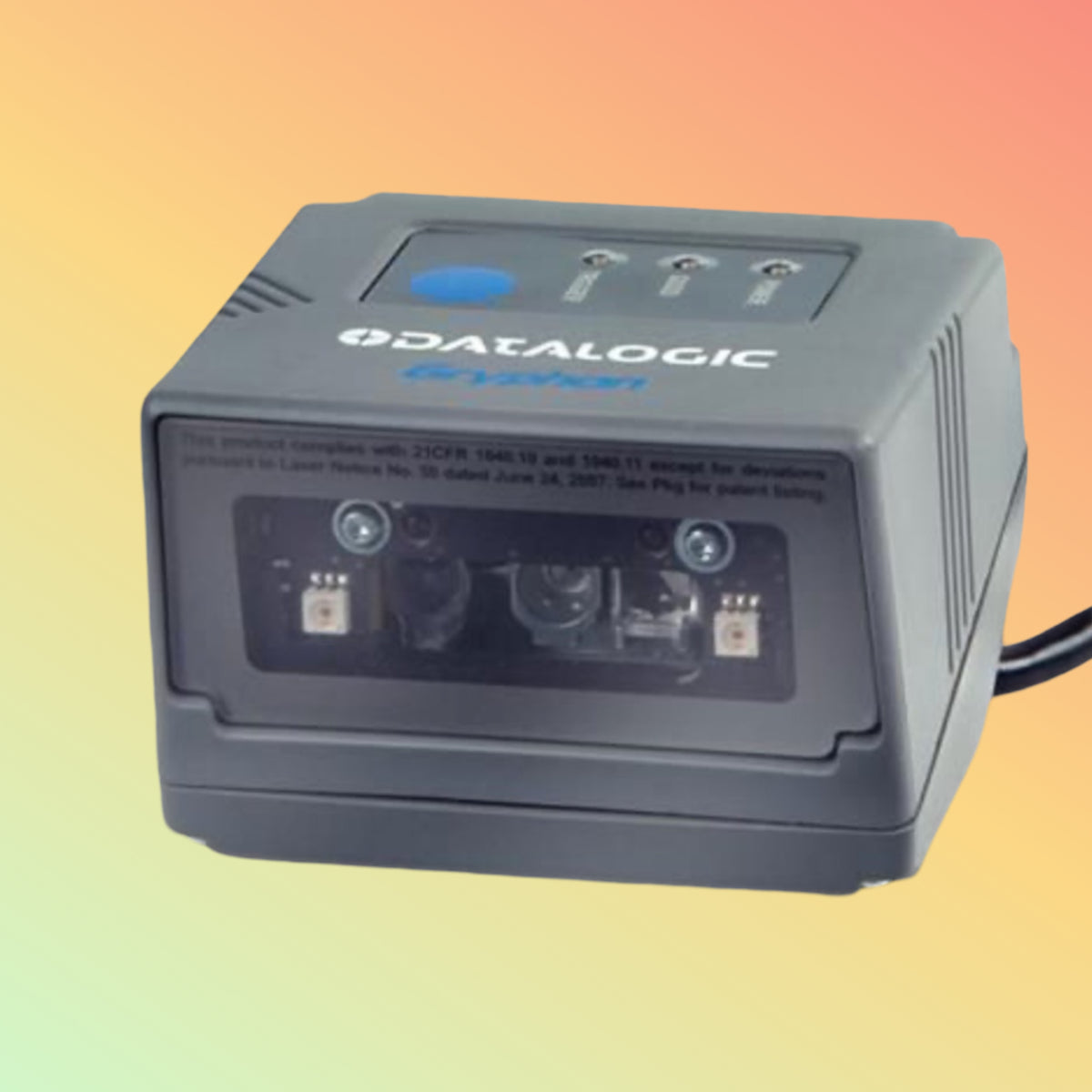

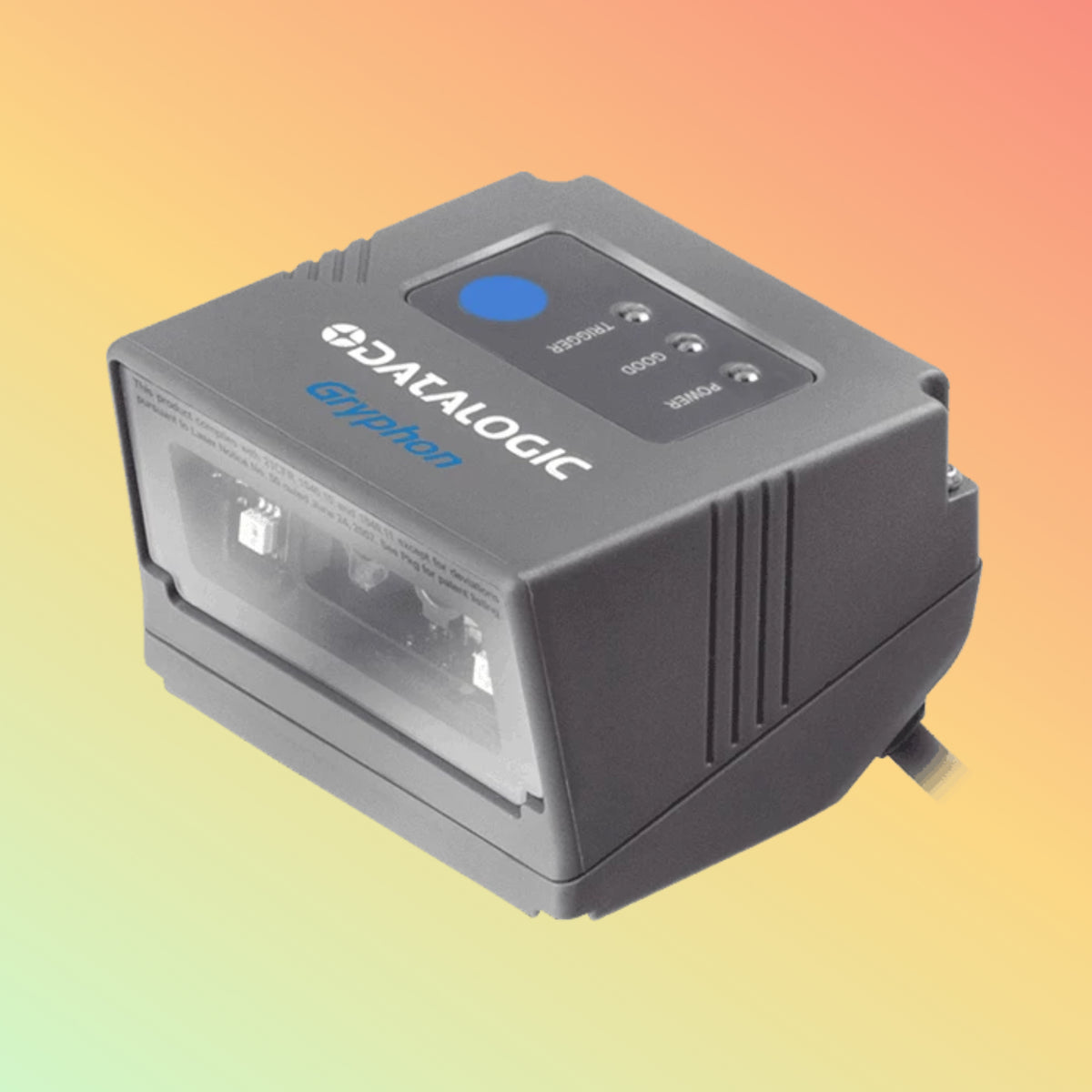

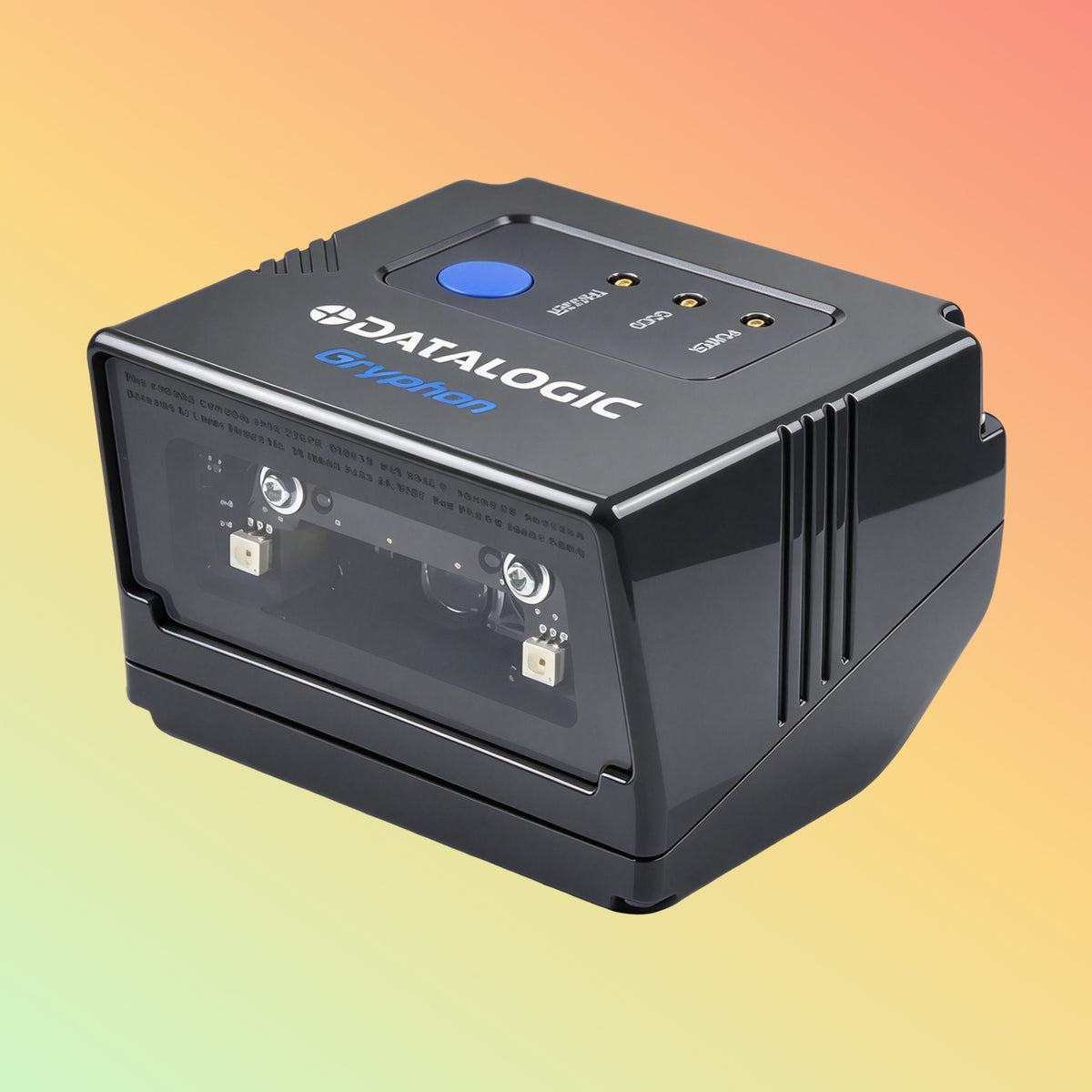

The Datalogic Gryphon GFS4470 is a compact, fixed-mount 2D barcode scanner designed for applications where a conventional handheld scanner may not be practical.

Its small enclosure allows integration into compatible self-service kiosks, point-of-sale equipment, access-control systems, ticketing terminals and other devices requiring automatic barcode capture.

Using a CMOS imaging sensor, the GFS4470 reads supported linear and two-dimensional barcodes, including compatible QR codes, without requiring users to align a barcode in a single orientation.

The scanner is intended for integration into a host system. It is not a complete standalone POS terminal and requires appropriate power, connectivity, software and installation.

Detailed Product Description

Compact Fixed-Mount Design

The GFS4470 is designed for installations where space is limited and barcode scanning must be integrated into existing equipment.

Its compact dimensions make it suitable for installation within compatible enclosures, counters and specialised equipment, subject to mechanical clearance, mounting requirements and scanning distance.

Unlike a handheld scanner, a fixed-mount scanner is generally positioned within the system so that barcodes are presented to its scanning field.

Omnidirectional 1D and 2D Barcode Reading

The scanner uses image-based barcode capture to read supported 1D and 2D symbologies.

Omnidirectional reading can reduce the need for precise barcode orientation, making it useful in customer-facing and automated workflows.

Actual performance depends on barcode size, print quality, surface condition, presentation angle, distance and environmental conditions.

Wide VGA CMOS Imaging

The GFS4470 is specified with a Wide VGA CMOS image sensor featuring a resolution of 752 × 480 pixels.

This imaging system supports barcode decoding in compatible applications.

The stated 4 mil optical resolution is a technical reference and should not be interpreted as a guarantee that every 4 mil barcode will be readable under all operating conditions.

IP54-Rated Protection

The scanner's IP54-rated enclosure provides a defined level of protection against dust and water splashes.

IP54 does not mean that the device is waterproof, washable under pressure or suitable for immersion.

The suitability of the scanner for outdoor, wet or dusty environments depends on the complete installation and operating conditions.

Flexible System Integration

The GFS4470 is intended to communicate with a compatible host device.

Product specifications reference USB and RS-232 versions. Customers must select the correct manufacturer part number and communication interface for their application.

USB and RS-232 should not be assumed to be interchangeable or included together.

Product Facts

Brand: Datalogic
Product Family: Gryphon
Model: GFS4470
Product Category: Fixed-Mount Barcode Scanner
Scanning Technology: CMOS Area Imaging
Barcode Types: Supported 1D and 2D Symbologies
Scanning Pattern: Omnidirectional
Installation: Fixed-Mount / Embedded
Enclosure Rating: IP54
Colour: Grey
Primary Use: Barcode Capture and Automated Identification
Country of Supply: United Arab Emirates

Technical Specifications

Scanning and Imaging

• Scan Element: CMOS
• Image Sensor: Wide VGA, 752 × 480 pixels
• Scanning Capability: Supported 1D and 2D barcodes
• Optical Resolution: 4 mil, as stated in the existing product specifications
• Barcode Orientation: Omnidirectional reading
• Supported Symbologies: Dependent on firmware and manufacturer specifications
• Reading Distance: Dependent on barcode characteristics and operating conditions

Physical Specifications

• Dimensions: Approximately 39 × 57 × 58 mm
• Colour: Grey
• Weight Including Cable: Approximately 170 g for the USB configuration and 204 g for the RS-232 configuration, as stated in the existing product information
• Protection Rating: IP54

Electrical and Connectivity

• Input Voltage: 5 VDC ±5%
• Interface Options: USB or RS-232 configurations, depending on manufacturer part number
• Power Source: Compatible host or approved power arrangement, according to the selected version
• Cable Configuration: Confirm before ordering

Environmental Specifications

• Operating Temperature: −20°C to +50°C
• Storage Temperature: −20°C to +70°C
• Relative Humidity: 5% to 95%, non-condensing
• Ambient Light Tolerance: 0 to 100,000 lux

Technical Note: These specifications are carried forward from the existing GFS4470 product information. Exact specifications, interfaces and supplied accessories should be checked against the manufacturer documentation for the part number being purchased.

Product Quality and Performance

The Datalogic Gryphon GFS4470 is intended for barcode capture in compatible commercial and embedded environments.

Its compact imaging design can support reliable transaction and identification workflows when the scanner is correctly installed and configured.

Performance depends on:

• Barcode quality and contrast.
• Barcode dimensions and symbology.
• Distance between the scanner and barcode.
• Scanning angle and presentation.
• Ambient lighting.
• Host software and interface configuration.
• Power stability.
• Mounting position and enclosure design.

For automated or unattended installations, customers should test the scanner with representative barcodes before deploying it across multiple systems.

Applications and Industries

Self-Service Kiosks

The GFS4470 can be considered for compatible kiosks requiring barcode reading for identification, ticket verification or transaction processing.

Retail and POS Systems

Suitable for integration into compatible retail equipment where fixed-position barcode capture is preferred over handheld scanning.

Ticketing and Access Control

Can support barcode-based ticket and credential reading when integrated with suitable access-control or ticket-validation software.

Hospitality and Visitor Management

Applicable to compatible check-in, registration and visitor-identification systems that use supported barcode formats.

Industrial and OEM Equipment

Its compact form factor can support selected equipment-manufacturer applications requiring an embedded barcode scanning module.

Automated Identification

Suitable for compatible systems where barcodes are presented to a fixed scanner as part of an automated workflow.

Compatibility and Supported Systems

The GFS4470 is intended for integration with compatible host systems rather than universal plug-and-play operation.

Before purchase, customers should verify:

• Exact GFS4470 manufacturer part number.
• Required USB or RS-232 interface.
• Host operating system and software.
• Communication protocol.
• Power supply requirements.
• Barcode symbologies and sizes.
• Scanning distance.
• Mounting dimensions and orientation.
• Environmental conditions.
• Driver or application configuration.
• Any specialised trigger or scanning-mode requirements.

Important: Compatibility with Windows, Linux, Android, POS software, kiosks or OEM equipment depends on the actual interface and software implementation. Support for a particular operating system or application should not be assumed without verification.

Benefits and Buyer Guidance

Why Choose a Fixed-Mount Scanner?

A fixed-mount scanner may be useful when:

• The scanner must be integrated into a kiosk or machine.
• Customers present barcodes to a designated scanning point.
• Counter space is limited.
• A handheld device is unsuitable.
• The application requires a repeatable barcode presentation position.
• A compact scanning module is needed for equipment integration.

Before Replacing an Existing Scanner

If replacing an existing GFS4470, please confirm the complete part number, interface, cable connection and system requirements.

A scanner from the same family may not be a direct replacement if its interface, mounting arrangement, firmware or communication settings differ.

Product Lifecycle and Alternative Models

The GFS4470 is an older product model. Customers should confirm current availability and manufacturer support before planning a new installation or long-term deployment.

If the exact GFS4470 is unavailable, NEOTECH® can review a suitable alternative upon request. Any proposed replacement must be checked for interface, dimensions, software and application compatibility.

How to Use

1. Identify the correct GFS4470 interface version.
2. Review the installation requirements for the host equipment.
3. Mount the scanner securely in the intended position.
4. Connect the approved power and communication arrangements.
5. Configure the host application and scanner settings as required.
6. Present a supported barcode within the scanner's operating field.
7. Test barcode decoding and communication with the host system.
8. Adjust positioning or configuration according to the manufacturer instructions.
9. Validate the complete workflow before production deployment.

For kiosk and OEM integration, installation should be performed by personnel familiar with the host equipment and its electrical and software requirements.

Package Contents, Dimensions and Weight

Scanner Dimensions: Approximately 39 × 57 × 58 mm.

Weight Including Cable:

• USB configuration: Approximately 170 g.
• RS-232 configuration: Approximately 204 g.

Actual package contents depend on the manufacturer part number and supplier packaging.

Before ordering, confirm whether the quoted package includes:

• GFS4470 scanner.
• Required interface cable.
• Mounting accessories.
• Documentation.
• Any external power accessory.

Do not assume that all cables, mounting hardware or integration accessories are included.

Warranty and After-Sales Support

Warranty coverage and duration will be confirmed in the final quotation or order documentation.

NEOTECH® can assist with product identification, supplier warranty coordination and relevant after-sales enquiries according to the agreed terms.

On-site installation, custom software development, equipment modification, lifetime repair services and maintenance contracts are not included unless separately agreed in writing.

Customers should retain their purchase invoice and follow the applicable warranty conditions.

Delivery & Returns UAE

NEOTECH® can arrange delivery of eligible orders across the United Arab Emirates.

• Availability: Subject to verification for the exact model and part number.
• Delivery Time: Confirmed after stock or supplier availability is checked.
• Delivery Charges: Confirmed in the quotation or checkout.
• Special Orders: Lead time and applicable conditions will be communicated before payment.
• Returns: Subject to the published NEOTECH® return policy and applicable UAE law.

For specialised or older products, customers should confirm the exact model, compatibility and commercial conditions before ordering.

If NEOTECH® cannot fulfil an accepted order, the customer will be offered a refund of the amount received for the unfulfilled goods, including applicable VAT, without NEOTECH® handling or cancellation fees, subject to payment verification and processing requirements.

Request a Quote or Order in the UAE

For the Datalogic Gryphon GFS4470, please provide:

• Required quantity.
• Exact manufacturer part number, if available.
• USB or RS-232 interface requirement.
• Existing scanner model, if replacing a unit.
• Host equipment or kiosk model.
• Operating system and application details.
• Delivery location.
• Required delivery timeframe.

NEOTECH® will review the requirement and provide a quotation based on the confirmed configuration and availability.

The quotation will specify the applicable price, VAT, payment terms, delivery arrangements and warranty conditions.

Why NEOTECH® UAE?

NEOTECH® supports businesses looking for accurate product information and practical purchasing guidance.

We focus on:

• Exact model and part-number identification.
• Transparent product specifications.
• Compatibility checks before ordering.
• Clear quotations and commercial conditions.
• UAE delivery arrangements.
• Business and quantity-based enquiries.
• Honest disclosure of availability and lead-time limitations.

We do not claim universal compatibility, guaranteed availability or manufacturer authorisation without supporting evidence.

Learn First. Decide Second.

Contact – NEOTECH® UAE

NEOTECH® UAE
Operated by NEOLYN TECHNOLOGY LLC

Email: support@neotech.ae
Location: Store 13, Computer Building, Al Fahidi, Bur Dubai, Dubai, UAE
Website: https://neotech.ae

Helpful Internal Links

Barcode Scanners UAE
https://neotech.ae/collections/barcode-scanner

Shipping Policy
https://neotech.ae/policies/shipping-policy

Refund Policy
https://neotech.ae/policies/refund-policy

FAQ – Datalogic Gryphon GFS4470

Q: What is the Datalogic Gryphon GFS4470?
A: It is a compact fixed-mount imaging scanner designed to read supported 1D and 2D barcodes in compatible equipment and applications.

Q: Is the GFS4470 a handheld scanner?
A: No. It is designed primarily for fixed-mount and embedded installations.

Q: Can the GFS4470 read QR codes?
A: It supports 2D barcode scanning, including compatible QR-code formats, subject to firmware and barcode characteristics.

Q: What does omnidirectional scanning mean?
A: It means supported barcodes can be read in multiple orientations within the scanner's effective reading field.

Q: Does the scanner have a USB interface?
A: USB configurations are referenced in the product specifications. The exact part number must be confirmed before ordering.

Q: Is RS-232 connectivity available?
A: RS-232 configurations are also referenced. Customers should confirm the required version.

Q: Can it connect to any POS system?
A: No. Compatibility depends on the host equipment, software, interface and communication requirements.

Q: Is the scanner suitable for self-service kiosks?
A: It can be suitable for compatible kiosk applications when mounting, scanning and software requirements are met.

Q: Can it be used for ticket scanning?
A: Yes, in compatible ticketing applications that use supported barcode formats and host software.

Q: Is the GFS4470 waterproof?
A: No. Its IP54 rating provides limited protection against dust and water splashes, not waterproofing or immersion protection.

Q: What is the image sensor resolution?
A: The existing product specifications state a Wide VGA CMOS sensor with 752 × 480 pixels.

Q: What are the scanner dimensions?
A: Approximately 39 × 57 × 58 mm.

Q: Can the GFS4470 scan barcodes from a mobile phone screen?
A: Suitability depends on the barcode, screen brightness, presentation conditions and scanner configuration. Testing with the intended application is recommended.

Q: Does it work with Windows or Android?
A: Operating-system compatibility depends on the host software, communication interface and integration method.

Q: Is the GFS4470 still available?
A: Availability must be confirmed for the exact part number. As an older model, it may have sourcing or product-lifecycle limitations.

Q: Can another Datalogic scanner replace the GFS4470?
A: A replacement may be possible, but mechanical, electrical, interface and software compatibility must be checked before ordering.

Q: Does NEOTECH® offer installation?
A: Installation or integration services are not included unless specifically agreed in writing.

Q: Can NEOTECH® supply multiple units?
A: Customers may request a quantity-based quotation, subject to verified supplier availability.

Q: What should I confirm before making payment?
A: Confirm the exact model, part number, interface, compatibility, quantity, price including VAT, availability, lead time, warranty, delivery and return conditions.

Disclaimer – NEOTECH® UAE

Product specifications are based on the existing GFS4470 product information and may vary according to the manufacturer part number, hardware revision and supplied configuration.

Actual barcode-reading performance depends on barcode quality, symbology, distance, presentation, environmental conditions and host-system integration.

The scanner's IP54 rating does not indicate waterproof construction.

NEOTECH® does not guarantee compatibility with a specific POS system, kiosk, operating system or application without appropriate verification.

Availability, warranty, delivery arrangements and commercial terms must be confirmed before order acceptance.

All manufacturer names and trademarks belong to their respective owners. NEOTECH® is an independent supplier and does not claim authorised Datalogic distributor status unless officially documented.

Last Updated: 16 October 2026 (UAE)
