Commercial Android All-in-One Touchscreen with Qualcomm Snapdragon QCS6490, 8GB RAM, 64GB Storage and Full HD Display Elo I-Series 5 E541463 22-Inch Android Touchscreen Computer

The Elo I-Series 5 E541463 is a commercial Android all-in-one touchscreen computer designed for retail, hospitality, self-service, digital signage and enterprise applications.
Featuring a 21.5-inch Full HD display, Qualcomm Snapdragon QCS6490 processor, 8GB RAM, 64GB storage and Android 14, it combines touchscreen interaction and computing in a single device.
The black E541463 configuration belongs to Elo's I-Series 5 Android product family. Its modular design supports compatible Elo Edge Connect peripherals and flexible installation options.
Unlike a standard touchscreen monitor, the E541463 includes its own Android computing hardware and does not require a separate PC for compatible standalone Android applications.

Key Features

• Brand: Elo
• Product Family: I-Series 5
• Exact Part Number: E541463
• Colour: Black
• Product Type: Android All-in-One Touchscreen Computer
• Display Size: 21.5-Inch Viewable, Marketed as 22-Inch
• Display Resolution: 1920 × 1080 Full HD
• Touch Technology: Elo TouchPro PCAP
• Touch Capability: 10-Point Multi-Touch
• Processor: Qualcomm Snapdragon QCS6490
• Memory: 8GB RAM
• Storage: 64GB
• Operating System: Android 14
• Google Services: Google Play Services
• Device Management: EloView Support
• Wireless Connectivity: Wi-Fi and Bluetooth 5.2
• Wired Networking: Gigabit Ethernet
• Camera: 8MP Autofocus
• Audio: Integrated Microphones and Speakers
• Peripheral Expansion: Elo Edge Connect
• Applications: Retail, Hospitality, Kiosks and Digital Signage

Technical Specifications

• Manufacturer: Elo Touch Solutions
• Model: I-Series 5, 22-Inch Android
• Manufacturer Part Number: E541463
• Housing Colour: Black
• Processor: Qualcomm Snapdragon QCS6490
• RAM: 8GB
• Internal Storage: 64GB
• Operating System: Android 14 with Google Play Services
• Display Type: Active-Matrix TFT LCD with LED Backlighting
• Viewable Diagonal: 21.5 Inches
• Aspect Ratio: 16:9
• Native Resolution: 1920 × 1080 at 60Hz
• Touchscreen: TouchPro Projected Capacitive
• Multi-Touch: Up to 10 Touch Points
• Typical Panel Brightness: 250 Nits
• Typical Brightness Through Touchscreen: 215 Nits
• Typical Contrast Ratio: 1000:1
• Typical Response Time: 14ms
• Viewing Angle: 178° Horizontal / 178° Vertical
• Display Colours: 16.7 Million
• Wireless LAN: IEEE 802.11a/b/g/n/ac/ax
• Bluetooth: Version 5.2
• Ethernet: Gigabit LAN
• USB: USB 3.0
• USB-C: Supported Output, Subject to Power Limits
• Memory Card: MicroSD Slot
• Additional Interface: GPIO
• Peripheral Ports: Four Elo Edge Connect Micro-USB Interfaces
• Camera: 8MP Autofocus
• Microphones: Two Integrated Digital Microphones
• Speakers: Two Integrated 1.5W Speakers
• Power Input: External AC Power Adapter
• AC Input: 100–240V, 50/60Hz
• Typical Operating Power Consumption: 15.2W
• Touch-Through Support: Subject to Supported Overlay Material and Thickness
• Mounting: Compatible Elo Mounting Solutions
• Accessories: Configuration and Quotation Dependent
• Warranty: Subject to Applicable Manufacturer Terms and Written Quotation

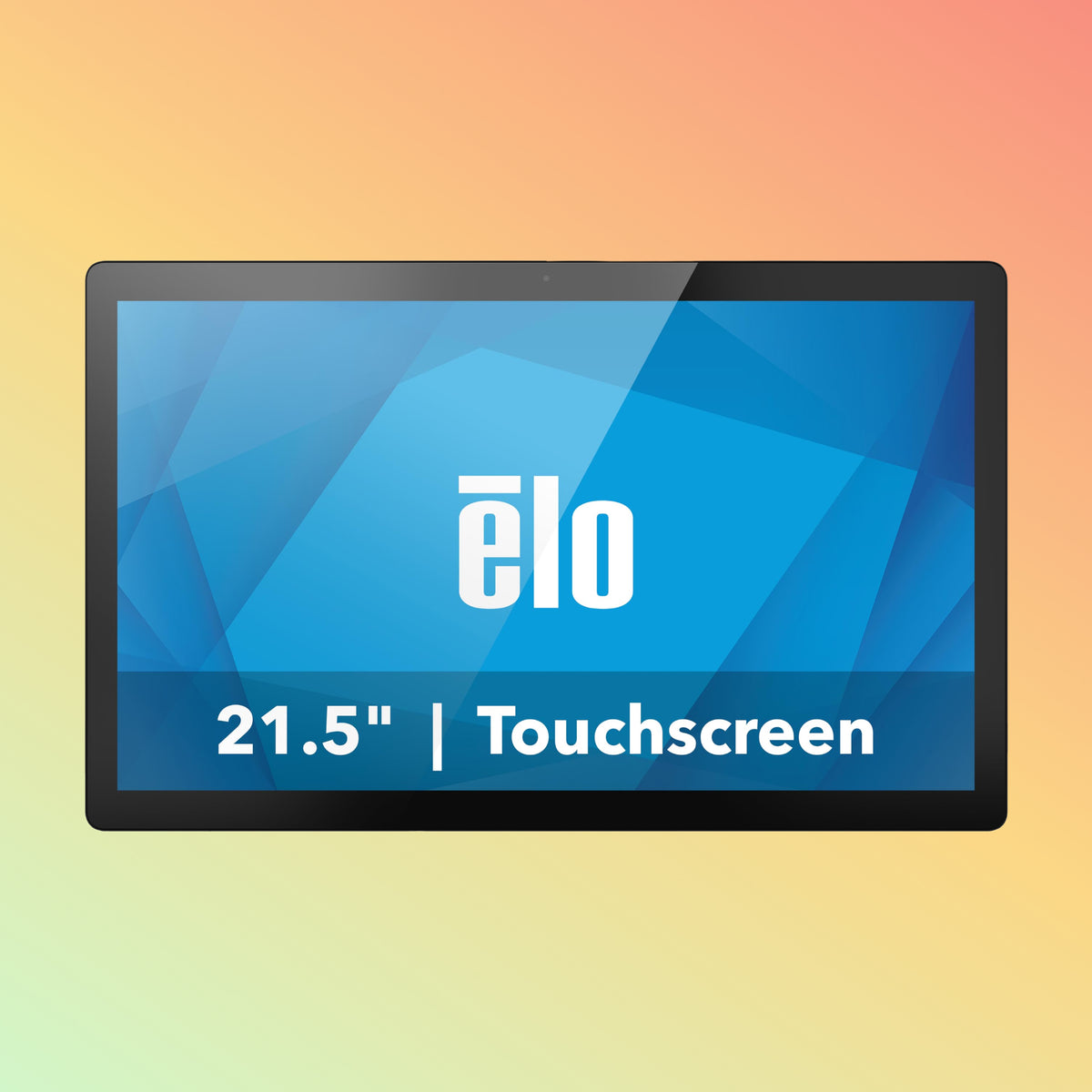

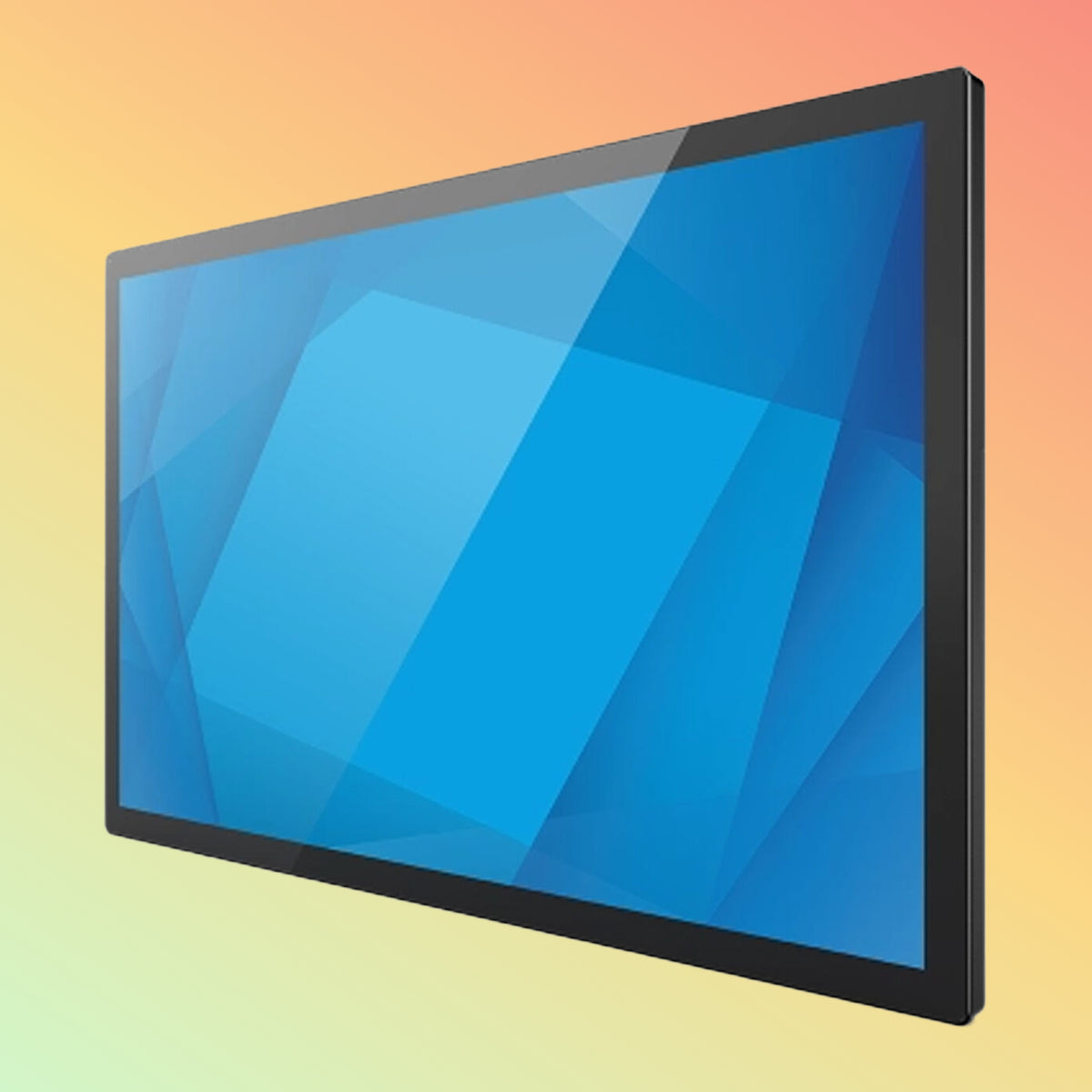

Full HD Touchscreen Display

The Elo I-Series 5 E541463 features a 21.5-inch Full HD touchscreen suitable for interactive commercial applications.

• 1920 × 1080 Resolution
• 16:9 Widescreen Format
• TouchPro PCAP Technology
• Up to 10 Simultaneous Touch Points
• Wide Viewing Angles
• Edge-to-Edge Glass Design
  The display can support interactive menus, ordering interfaces, product information and compatible Android applications.

Qualcomm Snapdragon Processing

The E541463 uses the Qualcomm Snapdragon QCS6490 computing platform.

• Qualcomm Enterprise Computing Platform
• 8GB RAM
• 64GB Internal Storage
• Android Application Support
• Integrated Touchscreen Computing
  Actual application performance depends on software requirements, workload and configuration.

Android 14 and Google Play Services

The Elo I-Series 5 operates on Android 14 with Google Play Services.

• Android 14 Operating System
• Google Play Services
• Compatible Android Applications
• Elo Enterprise Management Features
• EloView Support
  Future Android upgrades and extended operating-system services may require an applicable Elo OS 360 subscription. Upgrade availability and licensing should be verified before purchase.

EloView Device Management

EloView is Elo's platform for deploying and managing compatible commercial Android devices.

• Remote Device Management
• Application Deployment
• Content Management
• Device Configuration
• Enterprise Deployment Support
  Available functions, subscription requirements and licensing depend on the selected Elo services.

Elo Edge Connect Peripheral Support

The E541463 includes four Elo Edge Connect interfaces for compatible modular peripherals.

• Compatible Barcode Scanners
• Compatible Payment Accessories
• Compatible NFC Accessories
• Other Supported Elo Edge Connect Devices
  Peripheral compatibility and accessory availability must be confirmed by exact model and part number. Accessories are not automatically included.

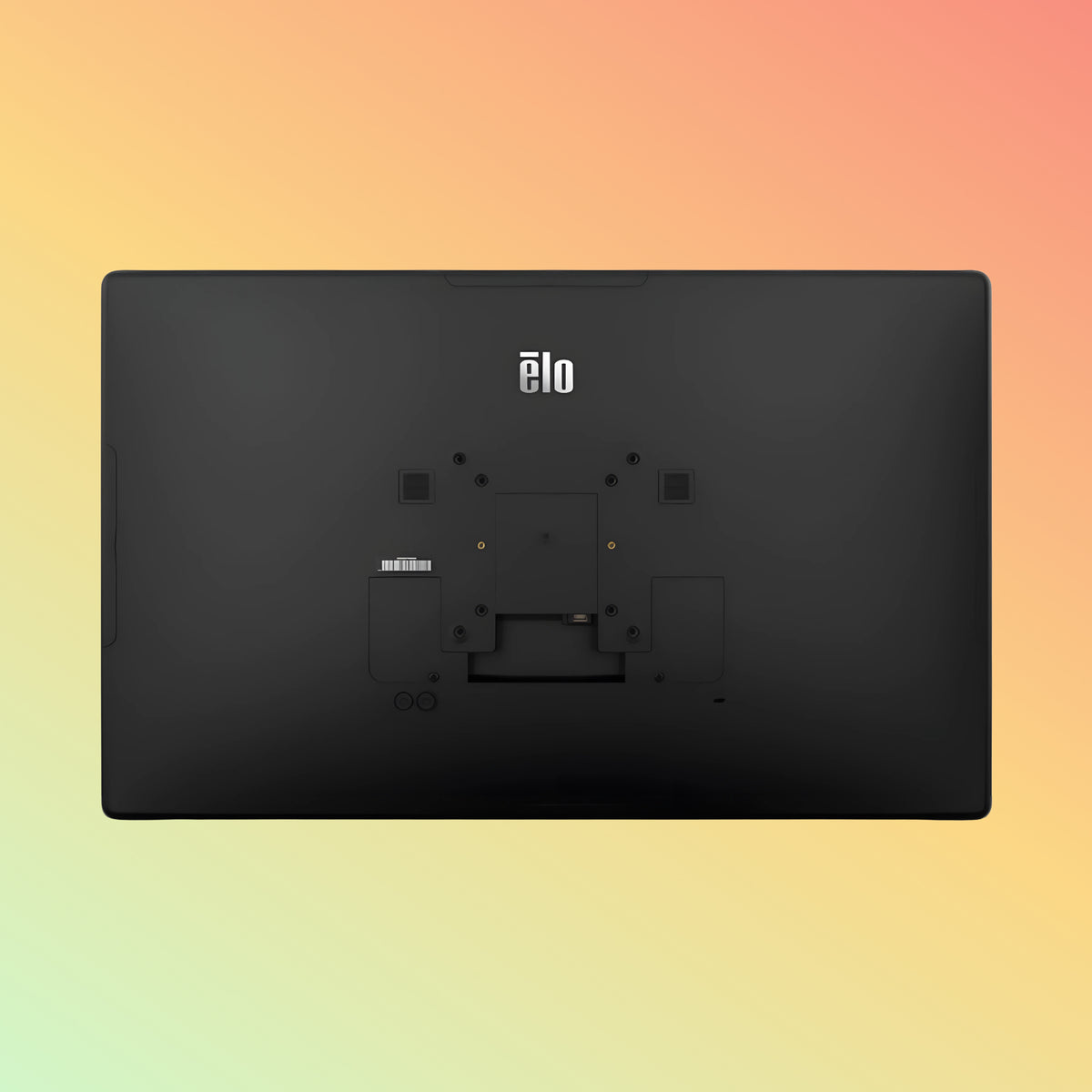

Connectivity and Interfaces

The Elo I-Series 5 supports wired and wireless connectivity for compatible business applications.

• Wi-Fi
• Bluetooth 5.2
• Gigabit Ethernet
• USB 3.0
• USB-C Output
• MicroSD Expansion
• GPIO
• Elo Edge Connect
  USB-C power-output capacity depends on the connected power adapter and supported device configuration.

Integrated Camera and Audio

The E541463 includes multimedia hardware for compatible commercial applications.

• 8MP Autofocus Camera
• Two Integrated Digital Microphones
• Two Integrated Speakers
• Compatible Video Communication Applications
• Interactive Customer Applications
  Camera use, privacy requirements and application permissions should be reviewed before deployment.

Applications

• Retail POS Applications
• Self-Service Ordering
• Restaurant Ordering Stations
• Hospitality Check-In
• Interactive Digital Signage
• Customer Information Kiosks
• Product Information Displays
• Queue Management
• Enterprise Workstations
• Visitor Registration
• Interactive Catalogues
• Commercial Android Applications

Purpose of Use

The Elo I-Series 5 E541463 provides a touchscreen display and Android computer in one commercial device.
It may be used as a standalone Android workstation, interactive display or the computing platform for a compatible self-service installation.
The device does not automatically include POS software, payment processing, kiosk enclosure, receipt printer, scanner or integration services.

Compatibility

Before ordering, customers should verify:

• Required Android Application
• Android 14 Compatibility
• Google Play Services Requirements
• EloView Licensing
• Network Connectivity
• Peripheral Compatibility
• Payment Device Requirements
• Barcode Scanner Requirements
• NFC Requirements
• Mounting Arrangement
• Power Adapter Requirements
• UAE Installation Environment
• Software Deployment and Support Responsibilities

Things to Verify Before Ordering

• Exact Part Number: E541463
• Colour: Black
• Display: 21.5-Inch Full HD
• Operating System: Android 14
• Processor: Qualcomm QCS6490
• Memory: 8GB
• Storage: 64GB
• Application Compatibility: Confirm
• EloView Subscription: Confirm Requirements
• Edge Connect Accessories: Specify
• Mounting Accessories: Specify
• Power Supply: Confirm Included Configuration
• Warranty: Confirm Applicable Terms
• Stock Availability: Subject to Confirmation
• Quantity: Specify
• Delivery Location: UAE

Who Should Consider This Product?

The Elo I-Series 5 E541463 may be suitable for businesses requiring:

• Commercial Android Touchscreen Computers
• Interactive Customer Displays
• Retail and Hospitality Touchscreen Systems
• Self-Service Applications
• Enterprise Android Workstations
• Modular Peripheral Connectivity
• Centralized Device Management
• Full HD Interactive Displays
  Customers requiring Windows-specific software should consider a compatible Windows touchscreen computer instead.

Why NEOTECH® UAE?

NEOTECH® encourages customers to select touchscreen computers according to their actual software, display, connectivity and peripheral requirements.
The Elo I-Series 5 family includes different screen sizes and configurations. The E541463 specifically identifies the black 22-inch Android model.
We recommend verifying application compatibility and accessory requirements before purchasing.
Learn First. Decide Second. Buy Only If It Is Right for Your Needs.
There is absolutely no obligation or pressure to proceed with the purchase with us.

Delivery – UAE

NEOTECH® supplies within the United Arab Emirates only.

• Standard Shipping: Free for applicable orders
• Order Cut-Off: 14:00 GST
• Handling: 1–2 business days for applicable available stock
• Standard Transit: 3–5 business days
• Estimated Standard Delivery: 4–7 business days for applicable available stock
  For special-order or internationally sourced configurations, availability and lead time will be confirmed in the written quotation before order acceptance.

FAQ - Elo I-Series 5 E541463

Q: What is Elo E541463?
A: It is the black 22-inch Elo I-Series 5 Android all-in-one touchscreen computer.
Q: What is the actual display size?
A: The viewable diagonal is 21.5 inches, commercially described as 22 inches.
Q: What operating system does it use?
A: Android 14 with Google Play Services.
Q: What processor does it have?
A: Qualcomm Snapdragon QCS6490.
Q: How much RAM and storage does it include?
A: 8GB RAM and 64GB internal storage.
Q: What is the screen resolution?
A: Full HD, 1920 × 1080.
Q: Does it support multi-touch?
A: Yes. It uses Elo TouchPro projected-capacitive technology with up to 10 touch points.
Q: Is it a standalone computer or only a monitor?
A: It is an Android all-in-one touchscreen computer with integrated processing hardware.
Q: Does it support Wi-Fi and Bluetooth?
A: Yes. It supports Wi-Fi and Bluetooth 5.2.
Q: Does it have Ethernet?
A: Yes. Gigabit Ethernet is supported.
Q: Does it include a camera?
A: Yes. It includes an 8MP autofocus camera.
Q: Can it be used for POS applications?
A: Yes, where the selected POS software and required peripherals are compatible with its Android platform.
Q: Does it include payment software?
A: No payment software or merchant-processing service should be assumed to be included.
Q: What is Elo Edge Connect?
A: It is Elo's modular interface system for connecting supported peripherals.
Q: Does it include a barcode scanner?
A: An integrated barcode scanner is not part of the standard configuration described here. Compatible accessories may be available separately.
Q: Does it support EloView?
A: Yes. EloView provides supported content deployment and device-management functions, subject to applicable service terms.
Q: Can Android be upgraded?
A: Elo offers upgrade pathways through its OS 360 program. Eligibility, supported versions and subscription terms should be verified.
Q: Is the white model the same part number?
A: No. The white 22-inch configuration is identified separately as E541651.
Q: Does NEOTECH® provide installation and software integration?
A: Hardware supply does not automatically include installation, software development or system integration. Any additional services must be separately agreed in writing.
