Rugged Windows Computing for Industrial, Field and Mobile Workflows.

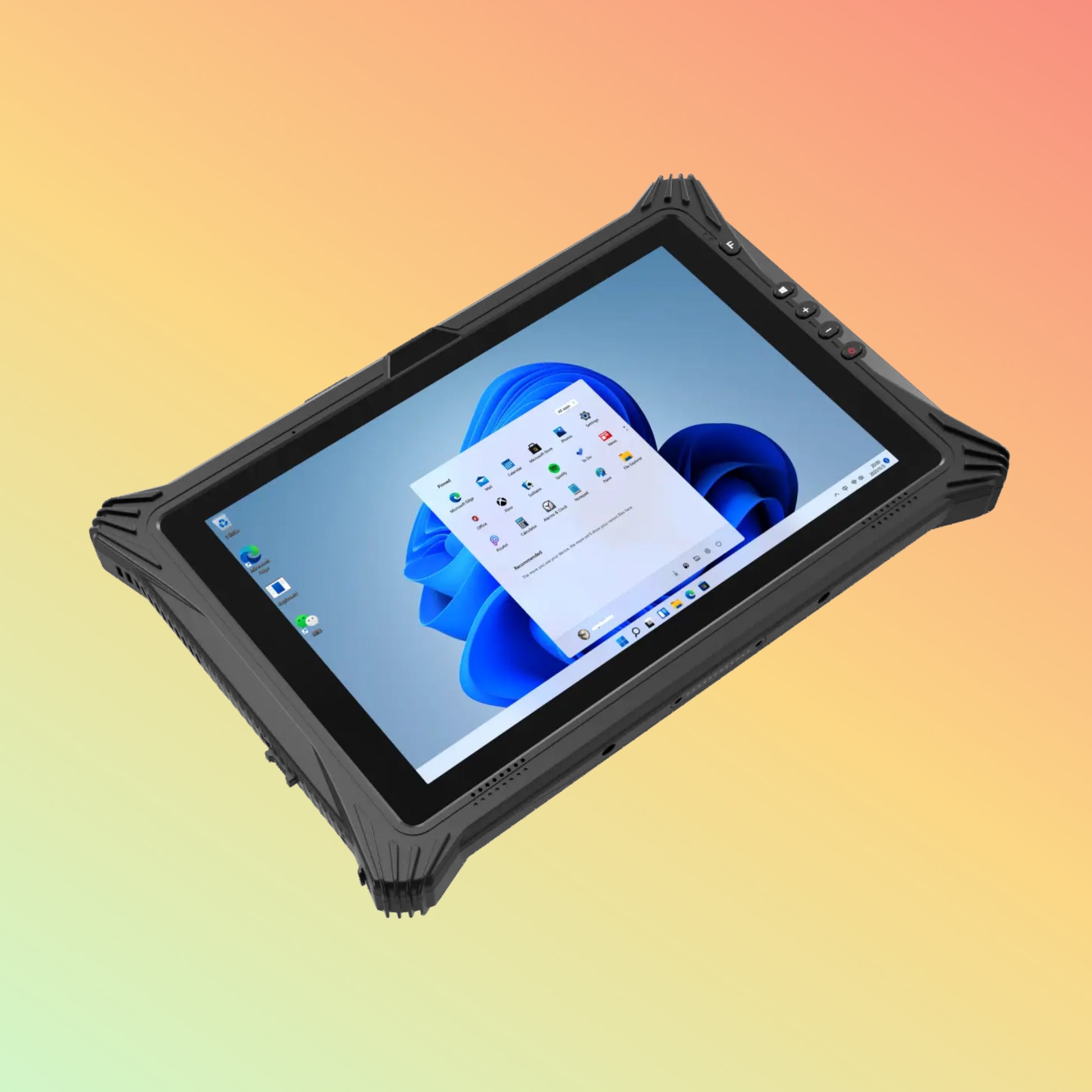

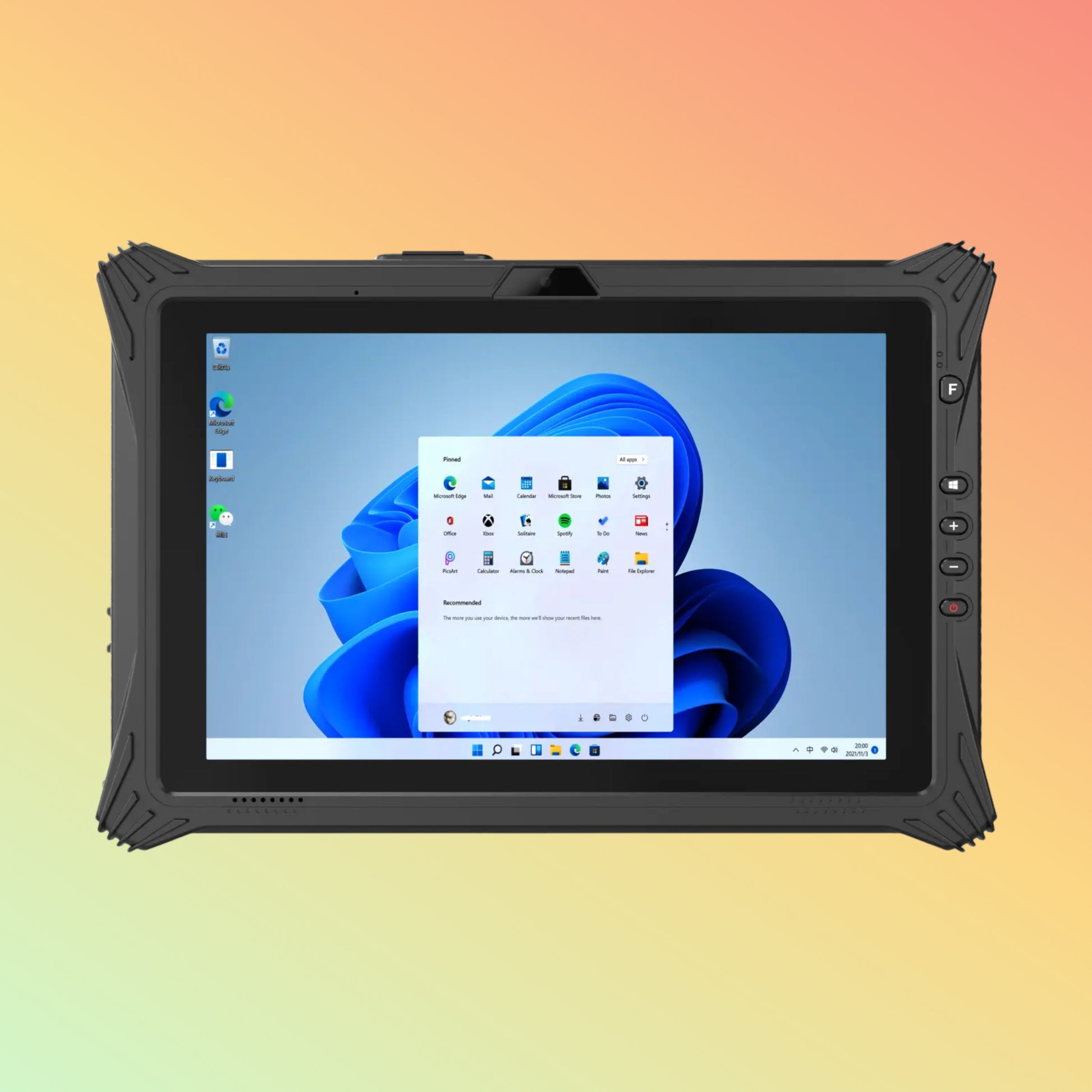

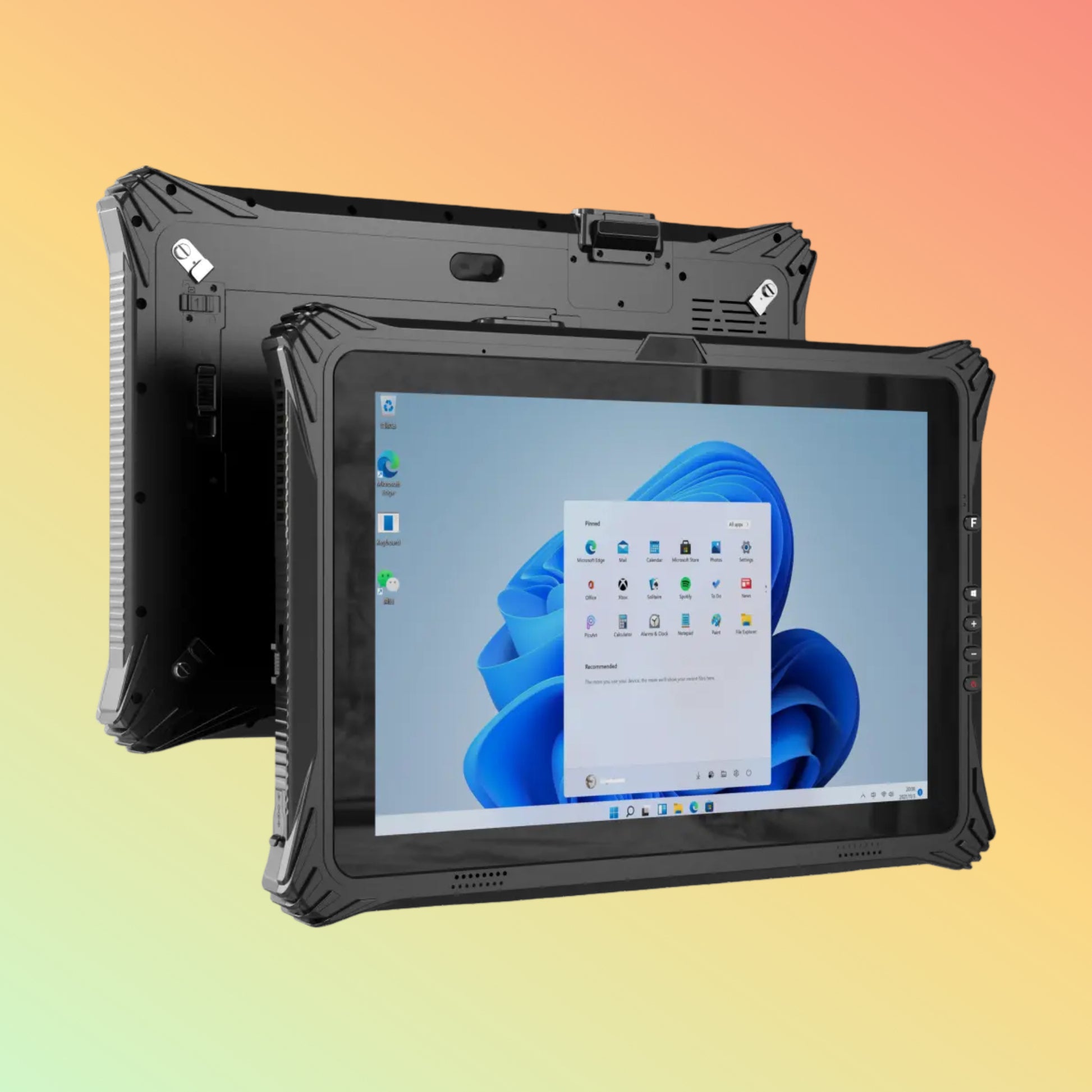

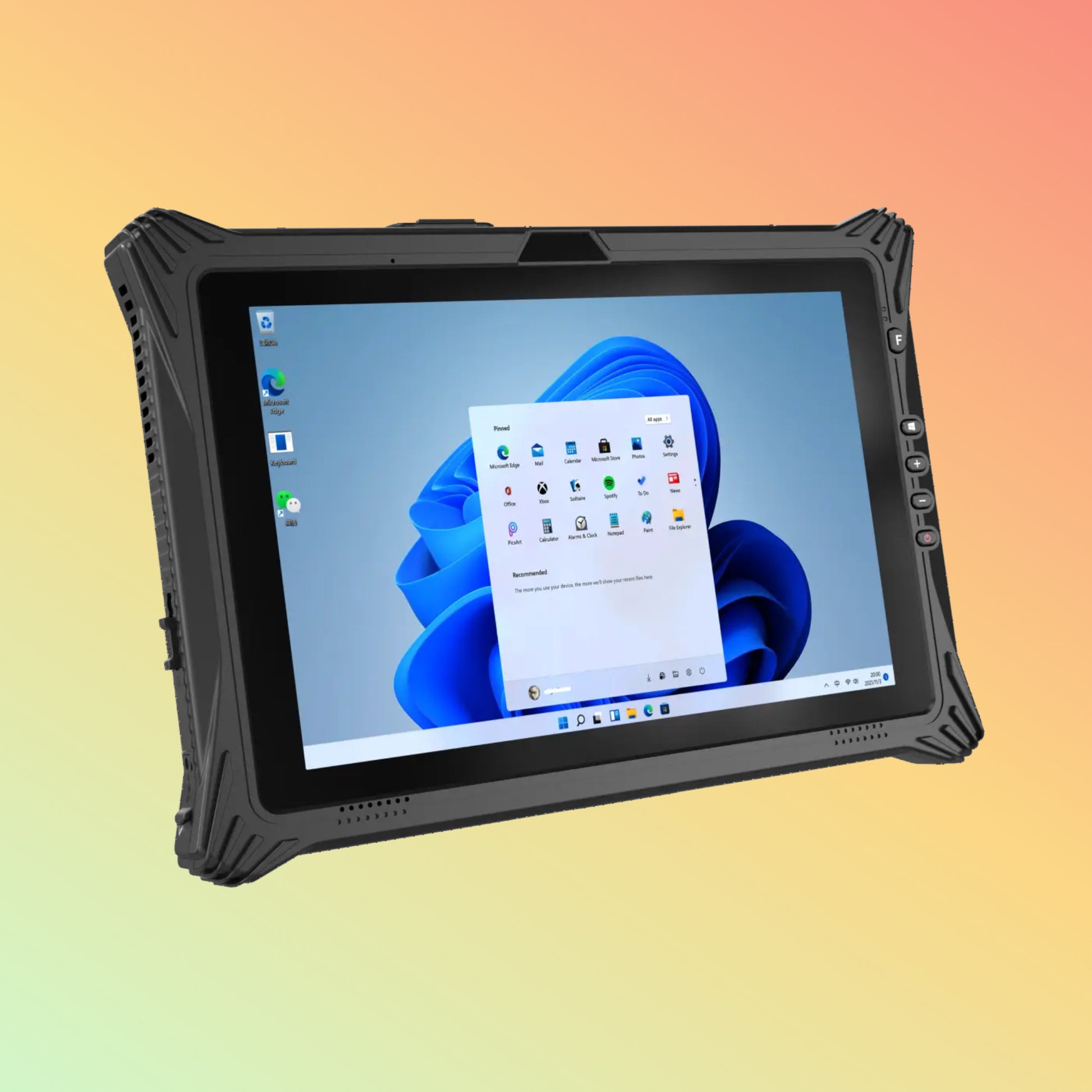

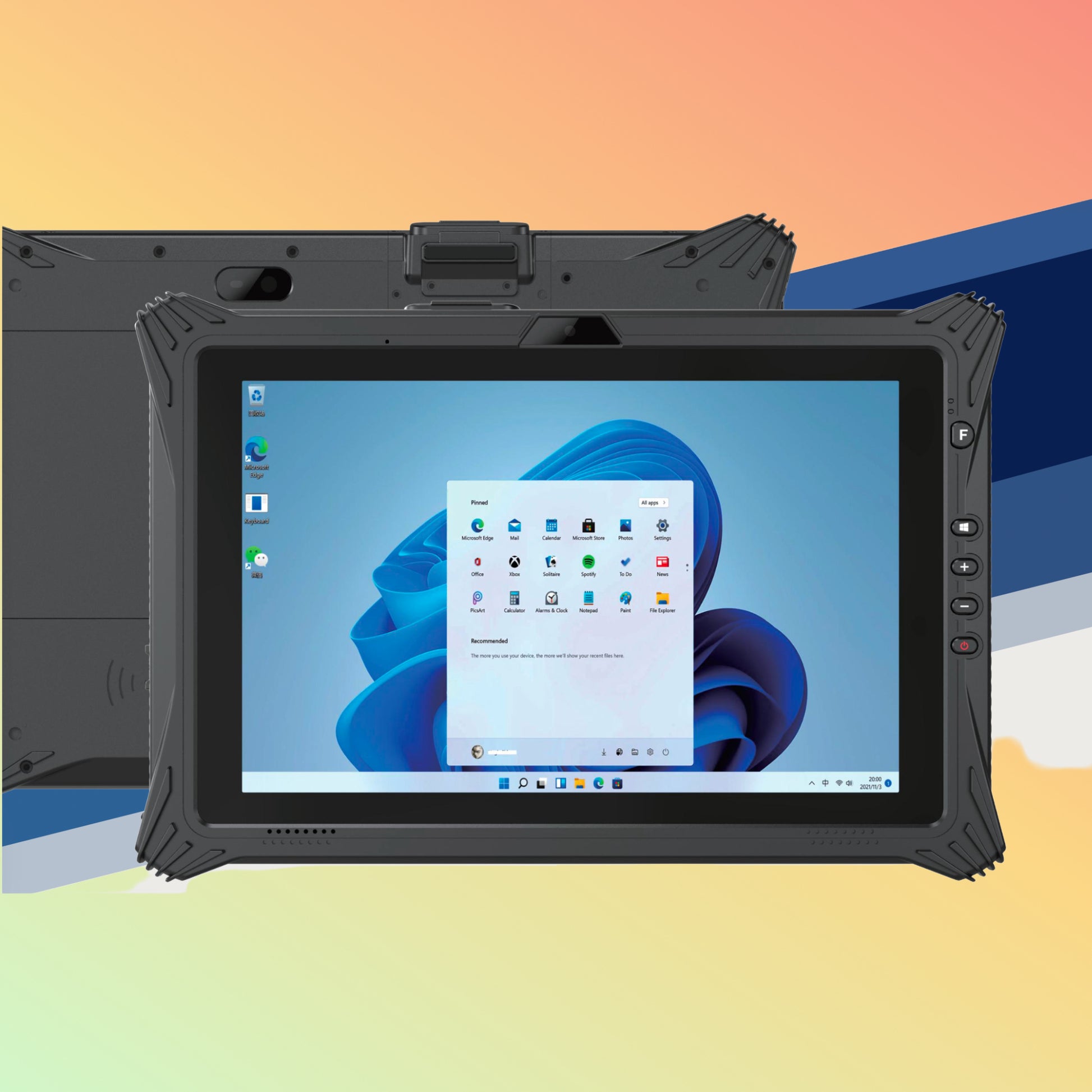

EMDOOR EM-I10A Rugged Windows Tablet The EMDOOR EM-I10A is a 10.1-inch rugged Windows tablet designed for industrial, field-service and mobile-computing environments where a standard consumer tablet may not provide the required protection, interfaces or configuration flexibility.

The current EMDOOR platform supports 12th Generation Intel Core i5-1235U or Intel Core i7-1255U processors, a 10.1-inch 1200 × 1920 IPS touchscreen, Wi-Fi 6, Bluetooth 5.1 and optional mobile-data and data-capture modules.

It can be considered for manufacturing, maintenance, logistics, inspection, utilities, field service and other applications that require Windows-based software outside a conventional office environment.

Overview

Field teams often need access to desktop-class Windows applications while working around machinery, vehicles, warehouses or outdoor locations.

The EM-I10A is designed around that requirement by combining:

• Windows operating-system support
• Intel Core processing
• Rugged enclosure
• Outdoor-viewable touchscreen
• Wireless communication
• GNSS positioning
• Expandable industrial interfaces
• Optional barcode scanning

The tablet can therefore serve as a mobile workstation for inspection records, diagnostic tools, digital forms, technical drawings, ERP access and operational data collection.

Key Features

• 10.1-inch rugged tablet computer
• 12th Gen Intel Core i5-1235U / i7-1255U options
• Windows 11 support
• 1200 × 1920 IPS display
• Up to 700 nits brightness
• 10-point capacitive touchscreen
• Wi-Fi 6
• Bluetooth 5.1
• Optional 4G LTE
• GPS / GLONASS with optional BeiDou
• IP65-rated enclosure
• MIL-STD-810H listed on EMDOOR’s current product page
• 1.22 m drop specification
• USB Type-A and USB Type-C
• Mini HDMI
• 12-pin pogo interface
• Optional NFC
• Optional 2D barcode scanner
• Optional RJ45 / RS232 / USB expansion modules

EMDOOR states that the exact module set depends on configuration.

Processor Options

Intel Core i5-1235U

Suitable for many field and industrial applications that require Windows software, web applications, diagnostics, document handling or standard enterprise workloads.

Intel Core i7-1255U

May be preferable where applications require additional processing headroom, more demanding local software or heavier multitasking.

The correct processor should be selected according to the software requirements rather than assuming the higher model is always necessary.

Display for Field Use

The EM-I10A uses a 10.1-inch IPS panel with:

Resolution: 1200 × 1920
Aspect Ratio: 16:10
Brightness: Up to 700 nits
Touch: 10-point capacitive

This display specification makes it more suitable for field use than a typical low-brightness office tablet, although visibility still depends on direct sunlight, reflections, screen settings and operating conditions.

Technical Specifications

Brand: EMDOOR

Model: EM-I10A

Product Type: Rugged Windows Tablet PC

Processor Options: Intel Core i5-1235U / Intel Core i7-1255U

Graphics: Intel Iris Xe eligible, depending on processor/configuration

Operating System: Windows 11; Home, Pro or IoT variants depending on configuration

Display: 10.1-inch IPS

Resolution: 1200 × 1920

Brightness: Up to 700 nits

Touch: 10-point capacitive touch

Memory: Current EMDOOR page lists 16GB as a configuration and support for higher capacities on selected builds

Storage: Current documentation lists 128GB as a base configuration and expandable SSD options on selected builds

Front Camera: 2MP

Rear Camera: 8MP

Wi-Fi: Wi-Fi 6, dual band 2.4GHz / 5.8GHz

Bluetooth: Bluetooth 5.1

Mobile Data: Optional 4G LTE

GNSS: GPS / GLONASS, optional BeiDou

USB: USB Type-A + USB Type-C

Video Output: Mini HDMI

Expansion: 12-pin pogo interface

Audio: 3.5 mm headset jack

SIM: Supported on applicable cellular configurations

MicroSD / TF: Supported

NFC: Optional

2D Barcode Scanner: Optional

Fingerprint Reader: Listed on current configuration

Ingress Protection: IP65

Drop Specification: 1.22 m

Dimensions: Approximately 289.9 × 196.7 × 27.4 mm

Weight: Approximately 1.23 kg

Power Adapter: 19V / 3.42A output

Specifications should be confirmed for the exact production SKU because EMDOOR explicitly notes that web specifications can lag behind current supply parameters.

Expandable Industrial Interfaces

One of the more useful aspects of the EM-I10A is its modular expansion approach.

EMDOOR documentation lists selectable modules such as:

• RJ45 Gigabit Ethernet
• DB9 RS232 serial
• USB 2.0
• 2D barcode scanner

The documentation describes this as a “choose 1 from 4” module concept for applicable builds.

This can be valuable for industrial deployments where legacy equipment, machine interfaces or wired networking still matter.

Barcode Scanning Option

A 2D scan module is available as an option.

This can support workflows such as:

• Asset identification
• Inventory control
• Warehouse picking
• Field service
• Equipment inspection
• Manufacturing traceability

The exact scan engine, supported symbologies and reading distance should be confirmed before ordering.

Connectivity

The EM-I10A can support:

• Wi-Fi 6
• Bluetooth 5.1
• Optional 4G LTE
• GPS / GLONASS
• Optional BeiDou
• USB
• Optional Ethernet
• Optional serial communication

This allows the tablet to be used in both modern wireless environments and facilities that still depend on wired or serial-connected equipment.

Rugged Design

The current EMDOOR product page lists:

• IP65 certification
• MIL-STD-810H
• 1.22 m drop resistance
• Operating temperature from approximately -20°C to 60°C
• Storage temperature from approximately -30°C to 70°C

These ratings describe tested conditions and should not be interpreted as protection from every possible impact, liquid exposure or environmental hazard.

Battery & Power

EMDOOR lists a 5000mAh / 7.4V battery on the current product page, with a stated runtime figure of approximately 4.5 hours under a defined test scenario.

Runtime varies significantly with:

• Screen brightness
• CPU load
• 4G usage
• Wi-Fi activity
• Scanner use
• Connected accessories
• Operating temperature
• Application workload

Therefore, battery runtime should be treated as a test-condition reference rather than a guaranteed field result.

Typical Applications

The EM-I10A may be suitable for:

• Industrial maintenance
• Field service
• Manufacturing
• Warehouse supervision
• Utilities
• Vehicle diagnostics
• Asset inspection
• Construction
• Technical documentation
• Logistics
• Outdoor operations
• Equipment commissioning
• Mobile data collection

Manufacturing Use

In manufacturing environments, the tablet can potentially support:

• Work-order access
• Equipment diagnostics
• Production records
• Digital inspection forms
• ERP/MES access
• Barcode data capture
• Machine-side documentation

The required ports and modules should be selected around the installed equipment.

Field Service & Maintenance

The Windows platform can be useful where technicians already rely on desktop applications for:

• Diagnostics
• Service manuals
• Inspection reports
• Configuration tools
• Customer records
• Asset databases

Optional mobile data and GNSS can further support work away from fixed networks.

Vehicle & Mobile Deployment

EMDOOR lists accessories including:

• Hand strap
• Carry handle
• Vehicle mount
• Docking charger
• Removable battery options
• Multi-battery charging options

Accessory availability should be confirmed for the exact configuration.

Things to Verify Before Ordering

Please confirm:

• Intel Core i5 or i7 requirement
• Windows edition
• RAM requirement
• SSD capacity
• 4G requirement
• SIM bands for UAE use
• GNSS requirements
• NFC requirement
• Barcode scanner requirement
• RJ45 requirement
• RS232 requirement
• USB expansion requirement
• Docking requirement
• Vehicle mount requirement
• Battery configuration
• Power adapter
• Required operating temperature
• Application compatibility

Because this product is highly configurable, the exact quotation configuration matters more than the model name alone.

Purpose of Use

The EMDOOR EM-I10A is intended for organisations that need Windows-based computing in field or industrial environments where a more protected chassis, additional interfaces or specialised accessories may be required.

A typical deployment might be:

Field Worker → EM-I10A → Wi-Fi / 4G → Enterprise Application → ERP / Maintenance / Inspection System

Optional barcode scanning, GNSS and industrial ports can be added according to the workflow.

Why Choose NEOTECH® UAE

NEOTECH® helps customers evaluate rugged tablets based on the actual application rather than headline specifications alone.

We can assist with:

• Processor selection
• Windows configuration
• Memory and storage requirements
• 4G and GNSS requirements
• Barcode scanning options
• RJ45 / RS232 interface needs
• Docking and vehicle accessories
• Field deployment planning
• UAE availability confirmation

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

UAE Delivery

NEOTECH® supplies within the United Arab Emirates.

Standard Shipping: Free
Order Cut-Off: 2:00 PM GST
Handling: 1–2 business days
Transit: 3–5 business days
Estimated Delivery: 4–7 business days

Special configurations may require additional lead time.

FAQ - EMDOOR EM-I10A

Q: What processors are available for the EMDOOR EM-I10A?
A: EMDOOR currently lists 12th Generation Intel Core i5-1235U and i7-1255U processor options for the EM-I10A.

Q: Does the EM-I10A include 4G and a barcode scanner as standard?
A: Not necessarily. EMDOOR lists 4G, NFC and 2D scanning as configuration-dependent or optional features. The exact SKU should be confirmed before ordering.

Q: Is the EM-I10A waterproof?
A: It should not be described as waterproof. EMDOOR lists an IP65 ingress-protection rating, which indicates tested resistance to dust and water under defined conditions. It does not mean the tablet is suitable for immersion or every wet environment.
