Hands-Free 1D & 2D Barcode Reading for Retail Checkout, Kiosks and Counter Applications.

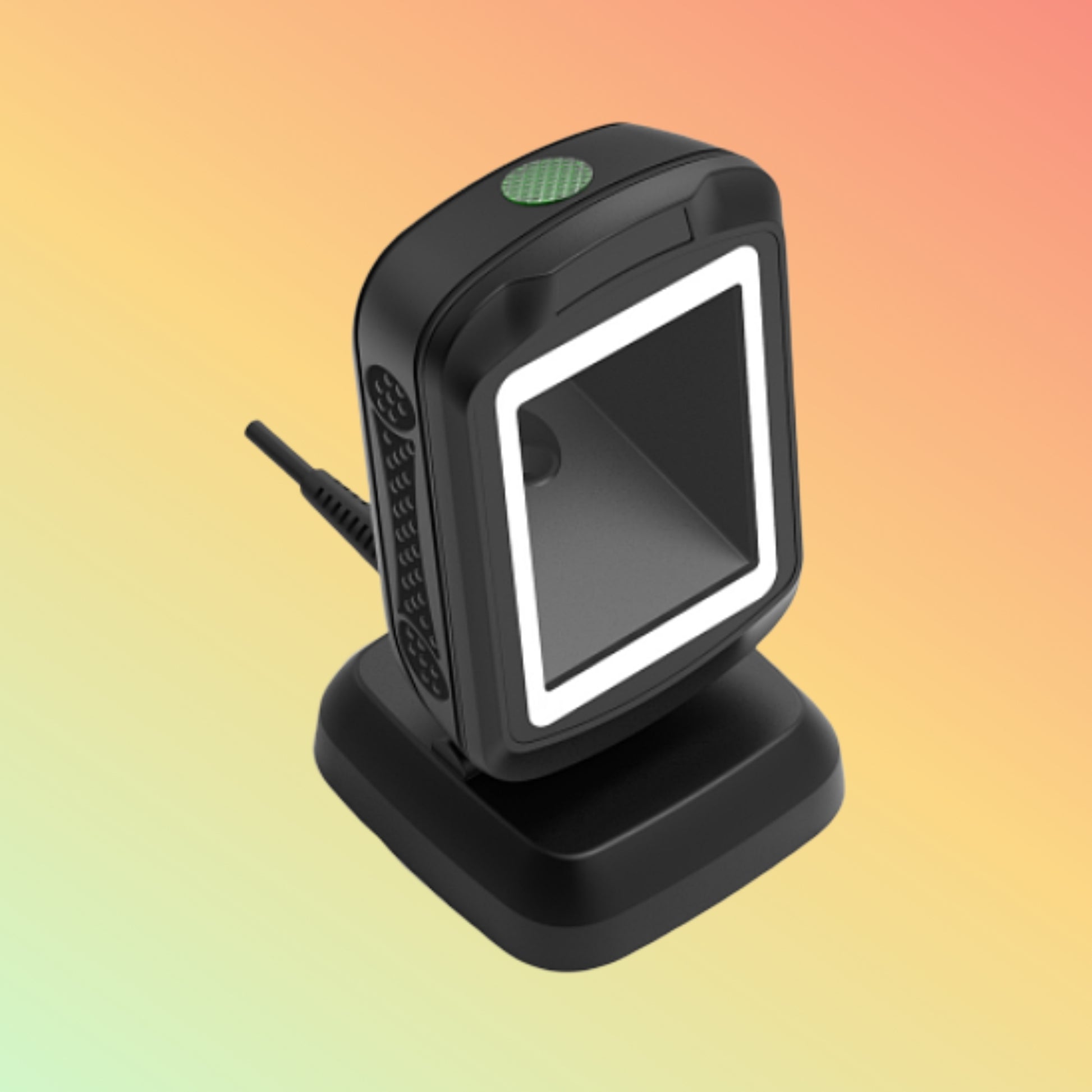

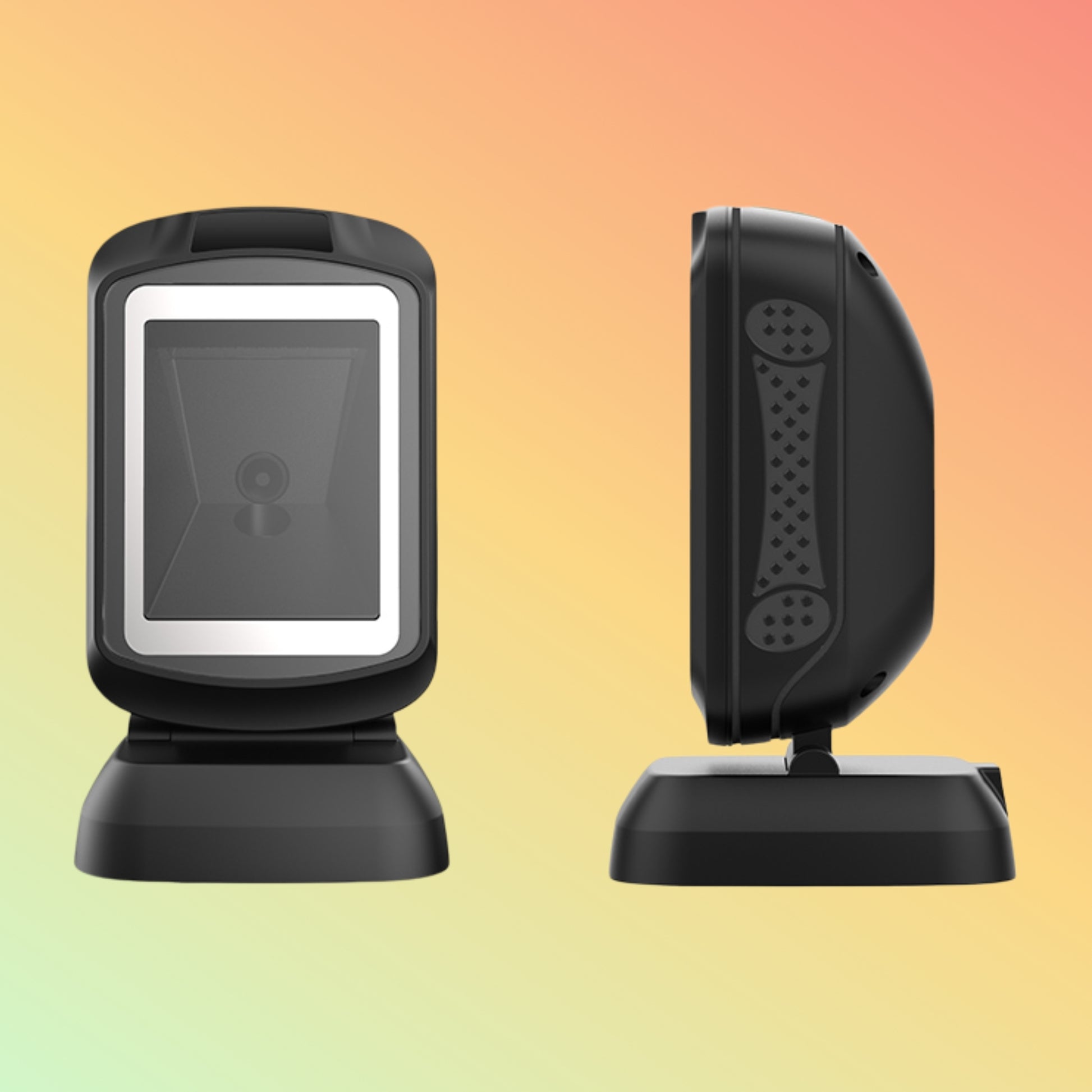

GT-9208 / PT-R9208 Desktop 1D & 2D Barcode Scanner The GT-9208 is a fixed desktop 2D imaging scanner designed for hands-free barcode capture at retail counters, kiosks, reception points and other stationary scanning locations.

It uses a 1600 × 900 planar CMOS imaging sensor and supports common 1D and 2D barcode formats, including QR Code, Data Matrix, PDF417 and Aztec.

USB is the standard documented interface, while RS-232 can be configured on applicable versions.

Original / documented model: GT-9208
OEM / alternate reference: PT-R9208

PT-R9208 is retained on this page as an OEM or alternate reference for search and replacement purposes. The exact product label or supplier documentation should be checked before ordering.

Overview

The GT-9208 is designed around a presentation-style scanning workflow.

Instead of repeatedly lifting and aiming a handheld scanner, the operator can present a supported barcode within the reader's field of view.

This makes the platform relevant for environments such as:

• Retail checkout
• Supermarkets
• Convenience stores
• Kiosks
• Reception counters
• Ticket and voucher scanning
• Membership-code reading
• Product identification
• Service counters
• Selected document or invoice barcode workflows

The scanner captures barcode data only. Any POS, invoice, payment, validation or database function is performed by the connected software.

Key Features

• Desktop omnidirectional 1D/2D barcode scanner
• Planar CMOS imaging sensor
• 1600 × 900 image resolution
• 32-bit ARM MCU + DSP processor
• USB interface
• RS-232 available as a customised option
• Automatic sensing
• Reads supported barcodes from paper and compatible electronic screens
• QR Code support
• Data Matrix support
• PDF417 support
• Aztec support
• Common 1D barcode support
• 4 mil Code 39 documented resolution
• Motion tolerance up to 3.24 m/sec under specified test conditions
• LED and buzzer scan indication
• Configurable 1D-only / 1D+2D scanning mode
• IP52-rated enclosure
• Multilingual keyboard-output settings
• Prefix/suffix and data-formatting functions on documented configurations

1600 × 900 CMOS Imaging Platform

The GT-9208 uses a planar CMOS sensor with 1600 × 900 pixels.

Unlike a traditional single-line laser scanner, an area imager captures an image of the barcode and processes the symbol digitally.

This allows the GT-9208 to read both:

• Conventional 1D barcodes
• Supported 2D symbols

The image-based design is also relevant where codes are displayed electronically rather than only printed on paper.

Hands-Free Counter Scanning

The desktop form factor is intended for stationary scanning.

A typical checkout workflow can be:

Product / Code → GT-9208 → USB → POS or Business Application

The scanner reads the encoded information and sends the decoded data to the connected application.

It does not independently:

• Calculate prices
• Manage stock
• Approve payments
• Validate invoices
• Maintain customer records

Those functions belong to the host software.

Read Barcodes from Paper & Electronic Screens

The GT-9208 imaging platform can be considered for reading supported barcodes from media such as:

• Printed product labels
• Packaging
• Paper documents
• Receipts containing barcodes
• Smartphone screens
• Tablet screens
• Customer QR codes
• Electronic tickets or vouchers

Actual screen-reading performance can vary according to:

• Screen brightness
• Barcode size
• Contrast
• Reflections
• Viewing angle
• Barcode quality

Supported 1D Barcode Formats

Documented GT-9208 symbologies include formats such as:

• UPC-A
• UPC-E
• EAN-8
• EAN-13
• Code 39
• Code 39 Full ASCII
• Code 93
• Code 128
• GS1-128
• Code 11
• Interleaved 2 of 5
• Standard 2 of 5
• Matrix 2 of 5
• Codabar
• RSS / GS1 DataBar

Specialised barcode requirements should be verified before deployment.

Supported 2D Barcode Formats

Documented 2D support includes:

• QR Code
• Micro QR
• Data Matrix
• PDF417
• Aztec

The scanner can therefore be considered for applications involving both conventional product barcodes and modern 2D codes.

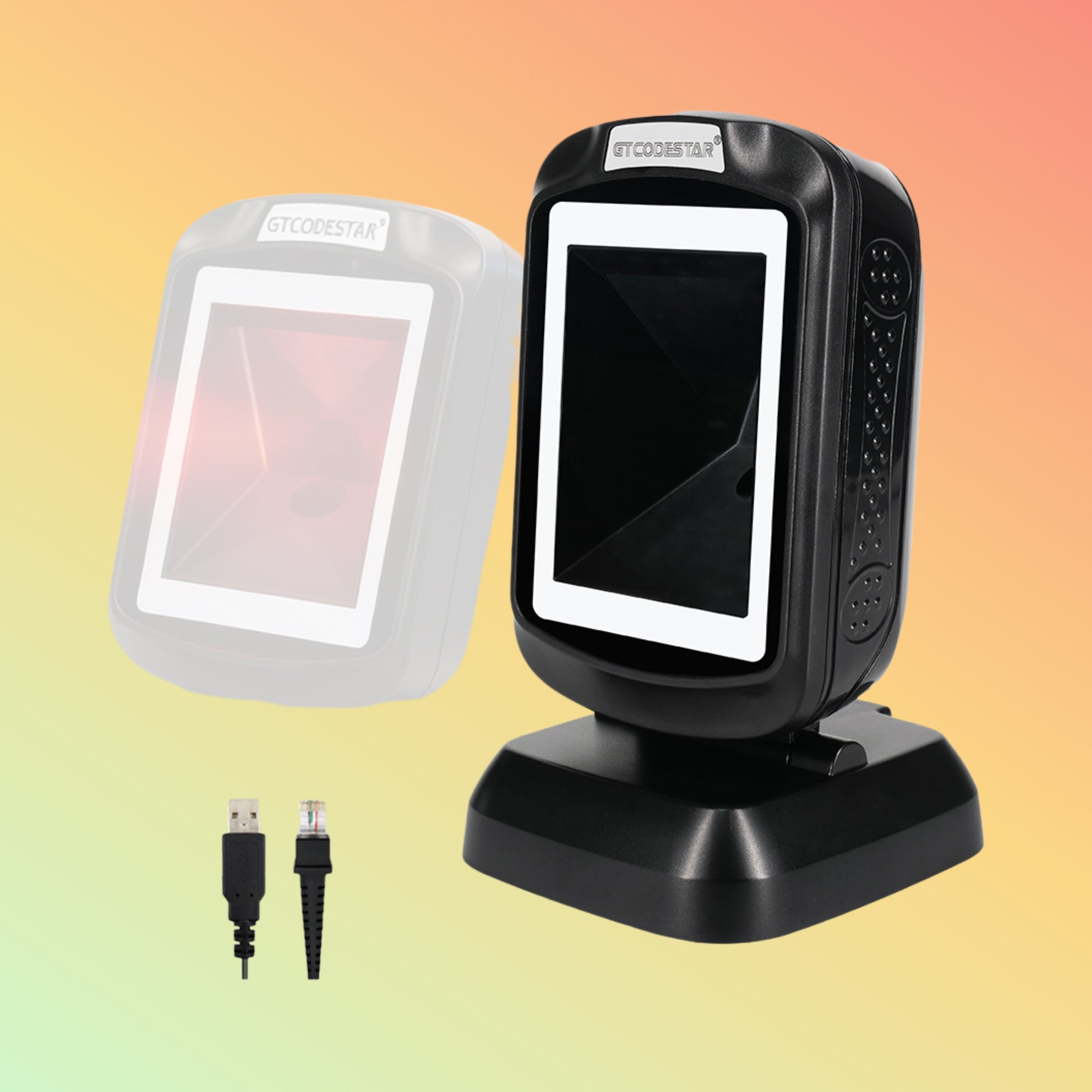

USB Connectivity

USB is the standard documented GT-9208 interface.

This can be useful for connecting the scanner to compatible:

• POS terminals
• Desktop computers
• Kiosk systems
• Android-based commercial systems
• Business workstations

The host system and software must support the required scanner input method.

USB connectivity alone should not be interpreted as universal software compatibility.

Optional RS-232

Manufacturer specifications identify RS-232 as a customisable interface option.

This may be relevant for:

• Legacy POS systems
• Industrial terminals
• Kiosks
• Specialised control systems

Customers requiring RS-232 should confirm that the exact supplied GT-9208/PT-R9208 configuration includes it.

Auto-Sensing Operation

The scanner is documented with automatic sensing.

In an appropriate setup, this allows a barcode to be presented to the scanner without requiring a handheld trigger for each scan.

Potential benefits are primarily ergonomic and workflow-related in fixed counter environments.

The scanner should be positioned according to the barcode size, working distance and surrounding lighting.

Selectable 1D / 2D Mode

GT-9208 documentation describes a control mode that can switch between:

Mode 1: 1D + 2D scanning
Mode 2: 1D-only scanning

This may be useful in applications where operators want to restrict accidental reading of 2D codes.

Exact behaviour can depend on firmware/configuration.

Invoice Function – Important Clarification

Supplier/manufacturer-channel documentation for the GT-9208 lists:

Invoice Function: Support

However, the available specification does not clearly define this as OCR, invoice-field extraction, invoice accounting or automatic document recognition.

For accurate product representation, NEOTECH® therefore treats it as a documented scanner feature whose exact behaviour should be confirmed against the required application before purchase.

Do not assume that the GT-9208 independently understands invoice content or accounting data.

If your application uses a barcode or QR code printed on an invoice, the scanner can read the supported barcode and transfer that data to compatible software.

Barcode Data Editing

Documented GT-9208 functions include configurable data-output behaviour.

Depending on firmware and configuration, this may include:

• Prefix insertion
• Suffix insertion
• Character handling
• Keyboard-language selection
• Output formatting

These features can be helpful where scanned barcode data must match a particular POS or business application input format.

Configuration should be tested with the actual software before wider deployment.

Technical Specifications

Original Model: GT-9208

OEM / Alternate Reference: PT-R9208

Brand Reference: GTCODESTAR for documented GT-9208

Product Type: Desktop Omnidirectional 1D/2D Barcode Scanner

Scan Technology: Planar CMOS Area Imager

Sensor Resolution: 1600 × 900

Processor: 32-bit ARM MCU + DSP

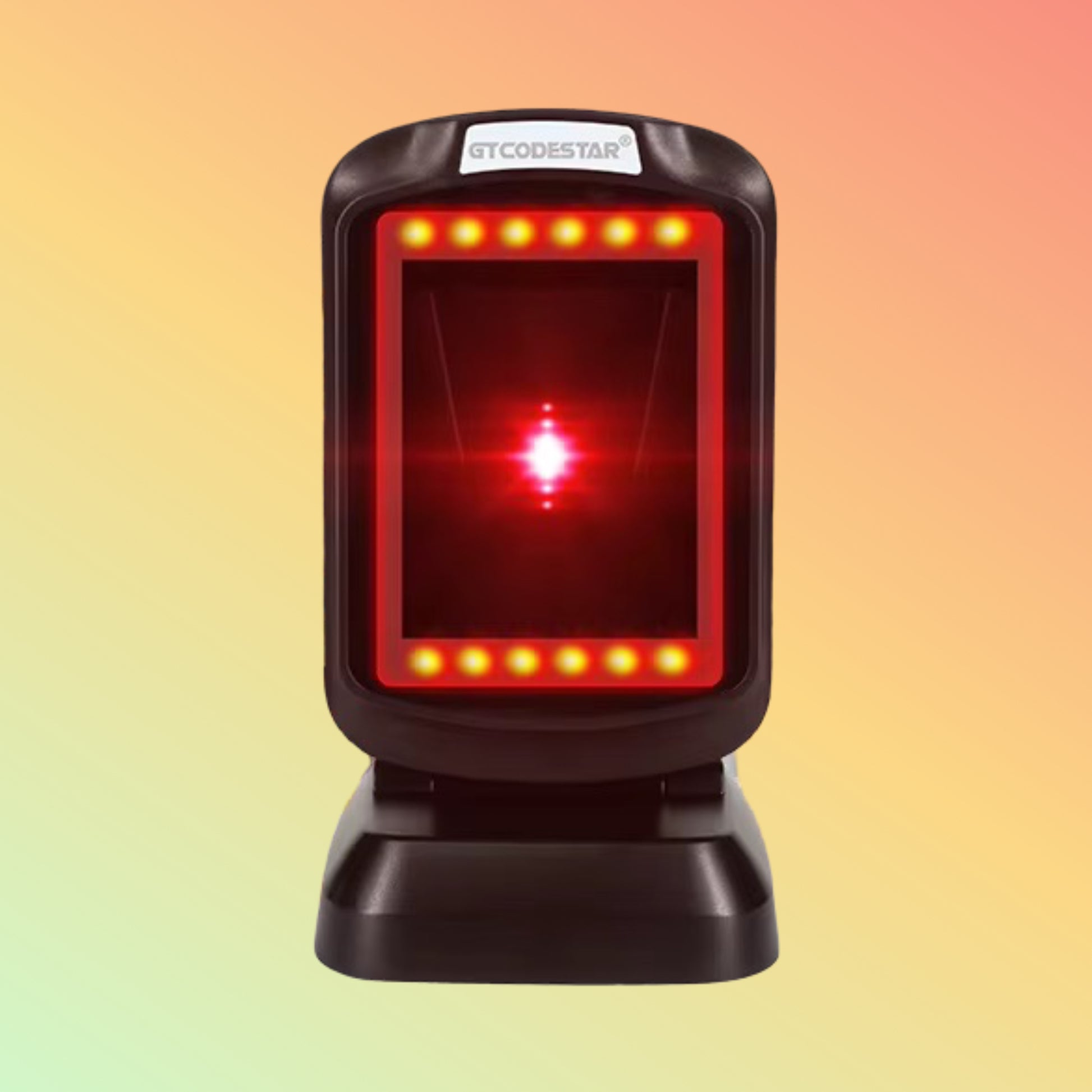

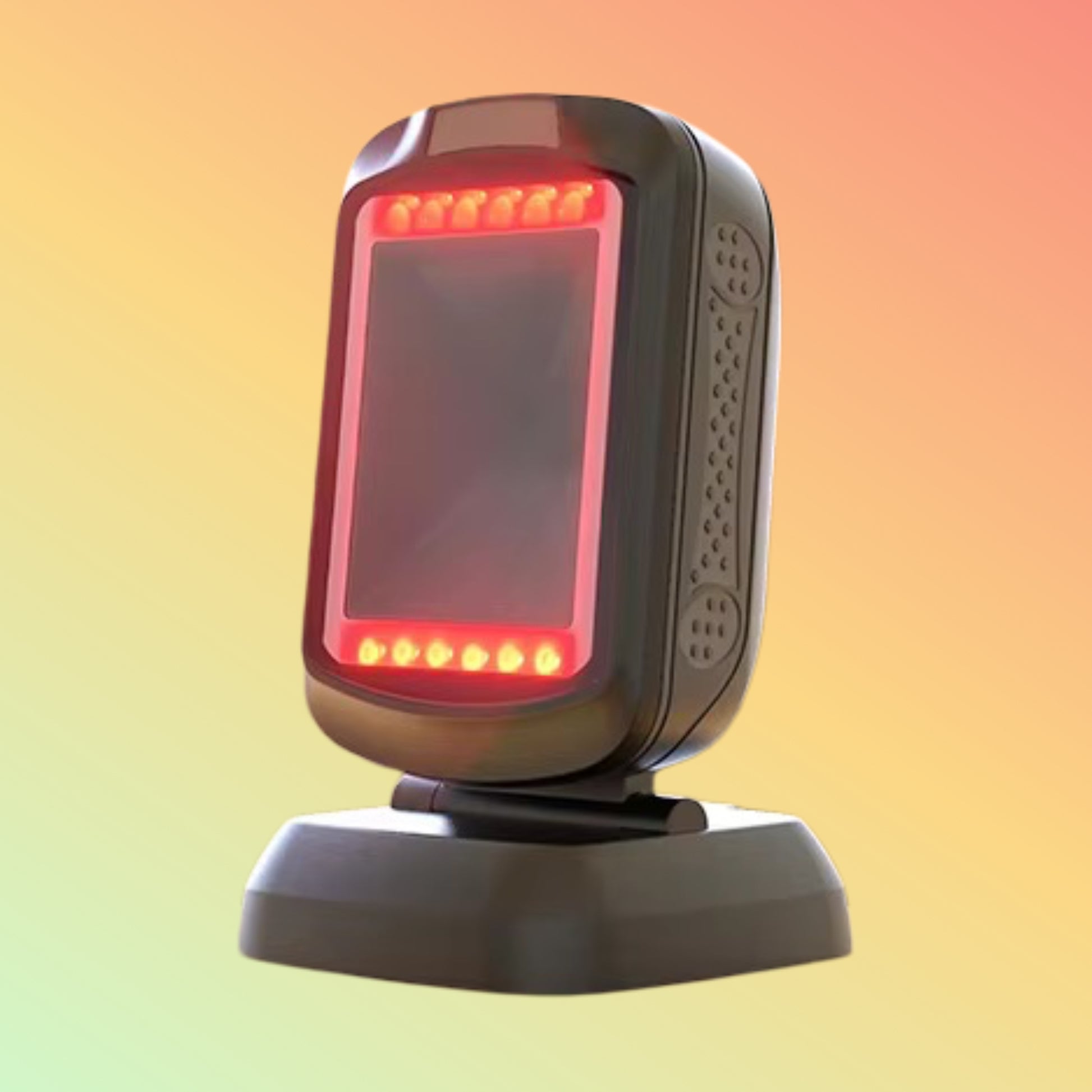

Light Source: Red LED

Standard Interface: USB

Optional / Custom Interface: RS-232

Reading Mode: Image

Detection: Auto-sensing

Documented Resolution: Code 39, 4 mil

Motion Tolerance: Up to 3.24 m/sec under specified conditions

Print Contrast Requirement: ≥25% in the supplied technical specification

Scan Angle: Roll 360°, Pitch 45°, Yaw 45°

Feedback: Buzzer + LED indicator

Power Supply: DC 5 V / 2 A

Working Power Consumption: Approximately 1.60 W in the supplied specification

Standby Power: Approximately 0.80 W

Maximum Power: Approximately 2.34 W

Housing Material: ABS + PC

Colour: Black

Dimensions: 146.99 × 85.27 × 89.97 mm

Weight: Approximately 294 g ±5 g without cable

Ingress Protection: IP52

Operating Temperature: 0°C to 50°C

Operating Humidity: 20%–85%, non-condensing

ESD Specification: Up to 15 kV listed in supplied documentation

Drop Specification: 1.5 m free-fall test onto concrete listed by supplier

Exact firmware, interface and regional configuration should be verified before ordering.

Documented Reading Distances

The supplied GT-9208 specification provides example depth-of-field figures under defined test conditions.

Examples include:

Code 39, 5 mil: approximately 1–12 cm

UPC-A, 13 mil: approximately 2–30 cm

Code 39, 20 mil: approximately 1–30 cm

PDF417, 6.7 mil: approximately 1–6 cm

Data Matrix, 10 mil: approximately 1–9 cm

Data Matrix, 15 mil: approximately 1–20 cm

These are test-condition references rather than guaranteed operating distances.

Actual reading range depends on barcode quality, contrast, size, substrate, angle and ambient lighting.

Retail Checkout Applications

The GT-9208 may be considered for:

• Supermarket checkout
• Convenience stores
• Fashion retail
• Pharmacy counters
• Specialty retail
• General POS environments

Its desktop presentation format is particularly relevant where scanning takes place repeatedly at one fixed counter.

QR Code Applications

The GT-9208 can read supported QR codes presented on compatible printed or electronic media.

Potential workflows include:

• Customer membership codes
• Electronic vouchers
• Order references
• Tickets
• Check-in codes
• QR-based product information

What happens after the QR code is scanned depends on the connected business application.

Kiosk & Self-Service Applications

Because the GT-9208 is a fixed desktop imaging scanner, it may also be evaluated for selected kiosk or self-service environments.

A typical integration could be:

User Presents Code → GT-9208 → USB / RS-232 → Kiosk Application

The kiosk software determines the resulting action.

Mechanical fit, interface requirements and software compatibility should be checked before integration.

POS & Payment Clarification

The GT-9208 should not be described as a payment terminal.

Although supplier descriptions sometimes refer to “payment codes,” the scanner itself only captures supported barcode or QR data.

Payment acceptance may require separate:

• POS application
• Payment application
• Payment provider
• Merchant account
• Payment gateway
• Certification or regulatory approval

The presence of QR scanning does not itself provide payment functionality.

Operating System Guidance

Supplier/manufacturer-channel information lists compatibility with host environments including:

• Windows
• Android
• Linux
• macOS

However, NEOTECH® does not claim universal compatibility with every version, POS platform or application.

Before deployment, confirm:

• Operating system
• USB input mode
• Required serial settings
• Keyboard layout
• POS software
• Kiosk software
• Required barcode formats
• Data-formatting requirements

Multilingual Keyboard Output

The GT-9208 specification includes configurable keyboard-language support across multiple layouts, including English, French, German, Spanish, Russian, Arabic, Portuguese and several other language settings.

This relates to scanner data output / virtual keyboard configuration, not multilingual OCR or translation.

The required keyboard layout should be tested with the actual host operating system and business application.

GT-9208 and PT-R9208 Model Identification

For SEO, replacement and customer search purposes, this page intentionally includes both references:

GT-9208 – independently documented original model.

PT-R9208 – OEM/alternate reference supplied for this product.

NEOTECH® does not claim that PT-R9208 is an official GTCODESTAR manufacturer part number unless that relationship is separately supported by supplier documentation, packaging or the product label.

This allows customers searching either reference to locate the product without creating a misleading manufacturer claim.

Purpose of Use

The GT-9208 / PT-R9208 is intended to provide fixed, hands-free barcode capture for business applications that require both 1D and 2D codes.

A typical workflow is:

Barcode / QR Code → GT-9208 → USB or RS-232 → Host Device → POS / Business Application

The scanner captures the barcode data. The connected software performs the business function.

Things to Verify Before Ordering

Please confirm:

• GT-9208 or PT-R9208 marking
• Exact supplier/OEM configuration
• USB or RS-232 requirement
• Required 1D barcode types
• Required 2D barcode types
• Screen-scanning requirement
• POS software
• Kiosk software
• Operating system
• Keyboard language
• Data prefix/suffix requirements
• Required scanning distance
• Mounting/counter arrangement
• Package contents
• Warranty terms

For specialised applications, testing a real sample barcode with the target application is recommended.

Why Choose NEOTECH® UAE

NEOTECH® helps businesses evaluate barcode hardware based on the actual scanning workflow rather than unsupported performance claims.

We can assist with:

• Desktop vs handheld scanner selection
• 1D vs 2D requirements
• QR Code applications
• USB vs RS-232 requirements
• POS scanner selection
• Kiosk scanner requirements
• Sample barcode evaluation
• Related receipt printers and POS hardware
• UAE availability information

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

UAE Delivery

NEOTECH® supplies products within the United Arab Emirates.

Shipping: Free Standard Shipping
Order Cut-Off: 2:00 PM GST
Handling: 1–2 business days
Transit: 3–5 business days
Estimated Total Delivery: 4–7 business days

Availability and the exact GT-9208 / PT-R9208 configuration should be confirmed before a time-sensitive order.

FAQ - PT-R9208 GT-9208

Q: Are GT-9208 and PT-R9208 the same barcode scanner?
A: GT-9208 is the independently documented original model used for this scanner platform. PT-R9208 is retained here as an OEM/alternate reference supplied with the product information. Customers should verify the actual model marking or supplier documentation before ordering.

Q: Can the GT-9208 read QR Codes, Data Matrix and normal product barcodes?
A: Yes. Documented GT-9208 specifications include common 1D barcode formats together with QR Code, Micro QR, Data Matrix, PDF417 and Aztec. Specialised barcode requirements should still be verified before deployment.

Q: Does the GT-9208 automatically recognise and process invoices?
A: The manufacturer specification lists an “Invoice Function,” but does not clearly define it as OCR or automated invoice-data processing. The scanner can read supported barcodes or QR codes on documents, while invoice interpretation, validation and accounting functions depend on the connected software.

Helpful Internal Links

• Desktop & Presentation Barcode Scanners
• 2D QR Code Barcode Scanners
• POS & Retail Barcode Solutions

Contact NEOTECH® UAE

NEOTECH®
Operated by NEOLYN TECHNOLOGY LLC

Email: support@neotech.ae

Address:
Store 13, Computer Building
Al Fahidi, Bur Dubai
Dubai 44245
United Arab Emirates

Disclaimer – NEOTECH® UAE

Specifications, firmware, barcode support, interface configuration, language settings, scan distances, environmental ratings, accessories and package contents may vary according to production version and OEM configuration.

GT-9208 is independently documented as the original scanner model. PT-R9208 is included as an OEM/alternate reference based on the supplied product information. NEOTECH® does not claim that PT-R9208 is an official GTCODESTAR part number unless separately documented.

The manufacturer specification references an “Invoice Function,” but the available technical documentation does not establish that the scanner performs OCR, invoice-field extraction, accounting processing or independent document validation.

Application examples are provided for general guidance and do not guarantee compatibility with a particular POS, payment, ERP, kiosk, invoice or other third-party system.

Customers should verify the exact model, interfaces, barcode formats, host software and package contents before ordering.

GTCODESTAR and other brand/model names belong to their respective rights holders. NEOTECH® is operated by NEOLYN TECHNOLOGY LLC.

Last Updated: 12 August 2026  (GST, UTC+4)
