Overview

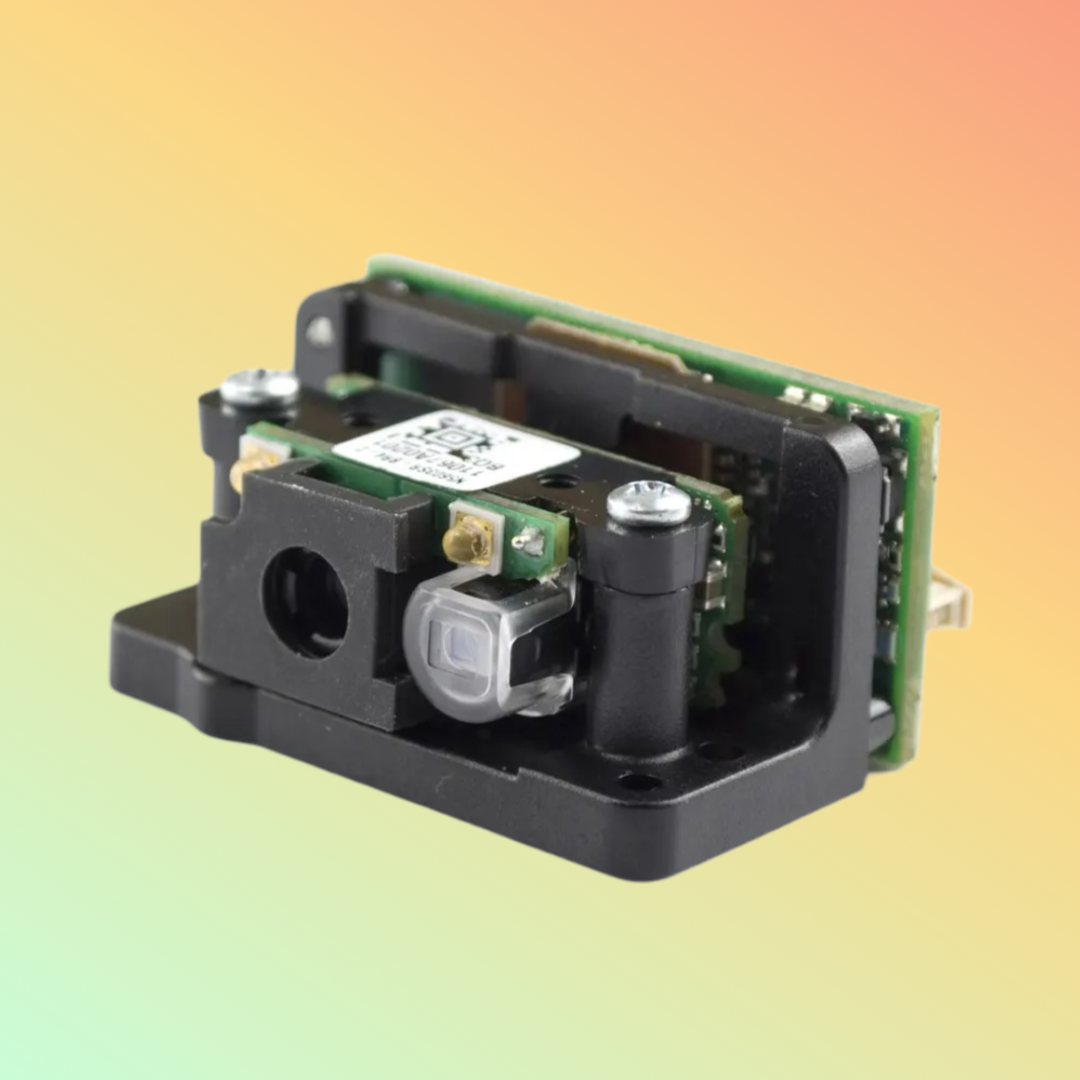

The Honeywell N5680 2D Barcode Scanner Engine Module is a compact yet powerful solution for devices requiring seamless barcode scanning. Built with a proprietary CMOS sensor featuring a global shutter, it captures high-resolution scans under various lighting conditions. Designed for OEM integrations, it’s ideal for products where space is limited, and high-performance scanning is essential.
Product Description
Honeywell’s N5680 2D Barcode Scanner Engine Module combines compact design and advanced technology for seamless integration into various applications. Equipped with a proprietary CMOS sensor, this module offers rapid and precise 2D barcode scanning. The module supports a wide input voltage range and provides both USB and TTL-RS232 connectivity, making it flexible for different configurations. Its visible red LED illumination and 20% symbol contrast threshold ensure reliable performance in challenging lighting. This versatile scanner engine is the ideal choice for devices requiring an embedded, high-performance barcode scanner.
Key Features
-
Advanced CMOS Sensor: Proprietary CMOS sensor with global shutter for fast and accurate 2D scanning.
-
Compact Design: Small footprint at 19.4 mm x 39.8 mm x 28.2 mm, perfect for embedded device applications.
-
Durable: Operates in a broad temperature range from -25°C to 50°C, suitable for demanding environments.
-
Versatile Connectivity: 12-pin surface mount (Molex) and USB interface options ensure compatibility.
-
Energy Efficient: Low power consumption in sleep mode at just 90 µA.
Product Quality and Performance
The Honeywell N5680 delivers consistent and reliable barcode reading, thanks to its robust CMOS sensor and global shutter. Its durability in extreme temperatures and resistance to ambient light make it a dependable choice for various applications. Backed by Honeywell’s commitment to quality, this module meets industry standards for accuracy and speed.
Performance, Quality, Durability, and Reliability
Designed to withstand a wide range of operating temperatures and high ambient light (up to 100,000 lux), the N5680 module provides reliable performance in diverse environments. Its proprietary sensor technology ensures consistent scanning quality, while low energy consumption enhances durability for battery-powered devices.
Specifications
-
Model: Honeywell N5680
-
Type: 2D Barcode Scanner Engine Module
-
Dimensions: 19.4 mm x 39.8 mm x 28.2 mm
-
Weight: 20g (0.7 oz)
-
Interface: 12-pin Molex or Micro-B USB
-
Voltage: TTL-RS232 (3.0 VDC – 5.5 VDC), USB (5.0 VDC ±5%)
-
Temperature Range: Operating -25°C to 50°C, Storage -40°C to 85°C
-
Symbol Contrast: 20% minimum reflectance
Purpose of Use
The N5680 is ideal for integrating into compact devices that require robust 2D barcode scanning. It’s suitable for retail, logistics, and industrial applications where accurate and quick scanning is essential.
How to Use
-
Install: Connect via the 12-pin Molex mount or USB interface.
-
Power Up: Ensure compatible voltage: 3.0 VDC – 5.5 VDC for TTL-RS232 or 5.0 VDC for USB.
-
Start Scanning: Aim the red LED illumination at the barcode and initiate the scan.
Supported OS/Application/Industries
The Honeywell N5680 is compatible with various systems supporting USB or TTL-RS232, making it ideal for retail, healthcare, logistics, and industrial devices. Its robust design allows use in high-demand environments.
Benefits & Compatibility
Designed for seamless integration, the N5680 offers reliable 2D barcode scanning performance in a compact form. Its low power consumption, versatile connectivity, and durability make it compatible with a wide range of OEM applications.
Warranty and FAQs
-
Warranty: 90-day limited warranty.
-
FAQs:
-
Q: Does it work in low light?
A: Yes, it operates effectively with ambient light up to 100,000 lux.
-
Q: Is it compatible with USB connections?
A: Yes, it supports Micro-B USB connectivity.
Packaging, Weight, and Dimensions
-
Selling Unit: Single item
-
Package Dimensions: 19.4 mm x 39.8 mm x 28.2 mm
-
Package Weight: 20g
