Compact Windows CE 6.0 handheld mobile terminal with physical keypad, optional 1D laser barcode scanning, Wi-Fi, Bluetooth, removable 3200mAh battery, IP65 protection and 1.5m drop resistance.

Brand: Huashengtong / HST
Model: X3
Product Type: Rugged Mobile Smart Terminal
Operating System: Microsoft Windows CE 6.0
Processor: 624MHz
Memory: 128MB RAM + 128MB ROM
Display: 3.2-inch 240 × 320 TFT Touchscreen
Protection: IP65
Battery: Removable 3200mAh Li-ion

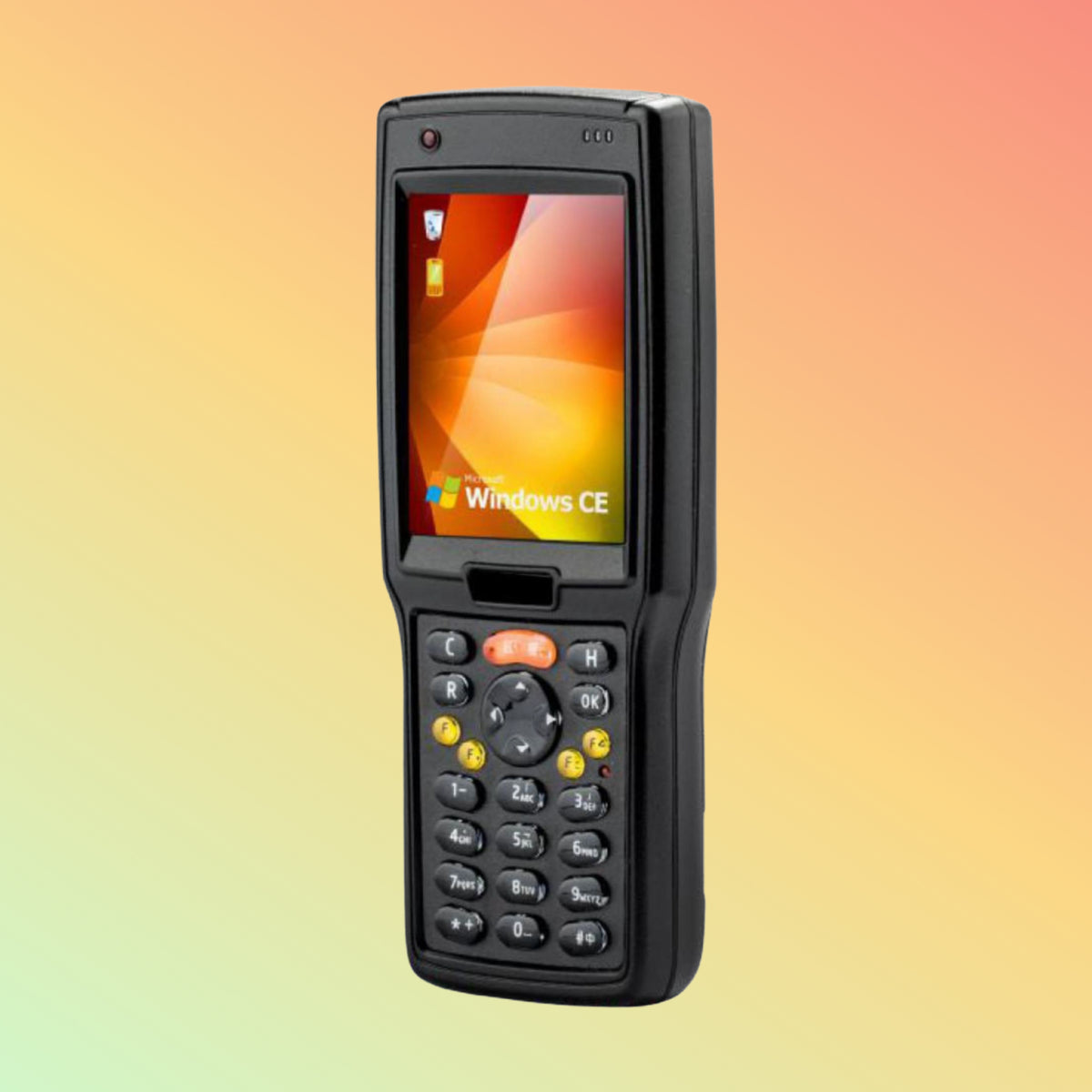

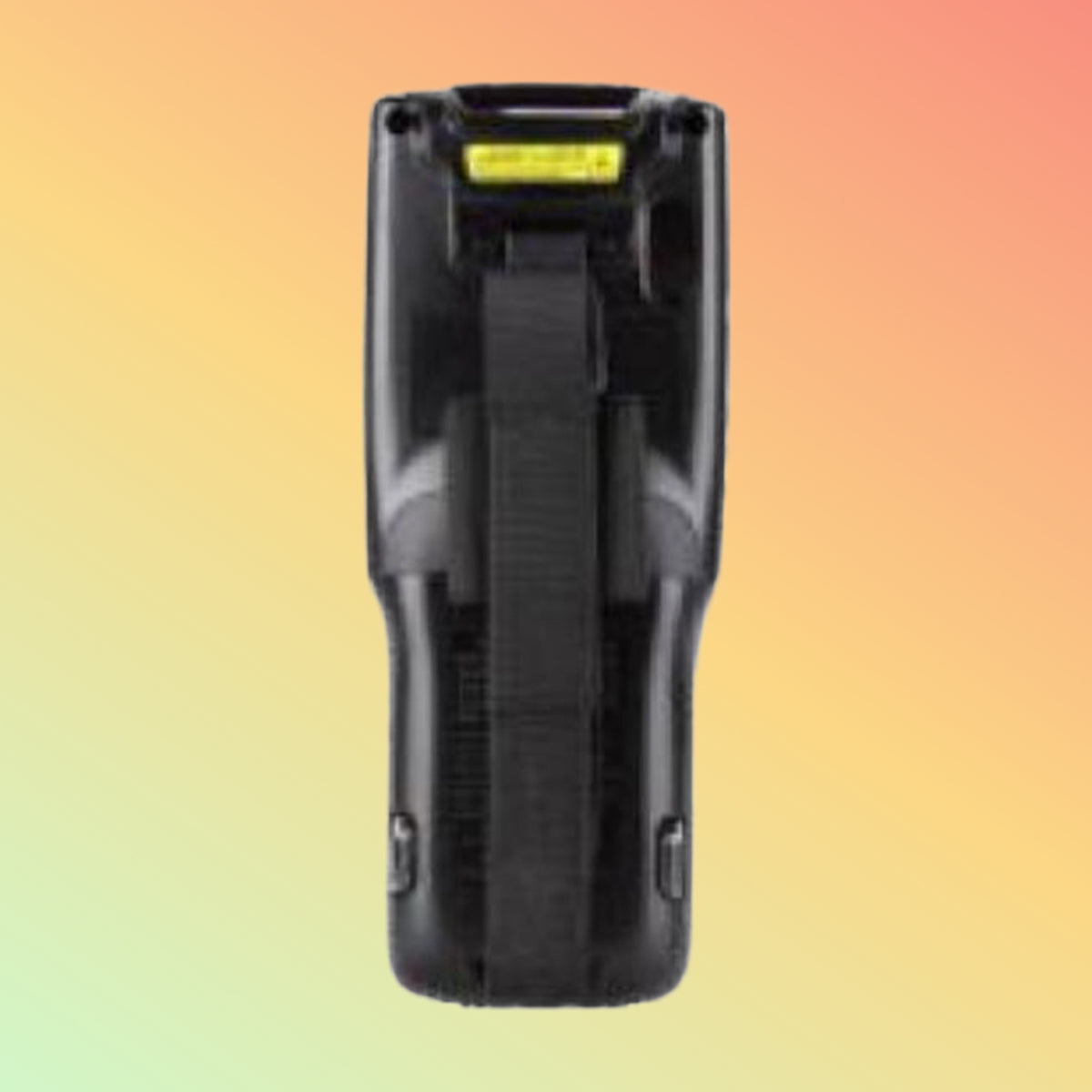

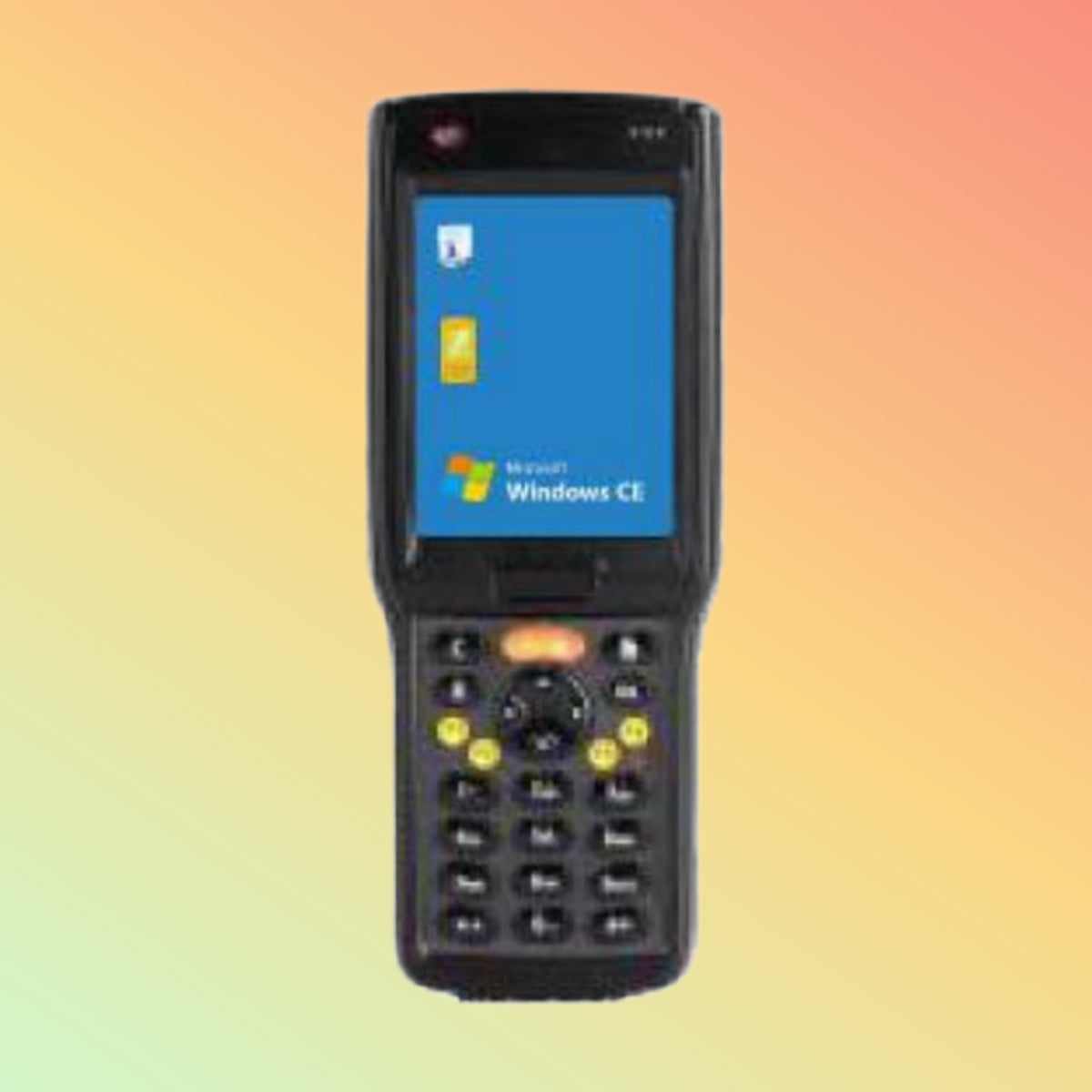

Huashengtong X3 Mobile Smart Terminal

The Huashengtong X3 is a compact commercial-grade handheld mobile terminal designed for barcode data capture, inventory work, retail, apparel, healthcare and other light-industrial applications.

It combines Microsoft Windows CE 6.0, a 624MHz processor, 128MB RAM + 128MB ROM, a 3.2-inch colour touchscreen, physical keypad, optional barcode scanning, Wi-Fi, Bluetooth and a removable 3200mAh battery.

The X3 is also specified with IP65 protection and resistance to multiple 1.5-metre drops onto concrete, making it suitable for mobile data-collection environments where a conventional consumer handheld may not be appropriate.

Overview

The X3 is designed as a relatively lightweight handheld for organizations that still operate compatible Windows CE applications.

Core features include:

• Microsoft Windows CE 6.0
• 624MHz CPU
• 128MB RAM
• 128MB ROM
• 3.2-inch TFT colour touchscreen
• 240 × 320 resolution
• 25-key physical keypad
• Optional barcode scanner
• Wi-Fi 802.11 b/g
• Bluetooth 2.1
• Optional GPRS / WCDMA / EVDO
• Removable 3200mAh battery
• Optional 5MP autofocus camera
• microSD / TF expansion slot
• IP65 protection
• 1.5m drop resistance
• 500-tumble specification
• Approximate weight of 328g including standard battery

Key Features

Windows CE 6.0 Platform

The X3 uses:

Microsoft Windows CE 6.0

This operating system was widely used in earlier generations of industrial handheld terminals.

It may remain relevant where a customer already operates a legacy application specifically designed for Windows CE.

Because Windows CE 6.0 is an older operating system, software compatibility should be verified before ordering.

The X3 should not be purchased for a new Android or modern Windows application unless the customer's software environment specifically supports Windows CE.

624MHz Processor

The terminal is equipped with a:

624MHz CPU

This platform is intended for the lightweight industrial applications typical of Windows CE devices, such as:

• Barcode capture
• Inventory
• Stock lookup
• Basic warehouse applications
• Retail data collection
• Field forms

It should not be compared directly with current Android smartphone processors.

Memory

RAM: 128MB

ROM: 128MB

The memory specification reflects the device's Windows CE generation.

Customers should verify the storage and runtime requirements of their existing application before deployment.

3.2-Inch Touchscreen

The X3 includes a:

3.2-inch TFT colour touchscreen

with:

240 × 320 resolution

This compact display is designed for handheld data-entry workflows rather than multimedia or large-screen applications.

Physical Keypad

The device includes:

25 standard keys

plus:

• Power button
• Reset button

A physical keypad can be useful for operators who need:

• Numeric entry
• Menu navigation
• Repetitive inventory work
• Gloved or fast tactile input

Barcode Data Capture

The supplied X3 specification identifies an optional:

1D laser scanning engine

for barcode data capture.

The manufacturer states a minimum barcode density of approximately:

3 mil

and a scan-distance range of approximately:

3 cm to 70 cm

depending on the barcode density, symbology and scanning conditions.

Barcode Compatibility

The technical sheet lists decoding support including common formats such as:

• UPC / EAN
• Code 128
• Code 39
• Code 93
• Code 11
• Interleaved 2 of 5
• Discrete 2 of 5
• Chinese 2 of 5
• Codabar
• MSI
• RSS

The same source also lists PDF417, MicroPDF417, Composite, Data Matrix, QR Code, Micro QR and Aztec, while elsewhere describing the scan engine as 1D laser.

Because those statements are technically inconsistent, NEOTECH® recommends confirming the exact installed scan engine before promising 2D barcode or DPM capability.

Important Scanner Configuration Note

The X3 may have been offered with different scanner-engine configurations.

Before ordering, please confirm whether the requirement is:

• Standard 1D laser scanning
• 2D imaging
• DPM reading
• Postal barcode reading
• Other specialized symbologies

Do not assume that every X3 configuration supports every code listed in historical literature.

Optional 5MP Camera

The X3 technical specification lists an optional:

5MP camera

with:

• Autofocus
• LED flash

The camera is configuration-dependent and should not be assumed included in every unit.

Potential uses may include:

• Documentation
• Product photography
• Proof-of-condition records
• Field images

Removable 3200mAh Battery

The X3 uses a:

3.7V 3200mAh removable lithium battery

A removable design may be useful where organizations want to:

• Replace an aged battery
• Keep charged spare batteries
• Extend operational life between device replacements

The manufacturer literature describes the battery as suitable for approximately a full 8-hour working shift under its intended light-industry usage assumptions.

Actual runtime depends on:

• Scan frequency
• Display use
• Wi-Fi
• Bluetooth
• WWAN
• Application activity
• Battery condition
• Temperature

Therefore, an exact 8-hour runtime should not be guaranteed for every workload.

Manufacturer Battery-Life Figures

The specification lists approximately:

Normal Use: More than 8 hours

Standby: More than 240 hours

These are manufacturer figures and actual performance will vary according to use.

Wi-Fi

Wireless LAN:

IEEE 802.11 b/g

This can support compatible legacy wireless-network environments.

Businesses using modern enterprise wireless security should confirm that their current network remains compatible with the Windows CE device and its wireless hardware.

Bluetooth

Bluetooth support:

Bluetooth 2.1

This may support compatible legacy peripherals.

Compatibility with modern Bluetooth-only devices should be checked before deployment.

Optional WWAN

The manufacturer lists optional wide-area wireless communication support for:

• GPRS
• WCDMA
• EVDO

These are older mobile-network technologies.

Network availability varies by country, and many operators have retired or are retiring older 2G/3G services.

For UAE deployment, cellular compatibility should be confirmed with the intended mobile operator before ordering a WWAN configuration.

microSD / TF Card Slot

The technical specification lists:

1 × MicroSD / TF card slot

as an optional external-port feature.

Storage-card compatibility and supported capacity should be verified against the exact device configuration.

USB Connectivity

The X3 lists:

1 × Industrial-Grade Mini USB 2.0 data port

The device uses Mini USB rather than modern USB-C.

Customers should ensure the appropriate cable is available.

Audio and Notifications

The device includes:

Speaker

Notification functions include:

• Built-in speaker
• LED indicator
• Vibration motor

These can support application alerts and operator feedback.

IP65 Protection

The X3 is specified with:

IP65 protection

This indicates protection against dust ingress and water jets under the applicable test conditions.

IP65 should not be interpreted as:

• Waterproof for immersion
• Suitable for underwater use
• Resistant to every liquid or chemical
• Indestructible

Port covers and physical condition can affect environmental protection.

1.5m Drop Resistance

The manufacturer specification lists:

1.5m drop onto concrete

for the straight-head X3 configuration.

Drop performance applies under manufacturer test conditions and does not guarantee that every accidental impact will occur without damage.

Tumble Resistance

The X3 is specified to withstand:

500 tumbles from 1 metre

under the manufacturer's impact test conditions.

This can be relevant to environments where handheld terminals experience repeated knocks during normal work.

Operating Temperature

Operating Temperature: -10°C to 50°C

Storage Temperature: -30°C to 60°C

These figures are manufacturer specifications.

ESD Protection

The technical sheet specifies:

Air Discharge: ±15kV

Direct Discharge: ±8kV

ESD protection is particularly relevant in commercial and light-industrial environments where static discharge can occur.

Humidity

Specified relative humidity:

5% to 95% RH

Actual operating suitability depends on the total environment and condensation conditions.

Physical Specifications

Dimensions: Approximately 181.5 × 72 × 35 mm

Weight: Approximately 328g including standard battery

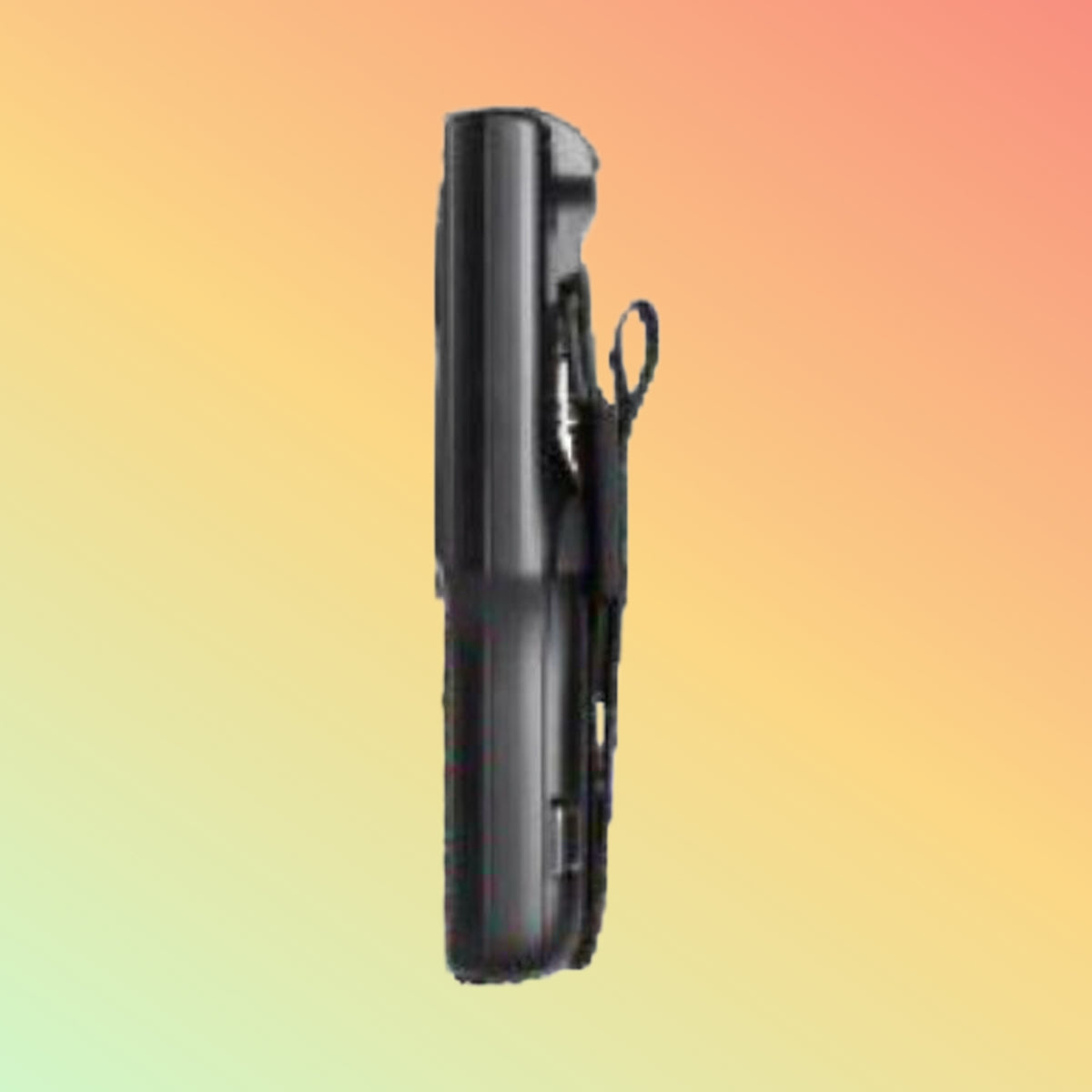

The X3 uses a compact straight-head handheld format.

Standard Accessories

The supplied specification illustrates the following standard accessories:

• Battery
• Charger
• USB cable

Exact included accessories should be verified against the supplier quotation because packaging can vary by production period and source.

Retail Applications

The manufacturer identifies retail as one of the X3's intended environments.

Potential applications include:

• Stock counting
• Price checking
• Product lookup
• Inventory updates
• Barcode data capture
• Backroom stock management

The customer's existing retail software must support Windows CE 6.0.

Apparel and Footwear Applications

Potential uses include:

• SKU scanning
• Inventory counting
• Stock transfer
• Size/colour stock checking
• Warehouse picking
• Store replenishment

A physical keypad can be useful in repetitive stock-counting workflows.

Warehouse and Inventory Applications

The X3 may suit compatible legacy applications for:

• Receiving
• Picking
• Cycle counting
• Inventory
• Bin identification
• Product lookup
• Internal stock movement

Organizations building a new WMS deployment should normally compare current Android rugged mobile computers before selecting an older Windows CE platform.

Healthcare Applications

The manufacturer also identifies healthcare among possible X3 application areas.

Potential uses may include:

• Inventory
• Consumable tracking
• Internal barcode data collection

Any patient, medical or regulated workflow requires separate verification of software, security and applicable requirements.

Light Industrial Applications

The X3 is primarily positioned for light-industrial environments.

Possible uses include:

• Inventory
• Manufacturing stock control
• Component tracking
• Basic production data collection
• Inspection-related barcode capture

It should not automatically be assumed suitable for hazardous areas, intrinsically safe applications or extreme industrial environments.

Purpose of Use

A typical workflow may be:

Operator

↓

X3 Mobile Smart Terminal

↓

Barcode / Keypad Input

↓

Windows CE Application

↓

Wi-Fi / Optional WWAN

↓

Business System

The X3 provides the handheld hardware platform.

The customer's software, database and integration are separate unless expressly included.

Compatibility

Before ordering, verify:

• Exact X3 configuration
• Scan engine
• Required barcode symbologies
• Windows CE application
• Wi-Fi security compatibility
• Bluetooth requirement
• WWAN requirement
• Camera requirement
• Battery condition
• Charger requirement
• USB cable requirement
• microSD requirement
• Quantity

Important Legacy-Platform Consideration

The X3 uses:

Microsoft Windows CE 6.0

This is a legacy operating system.

For an existing Windows CE application, the X3 may still be relevant if the customer specifically requires compatible replacement or additional hardware.

For a new deployment, NEOTECH® recommends comparing a current Android rugged mobile computer before making a decision.

This is especially important for:

• Security updates
• Modern Wi-Fi
• Current applications
• Mobile-device management
• Cloud software
• Modern browser support
• Long-term software support

Things to Verify Before Ordering

1. Existing Software

Does your application specifically require Windows CE 6.0?

2. Barcode Requirement

Do you need:

• 1D scanning
• 2D scanning
• DPM
• Postal codes

The exact scan engine must be confirmed.

3. Wireless Network

Does your current Wi-Fi environment support the device's 802.11 b/g hardware and security requirements?

4. Cellular Requirement

Do you require GPRS, WCDMA or EVDO?

Confirm whether the intended operator still supports the required network.

5. Camera

Is the optional 5MP autofocus camera required?

6. Battery

For older or replacement units, confirm:

• Battery condition
• Battery age
• Availability of spare batteries

7. Accessories

Confirm:

• Charger
• USB cable
• Battery
• Any cradle or additional accessory

Who Should Consider the X3?

The X3 may be relevant for organizations that:

• Already operate Windows CE 6.0 software
• Require a physical keypad
• Need portable barcode data capture
• Need a removable battery
• Need IP65 protection
• Need a legacy replacement handheld
• Operate established light-industrial applications

A current-generation Android device may be more appropriate where the customer needs:

• Modern Android software
• Current security support
• Wi-Fi 5/6
• Bluetooth 5
• 4G/5G connectivity
• Modern browser support
• Enterprise MDM
• Current app ecosystems

Why NEOTECH® UAE?

The main question for the X3 is not simply:

“Does it scan barcodes?”

The more important questions are:

Does your application require Windows CE 6.0?

Which exact scan engine do you need?

Do you require only 1D or also 2D/DPM?

Will the device connect to your current Wi-Fi network?

Do you require mobile-data connectivity?

Are you replacing an existing X3 fleet?

Because the X3 is a legacy Windows CE platform, checking the complete application before ordering is particularly important.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

Delivery – UAE

NEOTECH® supplies within the United Arab Emirates only.

Standard Shipping: Free

Order Cut-Off: 14:00 GST

Handling: 1–2 business days for applicable available stock

Standard Transit: 3–5 business days

Estimated Standard Delivery: 4–7 business days for applicable available stock

For legacy, discontinued, non-stock or special-order configurations, lead time may extend to approximately 10–15 working days or up to 25 working days after payment/order confirmation, depending on supplier availability.

Availability and exact device configuration should be confirmed before ordering.

FAQ

Q: What is the Huashengtong X3?
A: It is a compact Windows CE 6.0 mobile smart terminal designed for barcode data capture and light-industrial applications.

Q: Which operating system does it use?
A: Microsoft Windows CE 6.0.

Q: What processor does it use?
A: A 624MHz processor.

Q: How much memory does it have?
A: 128MB RAM and 128MB ROM.

Q: What display does it have?
A: A 3.2-inch TFT colour touchscreen with 240 × 320 resolution.

Q: Does it have a physical keypad?
A: Yes. The specification lists 25 standard keys plus power and reset buttons.

Q: Does it include a barcode scanner?
A: Barcode scanning is listed as optional. The specification identifies a 1D laser scan engine, so the exact supplied scanner must be confirmed.

Q: Does the X3 scan 2D barcodes?
A: The supplied technical sheet is internally inconsistent: it identifies a 1D laser engine but also lists some 2D symbologies. NEOTECH® therefore recommends confirming the exact installed scan engine before ordering for 2D use.

Q: Does it support DPM scanning?
A: The brochure mentions DPM capability in one section, but this should not be assumed for every configuration. Confirm the exact scan engine.

Q: What is the scan range?
A: The manufacturer's specification lists approximately 3cm to 70cm depending on barcode density and conditions.

Q: Does it have a camera?
A: An optional 5MP autofocus camera with LED flash is listed.

Q: What battery does it use?
A: A removable 3.7V, 3200mAh lithium battery.

Q: Is the battery replaceable?
A: Yes. The specification describes it as removable.

Q: What battery life does the manufacturer state?
A: More than 8 hours normal use and more than 240 hours standby are listed. Actual runtime will vary.

Q: Does it support Wi-Fi?
A: Yes. IEEE 802.11 b/g.

Q: What Bluetooth version does it use?
A: Bluetooth 2.1.

Q: Does it support cellular networks?
A: Optional GPRS, WCDMA and EVDO are listed. Network availability must be checked because these are legacy technologies.

Q: Does it support microSD?
A: An optional MicroSD/TF card slot is listed.

Q: Which USB port does it use?
A: The specification lists an industrial-grade Mini USB 2.0 data port.

Q: What is the IP rating?
A: IP65.

Q: What is the drop specification?
A: Up to 1.5m onto concrete under manufacturer test conditions.

Q: What is the tumble specification?
A: 500 tumbles from 1 metre under manufacturer test conditions.

Q: What is the operating temperature?
A: Approximately -10°C to 50°C.

Q: What are the dimensions?
A: Approximately 181.5 × 72 × 35 mm.

Q: How much does it weigh?
A: Approximately 328g including the standard battery.

Q: Is the X3 a current Android mobile computer?
A: No. It is a Windows CE 6.0 device.

Q: Is the X3 suitable for a new project?
A: It may be appropriate where an existing application specifically requires Windows CE 6.0. For a new deployment, a current Android rugged mobile computer should also be evaluated.

Q: What accessories are shown as standard?
A: The manufacturer's specification shows a battery, charger and USB cable. Final package contents should be confirmed before ordering.

Q: What information should I provide for a quotation?
A: Please provide quantity, required scan engine, barcode types, camera requirement, WWAN requirement, and details of the existing Windows CE application.

Related Products

• Rugged Mobile Computers
• Windows CE Handheld Terminals
• Android Mobile Computers
• 1D Barcode Scanners
• Warehouse Mobile Computers
• Inventory Data Collection Terminals
• Replacement Mobile Computer Batteries

Helpful Internal Links

• Mobile Computers
• Rugged Handheld Terminals
• Barcode Scanners
• Warehouse Mobility
• Inventory Solutions
• Android Mobile Computers
• Data Collection Devices
• NEOTECH® Learning Center

Contact

For compatibility verification and quotation:

Email: support@neotech.ae

Address: Store 13, Computer Building, Al Fahidi, Bur Dubai, Dubai 44245, UAE

Please provide:

Product: X3 Mobile Smart Terminal
Quantity:
Required Scan Engine:
Barcode Types:
Camera Required: Yes / No
WWAN Required: Yes / No
Existing Application / Software:

Disclaimer

NEOTECH® is operated by NEOLYN TECHNOLOGY LLC in the UAE.

Huashengtong, HST, X3 and associated product names and trademarks belong to their respective owners. NEOTECH® does not claim manufacturer authorization or endorsement unless separately documented.

This page is based on the supplied X3 technical specification document.

The supplied document identifies Microsoft Windows CE 6.0, a 624MHz processor, 128MB RAM + 128MB ROM, 3.2-inch touchscreen, removable 3200mAh battery, Wi-Fi 802.11 b/g, Bluetooth 2.1, IP65 protection and 1.5m drop resistance.

The source document contains an internal inconsistency regarding barcode capability: it identifies the scan engine as 1D Laser Scan, while also listing certain 2D symbologies and referring elsewhere to DPM capability. For that reason, 2D and DPM support should be verified against the exact installed scan engine before purchase.

Windows CE 6.0 is a legacy operating system. Software, wireless-network and security compatibility should be confirmed before ordering.

WWAN options listed in the manufacturer literature use older GPRS/WCDMA/EVDO technologies and may not be supported by current UAE mobile networks.

Optional features such as the barcode engine, camera, WWAN and external ports should not be assumed included unless expressly confirmed in the quotation.

Drop, tumble, IP and environmental specifications apply under manufacturer test conditions and do not guarantee protection against every real-world incident.

Images may show optional configurations.

Last Updated: 19 September 2026 (GST, UTC+4)
