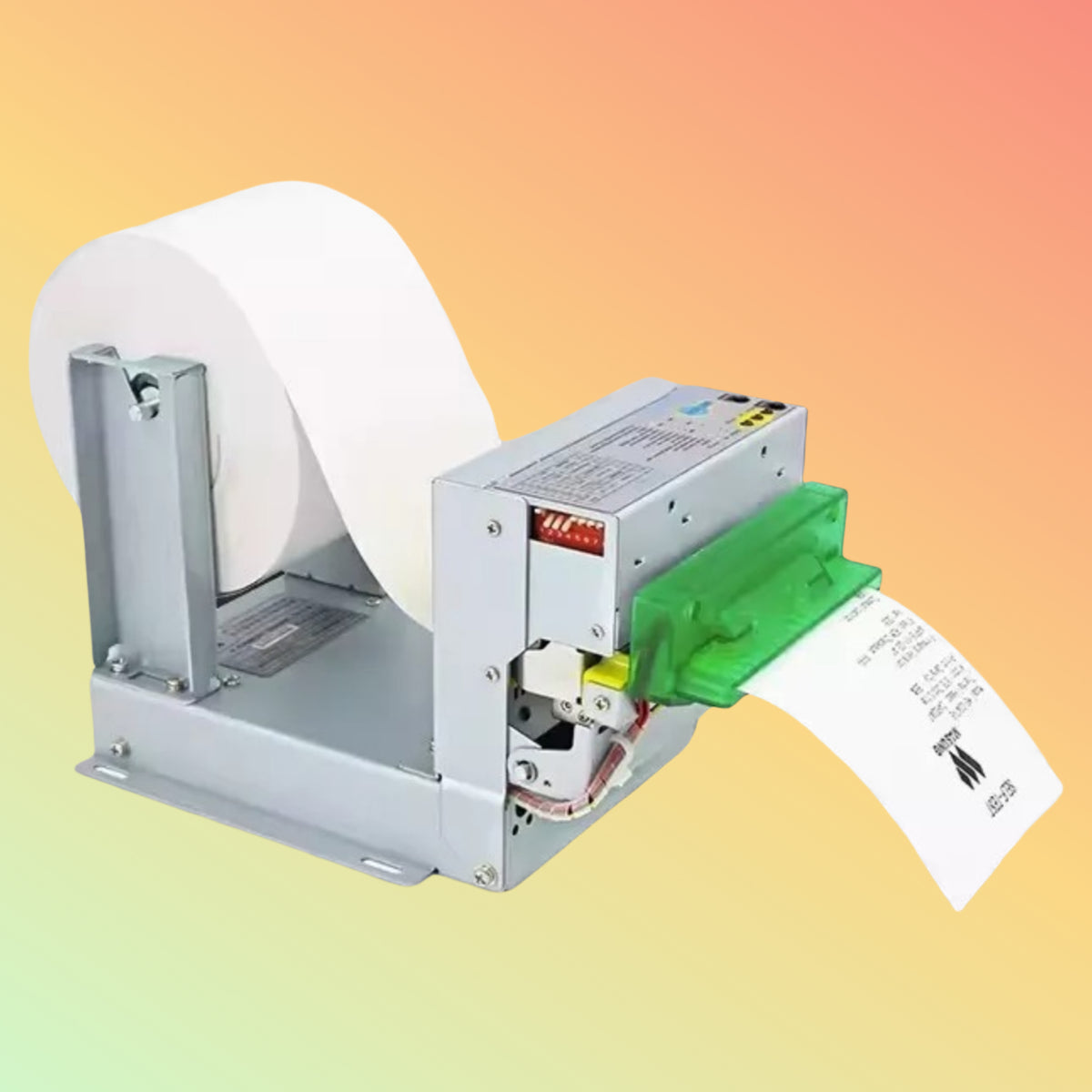

POSTECH PM201 48 mm Thermal Kiosk Printer Module | NEOTECH® UAE

(989)

AED 1,020.00

~~AED 1,140.00~~ AED 1,020.00

Sale Available on Request

Shipping calculated at checkout.

Compact Embedded Thermal Printing for Kiosks, Ticketing and Self-Service Systems

POSTECH PM201 48 mm Thermal Kiosk Printer Module The POSTECH PM201 is a compact direct thermal printer module intended for integration into kiosks, ticketing terminals, queue systems and other self-service equipment.

It provides an effective print width of 48 mm on compatible thermal paper up to approximately 57 mm wide. Available interface configurations include USB with RS232 or USB with TTL, depending on the selected version.

The integrated base, feed button, indicator light, automatic paper guide and cutter make the PM201 suitable for equipment designers who require a compact receipt or ticket-printing module inside a larger machine enclosure. The underlying PM201 platform is documented with 203 dpi resolution, printing speeds up to 90 mm/s and support for paper rolls with a maximum outer diameter of approximately 100 mm.

Professional Highlights

Embedded thermal printer module
48 mm effective print width
Supports approximately 57 mm thermal paper
203 dpi print resolution
Print speed up to 90 mm/s
Integrated automatic cutter
USB with RS232 or USB with TTL configurations
Feed button and status indicator
Automatic paper guide
Optional paper-near-end detection
Supports paper rolls up to approximately 100 mm in diameter
Suitable for kiosk and self-service integration

Product Overview

The PM201 is not a conventional desktop receipt printer. It is a printer module designed to be installed inside another machine or enclosure.

A typical deployment may include:

Self-service payment kiosk
Queue-ticket dispenser
Parking payment terminal
Visitor-management kiosk
Ticket vending machine
Information terminal
Retail self-checkout system
Locker or access-control terminal

The printer receives data from the kiosk controller or host system, prints the required receipt or ticket and cuts the paper automatically when configured to do so.

Key Features

Compact Integrated Construction

The printer module includes a mounting base intended to simplify installation within a kiosk or machine enclosure.

48 mm Effective Print Area

The print mechanism provides an effective print width of approximately 48 mm while using compatible thermal paper up to approximately 57 mm wide.

This distinction is important because 48 mm refers to the printable area, not the overall paper width.

Direct Thermal Printing

The PM201 prints directly onto compatible heat-sensitive thermal paper.

No ink cartridge, toner or thermal-transfer ribbon is required.

Automatic Paper Cutter

The integrated cutter supports automatic separation of printed receipts or tickets.

The official PM201 specification states a cutter life of up to approximately one million cuts under defined test conditions.

USB and Serial Interface Options

Available configurations include:

USB + RS232
USB + TTL

The required interface version should be confirmed before ordering because the connection method affects integration with the kiosk controller.

Paper Detection Functions

The module includes paper-out detection. Paper-near-end detection may be optional or available in customised configurations.

Automatic Paper Guide

The automatic paper-feeding design helps guide compatible paper through the mechanism during loading and normal operation.

Technical Specifications

Product Type: Embedded Thermal Kiosk Printer Module

Model: PM201

Printing Method: Direct Thermal / Linear Thermal

Print Resolution: 203 dpi / 8 dots per mm

Effective Print Width: 48 mm

Compatible Paper Width: Up to approximately 57 mm

Specified Paper Width: 57 mm maximum or 57.5 ± 0.5 mm, depending on the documented version

Paper Thickness: Approximately 0.06–0.08 mm

Maximum Print Speed: Up to 90 mm/s

Maximum Paper Roll Diameter: Approximately 100 mm

Print Density: 384 dots per line

Interfaces: USB + RS232 or USB + TTL, depending on configuration

Control Language: ESC/POS on documented configurations

SDK Support: Windows, Android and iOS are listed for the underlying PM201 platform

Paper Loading: Automatic paper guide

Paper-Out Detection: Optical detection

Paper-Near-End Detection: Optional or configuration dependent

Automatic Cutter: Included on documented configurations

Printhead Life: Up to approximately 50 km under specified test conditions

Cutter Life: Up to approximately 1 million cuts under specified test conditions

Input Power: DC 5–9 V, 3 A

Recommended Voltage: Approximately 7.5 V

Dimensions: Approximately 170 × 98 × 86 mm

Weight: Approximately 510 g

Operating Temperature: Approximately 0°C to 45°C

Operating Humidity: Approximately 20% to 90%

Storage Temperature: Approximately –10°C to 60°C

Specifications should be confirmed against the actual supplied configuration, control board and installation requirements.

Typical Applications

The PM201 may be used in:

Self-service kiosks
Queue-management systems
Ticketing machines
Parking payment systems
Visitor-registration kiosks
Retail self-checkout equipment
Payment terminals
Information kiosks
Access-control terminals
Automated vending systems
Locker-management systems
Healthcare check-in kiosks

Purpose of Use

The purpose of the PM201 is to provide compact receipt or ticket printing inside a self-service or embedded system.

It is intended to be integrated with:

A host controller
Kiosk software
A suitable power supply
Correct interface wiring
Compatible thermal paper
An enclosure with proper paper access and ventilation

The printer module alone is not a complete kiosk.

Understanding 48 mm Print Width and 57 mm Paper

The PM201 is often described as a 48 mm printer, but the paper itself is wider.

The relationship is:

Paper width: approximately 57 mm
Effective print width: approximately 48 mm

The remaining width provides margins and allows the paper to travel correctly through the mechanism.

This should be considered when designing receipt layouts, logos, QR codes and ticket content.

Typical Printed Content

Depending on the software and command set, the PM201 may be used to print:

Transaction receipts
Queue numbers
Parking tickets
Order confirmations
Visitor tickets
Service acknowledgements
Barcodes
QR codes
Reference numbers
Dates and times
Simple logos and text

Actual barcode, graphics and character support depends on the firmware, driver, command set and application software.

Compatibility

Before integration, compatibility should be reviewed with:

Host operating system
Kiosk controller
USB, RS232 or TTL interface
ESC/POS command support
Power supply
Paper width and thickness
Receipt layout
Cutter-control requirements
Printer driver or SDK
Mounting dimensions
Enclosure design

A physical integration test is recommended before full production.

Things to Verify Before Ordering

Please confirm:

Exact PM201 branding and supplied version
USB + RS232 or USB + TTL requirement
Power-input requirements
Required paper-roll diameter
Paper-near-end sensor requirement
Cutter requirement
Mounting dimensions
Operating system
SDK or driver requirement
ESC/POS compatibility
Cable and connector requirements
Power adapter inclusion
Package contents
Warranty terms

Who Should Consider This Printer?

The PM201 may be appropriate for:

Kiosk manufacturers
System integrators
Ticketing solution providers
Parking-system companies
Queue-management suppliers
Retail automation companies
Payment-terminal developers
Access-control integrators
Equipment manufacturers requiring embedded printing

A standard desktop receipt printer may be more suitable when the printer does not need to be built into another machine.

Building a Complete Kiosk Printing Solution

A typical solution may include:

Kiosk Application → Host Controller → PM201 Printer Module → Thermal Paper → Printed Receipt or Ticket

Other required components may include:

Power supply
Interface cable
Mounting bracket
Kiosk enclosure
Paper-roll holder
Status monitoring
Printer driver or SDK
Receipt-layout software
Maintenance access
Spare thermal paper

Delivery – UAE

NEOTECH® supplies within the United Arab Emirates.

Order Cut-Off: 2:00 PM GST

Handling Time: Typically 1–2 business days, subject to stock confirmation and order verification

Transit Time: Typically 3–5 business days after dispatch

Estimated Delivery: Normally 4–7 business days within the UAE

Standard Shipping: Free standard delivery within the UAE, subject to the applicable order and delivery location

Lead time may vary for non-standard interfaces, customised sensor options or project quantities.

Frequently Asked Questions

Q: Is the PM201 a complete desktop printer?

A: No. It is an embedded thermal printer module intended for installation inside a kiosk, ticketing machine or self-service device.

Q: What is the print width?

A: The effective print width is approximately 48 mm.

Q: What paper width does it use?

A: It uses compatible thermal paper approximately 57 mm wide.

Q: Does it require ink or toner?

A: No. It uses direct thermal printing and requires compatible thermal paper.

Q: What is the maximum print speed?

A: The current official PM201 platform specification lists printing speeds up to approximately 90 mm/s.

Q: Does it include an automatic cutter?

A: The documented PM201 configuration includes an automatic cutter. The final supplied version should still be checked before ordering.

Q: Which interfaces are available?

A: The PM201 is offered in USB + RS232 and USB + TTL configurations.

Q: Does it support paper-near-end detection?

A: Paper-near-end detection is listed as optional or customisable. It should not be assumed included unless stated in the quotation.

Q: Can it print QR codes and barcodes?

A: This depends on the firmware, ESC/POS command support and application software. The required barcode formats should be tested before deployment.

Q: Is it compatible with Windows or Android?

A: The official PM201 platform lists SDK support for Windows, Android and iOS. Actual compatibility depends on the selected driver, interface and application.

Q: Is the power adapter included?

A: A power adapter should not be assumed included unless it is specifically listed in the quotation or package contents.

Q: Can it use a 100 mm diameter paper roll?

A: The documented PM201 design supports rolls with a maximum outer diameter of approximately 100 mm, subject to the kiosk’s roll holder and enclosure design.

Why Choose NEOTECH® UAE

NEOTECH® helps customers review embedded printer modules as part of the complete kiosk design.

Our guidance may include:

Print-width review
Interface selection
Paper-roll planning
Cutter and sensor requirements
Power considerations
Software and SDK compatibility
Mounting and enclosure considerations
Transparent confirmation of included components

Our Customer Commitment

At NEOTECH®, we believe successful kiosk projects begin with confirming the complete technical requirement before selecting the printer module.

There is absolutely no obligation or pressure to proceed with the purchase with us.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

Contact NEOTECH® UAE

NEOTECH®
Operated by NEOLYN TECHNOLOGY LLC

Email: support@neotech.ae

Address:
Store 13, Computer Building
Al Fahidi, Bur Dubai
Dubai 44245
United Arab Emirates

Disclaimer - NEOTECH® UAE

The PM201 is an embedded thermal printer platform and may be supplied under different branding or configuration arrangements. The POSTECH name should be used only where the actual supplied unit or commercial documentation carries that branding.

Specifications, interface combinations, sensor options, control boards, cables, power supplies, mounting parts and package contents may vary according to the selected version and supplier.

Print speed, printhead life and cutter life are manufacturer test values obtained under defined conditions. Actual performance depends on paper quality, print density, duty cycle, power supply, environment, maintenance and software configuration.

Compatibility testing is recommended before integrating the printer into a production kiosk or self-service system.
