Efficient full-page document capture for ID and passport verification workflows.

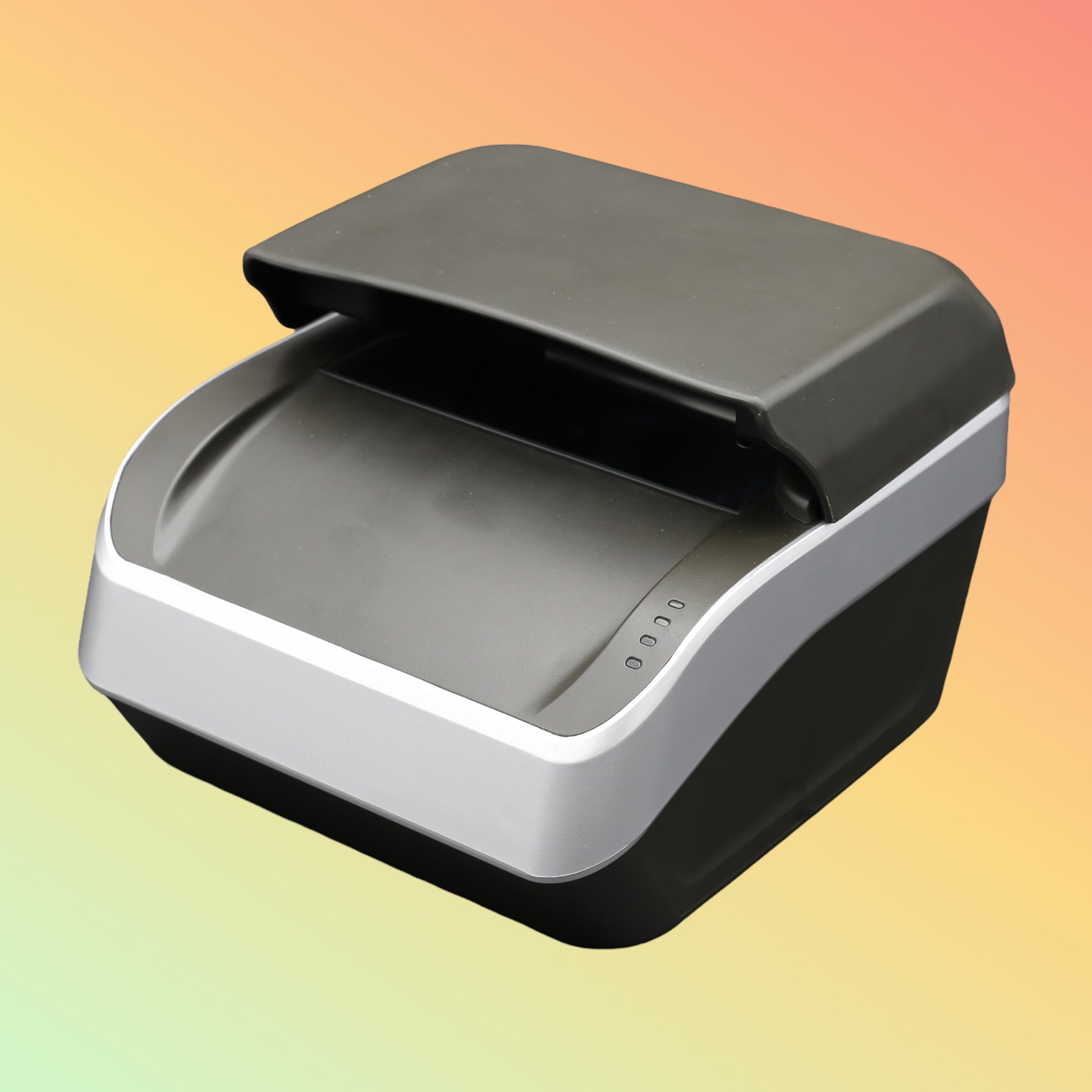

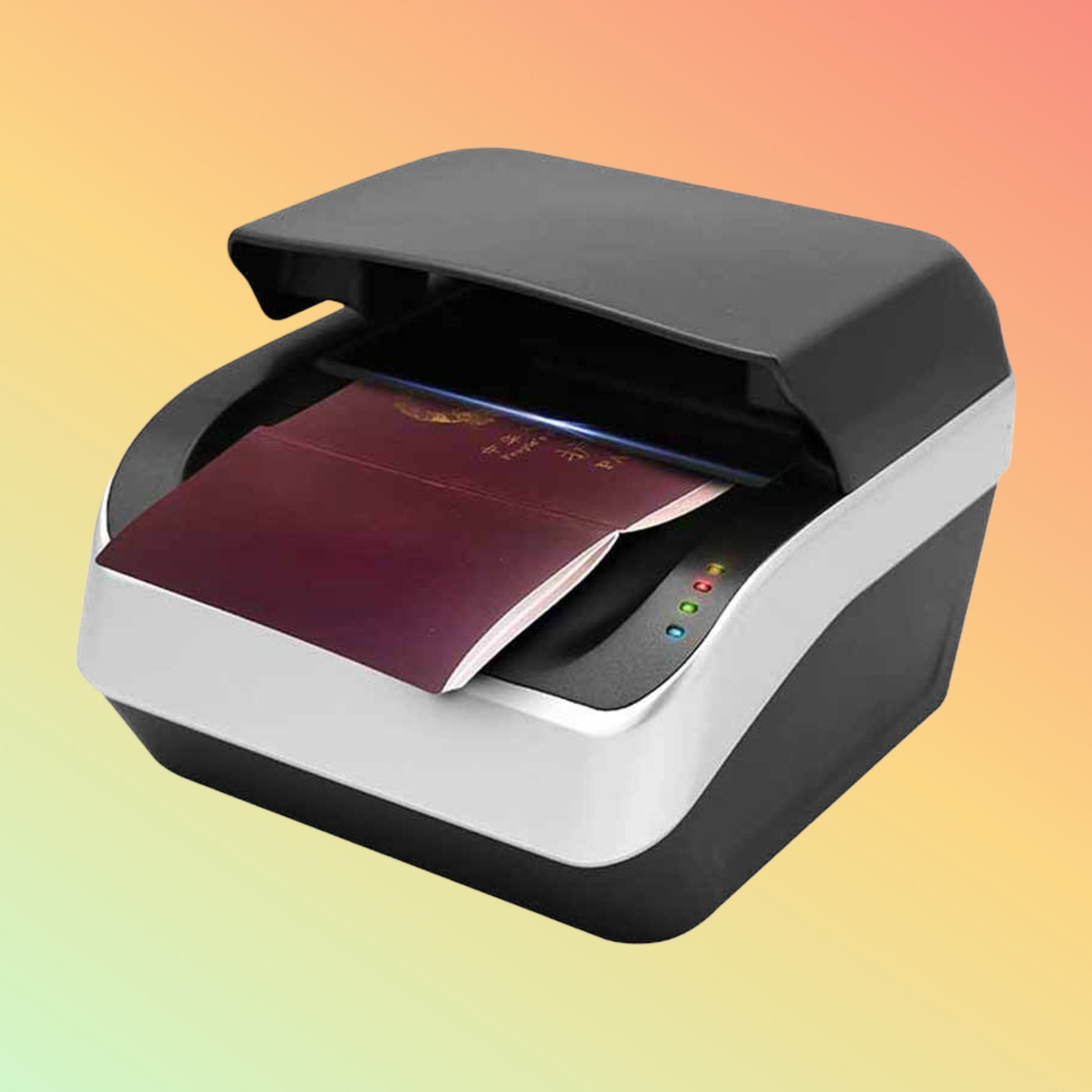

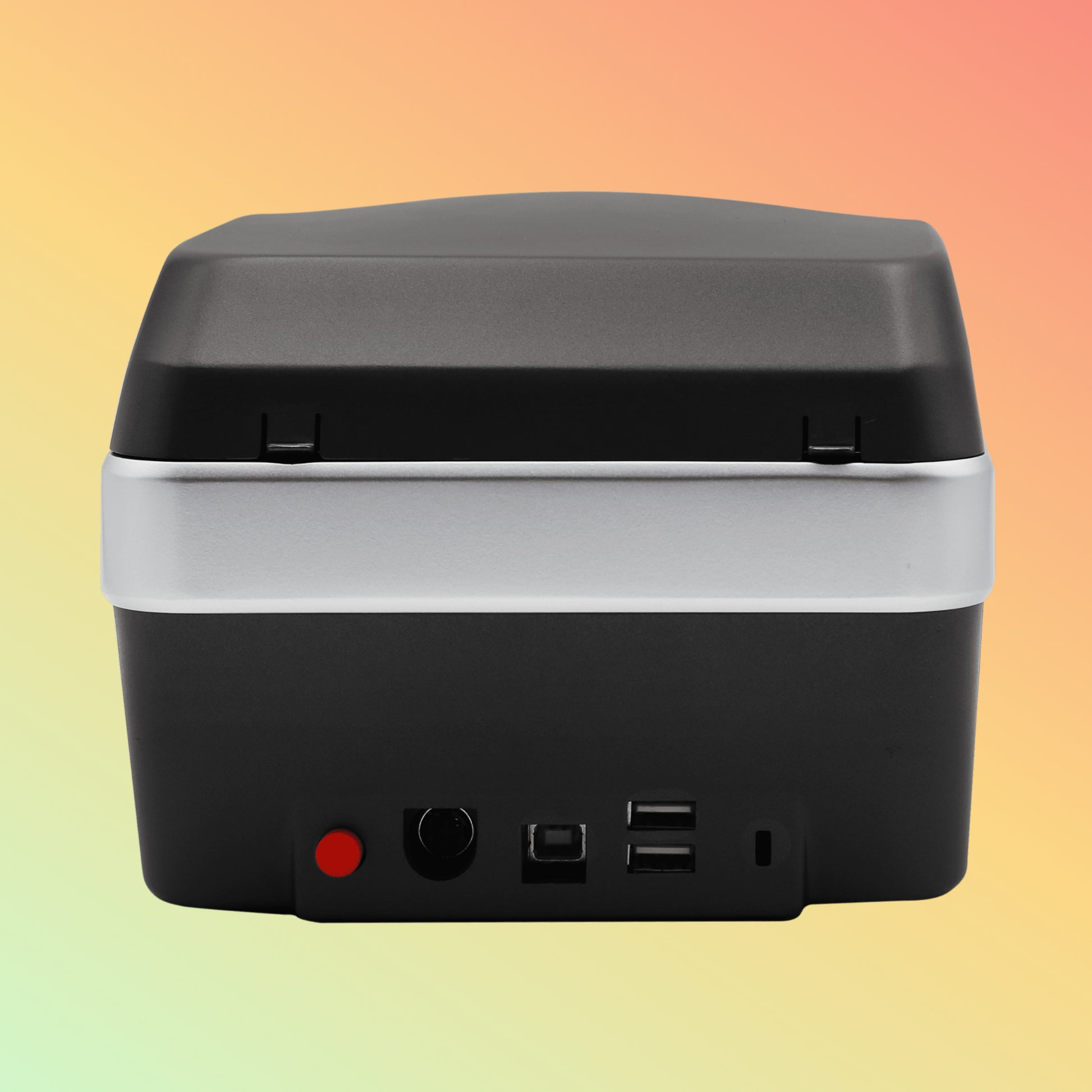

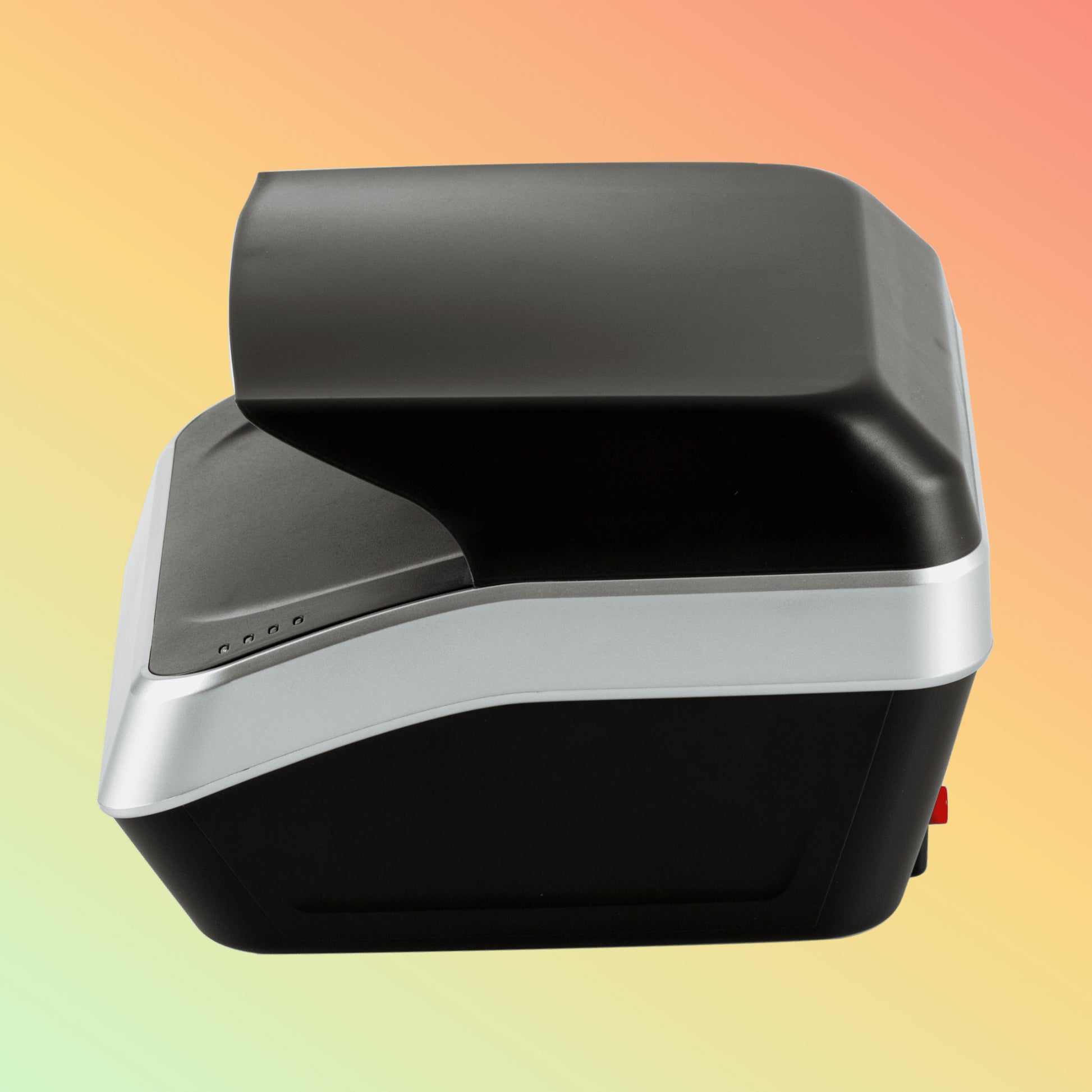

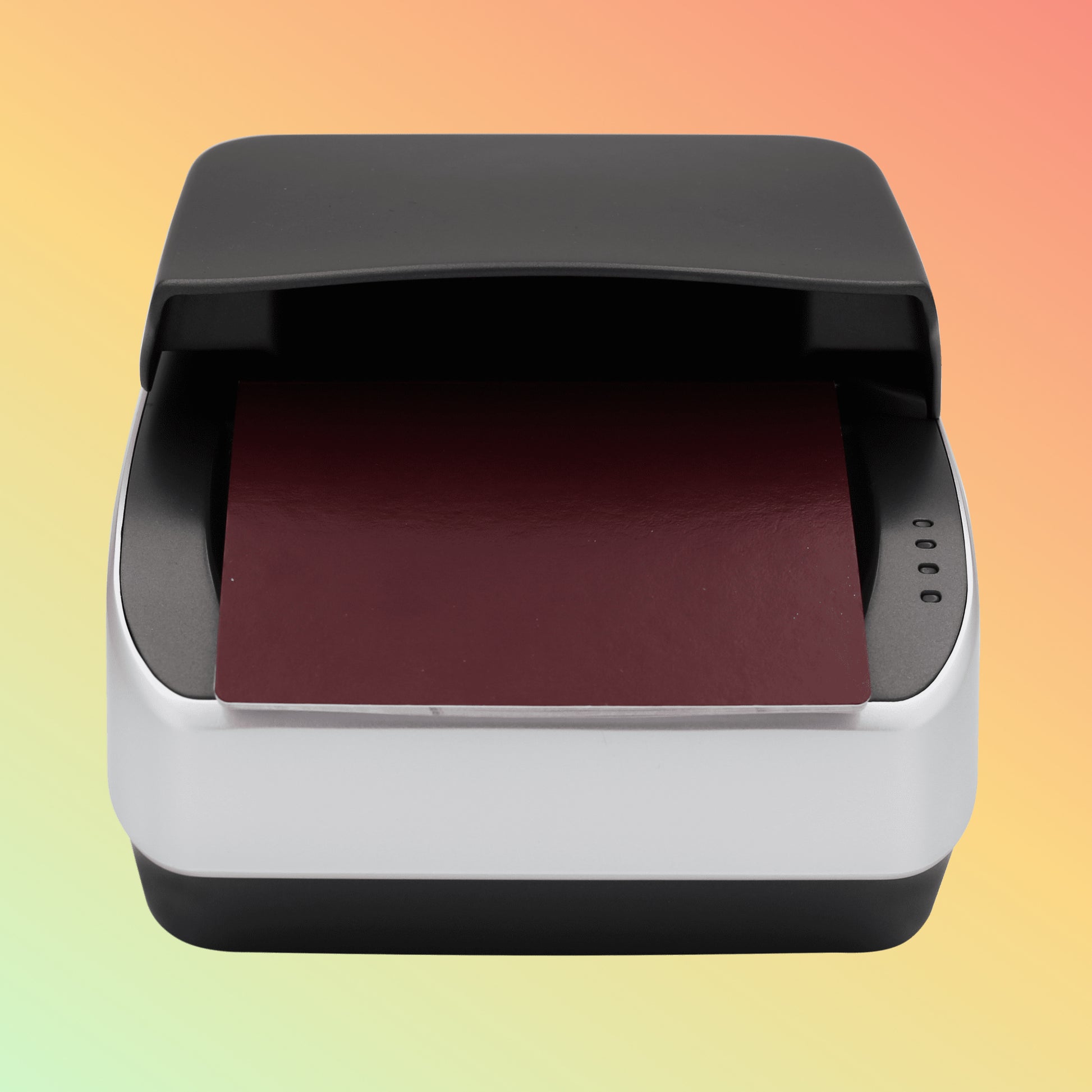

The QR1000(I) Full Page Passport Reader is a compact document reader designed for capturing and processing travel and identity documents. It uses OCR technology and multi-format barcode decoding to support structured data extraction from passports, visas, ID cards, and other documents.

This model is suitable for UAE-based applications including hospitality, access control, and administrative environments where reliable document capture is required.

Key Features

• Full-page document scanning with OCR-based data extraction
• Supports ICAO-compliant and non-ICAO documents
• Optional RFID support (model dependent)
• Multi-format barcode reading (1D & 2D including PDF417, QR)
• IR and visible light imaging for document capture
• SDK available for software integration
• Suitable for kiosk and desktop deployment

Technical Specifications

Document Support

• ICAO 9303 compliant documents:
• ID-1 (ID cards)
• ID-2 (Visas)
• ID-3 (Passports)
• Visual Inspection Zone (customizable per application)

Barcode Support

• 1D: Code 128, Code 39, Interleaved 2 of 5
• 2D: PDF417, QR Code, Data Matrix, Aztec

Imaging

• Resolution: 500 DPI
• Sensor: CMOS, 5.0 MP (2592 × 1944)
• Illumination: Visible + IR (850nm)
• Color Depth: 24-bit
• Image Formats: JPG, BMP, PNG
• Field of View: 127 mm × 88 mm

Software & Compatibility

• OS Support:
• Windows (7, 8, 10, Server 2003/2008)
• Linux (Ubuntu, CentOS, RedHat)
• Android
• SDK:
• OCR SDK with DLLs, OCX, WebSocket, demo tools
• Programming:
• C#, C/C++, Java, Delphi, VB6, VB.NET

Security Features

• UV dull paper detection
• MRZ comparison
• Portrait comparison
• IR ink verification

Hardware

• Dimensions: 175 × 199 × 140 mm
• Weight: ~1.75 kg (net)
• Interface: USB 2.0
• Indicators: LED status (Power, Ready, Error, Warning)
• Buzzer: Built-in

Power

• Input: AC 100–240V, 50–60Hz
• Output: DC 12V, 2A

Environment

• Operating Temperature: -10°C to 50°C
• Storage Temperature: -20°C to 50°C
• Humidity: 20%–95% (non-condensing)

Applications

• Hotel and hospitality check-in
• Access control and visitor management
• Administrative and document processing systems
• Financial services and KYC workflows
• Self-service kiosks

Purpose of Use

The QR1000(I) is used for capturing document images and extracting structured data using OCR and barcode decoding. It supports environments where identity verification and document processing are part of daily operations.

Why NEOTECH® UAE

• UAE-based supply and technical support
• Transparent, compliance-focused product information
• Suitable for ID, security, and automation solutions
• Direct support via WhatsApp and Email
• Focus on real deployment and system compatibility

FAQ

Q: Does this model support RFID e-passport reading?
A: RFID support is optional and depends on the specific configuration.

Q: Can it scan full passport pages and extract MRZ data?
A: Yes, it captures full-page images and supports OCR-based MRZ data extraction with compatible software.

Q: Is it suitable for kiosk integration?
A: Yes, it is designed for both kiosk and desktop use.
