Compact 203 dpi direct-thermal desktop printer with Ethernet connectivity for labels, wristbands and identification applications

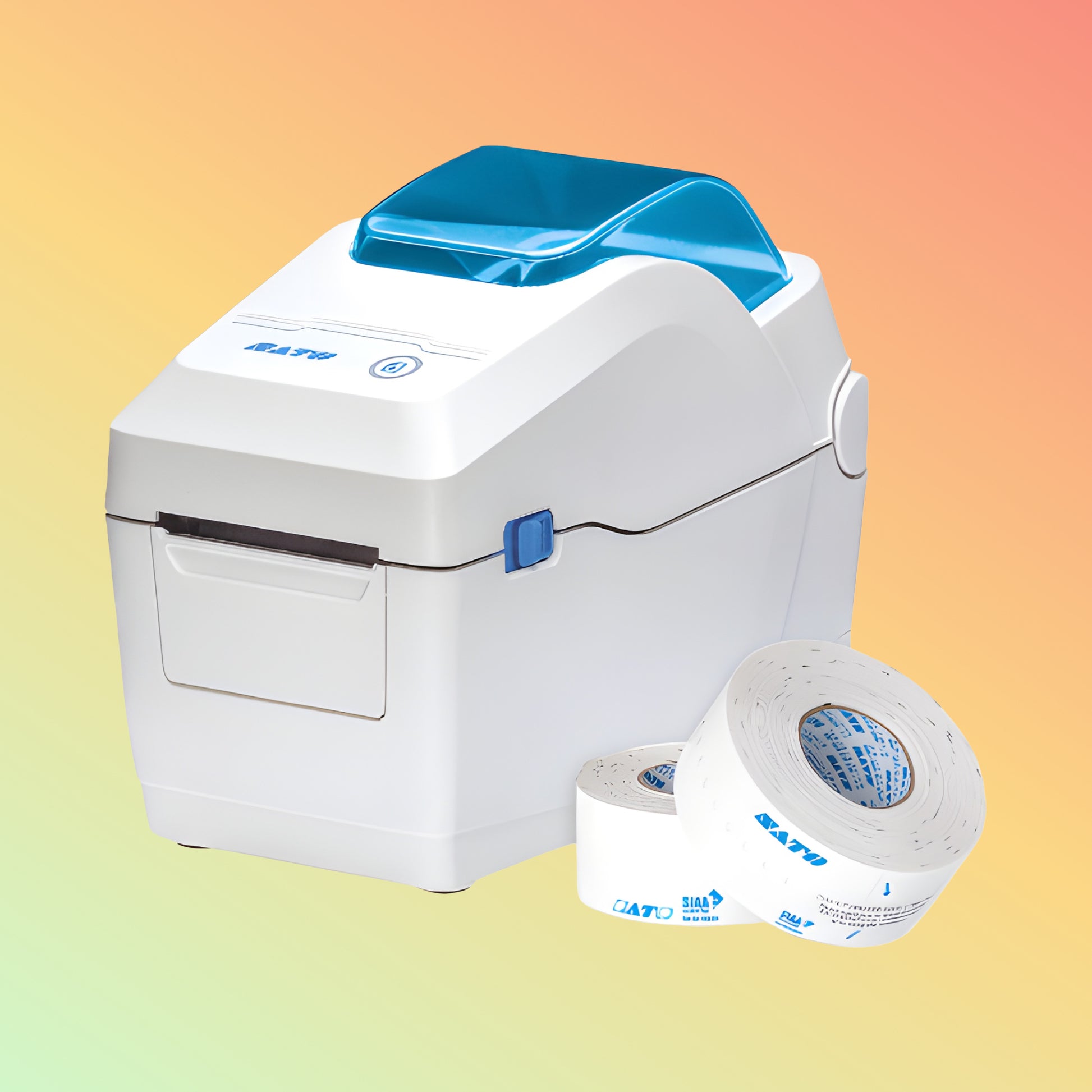

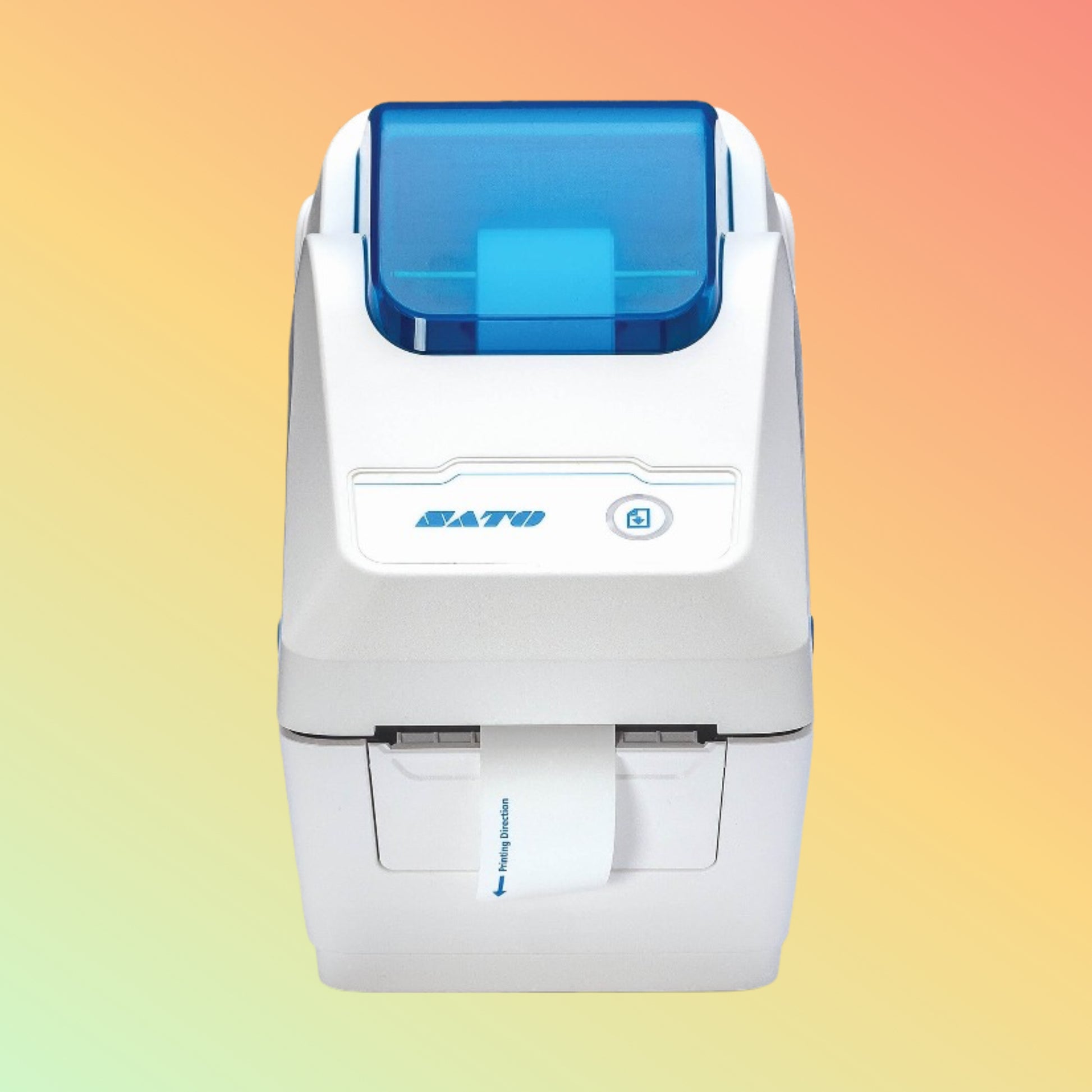

The SATO WS208-2DT-LAN is a compact direct-thermal desktop printer from SATO’s WS2 family.

The WS208 provides 203 dpi resolution, direct-thermal printing and print speeds up to 7 inches per second (177 mm/s). It is designed for narrow-format media applications where a compact desktop footprint and straightforward network integration are important.

SATO currently positions the WS2 platform particularly for wristband and inpatient label printing, while its media and barcode capabilities also make it relevant to other identification and label workflows.

Exact Model Identification

Brand: SATO

Series: WS2

Model: WS208

Configuration Reference: WS208-2DT-LAN

Printing Method: Direct thermal

Resolution: 203 dpi / 8 dots per mm

Network: Ethernet / LAN

Unit Input Marking Provided: 24V DC, 2.4A

Because SATO WS2 configurations can differ by connectivity and options, the complete model/configuration should be checked before ordering.

Key Features

• Direct-thermal printing
• 203 dpi resolution
• Print speed up to 7 ips / 177 mm/s
• Compact 2-inch-class desktop printer
• Ethernet connectivity
• USB connectivity on the WS2 platform
• Maximum print area width up to approximately 60 mm / 2.36 in
• Continuous and tear-off modes
• Optional cutter mode
• Optional peel-present mode
• Reflective media sensor
• Transmissive media sensor
• 1D barcode support
• 2D barcode support
• QR Code support
• Data Matrix support
• PDF417 support
• Aztec support
• SZPL, SEPL and SDPL emulation support
• Compact footprint for desktop installations

Printing Performance

The WS208 supports selectable print speeds of:

• 2 ips / approximately 50 mm/s
• 3 ips / approximately 76 mm/s
• 4 ips / approximately 101 mm/s
• 5 ips / approximately 127 mm/s
• 6 ips / approximately 152 mm/s
• 7 ips / approximately 177 mm/s

SATO specifies 2 and 3 ips for peel-off mode.

The appropriate speed should be selected according to label material, print density and required output quality.

Print Resolution

Resolution: 203 dpi / 8 dots per mm

The WS208 is the 203 dpi member of the WS2 family. The related WS212 model provides 300 dpi.

This distinction matters when customers are comparing small-text, barcode or graphics requirements.

Print Width and Media

SATO currently lists a WS208 maximum print width of approximately:

2.36 inches / 60 mm

The WS2 family uses roll media and supports a compact label/wristband format rather than wide industrial-label applications.

Media selection should be confirmed according to:

• Label width
• Label length
• Gap or mark type
• Adhesive requirements
• Direct-thermal coating
• Application environment

Direct Thermal Printing

The WS208 uses direct thermal printing.

That means it prints onto compatible heat-sensitive media and does not require:

• Ink
• Toner
• Thermal-transfer ribbon

This can simplify supply management for applications where direct-thermal media is appropriate.

Direct-thermal labels are generally best selected according to the required storage period and exposure conditions.

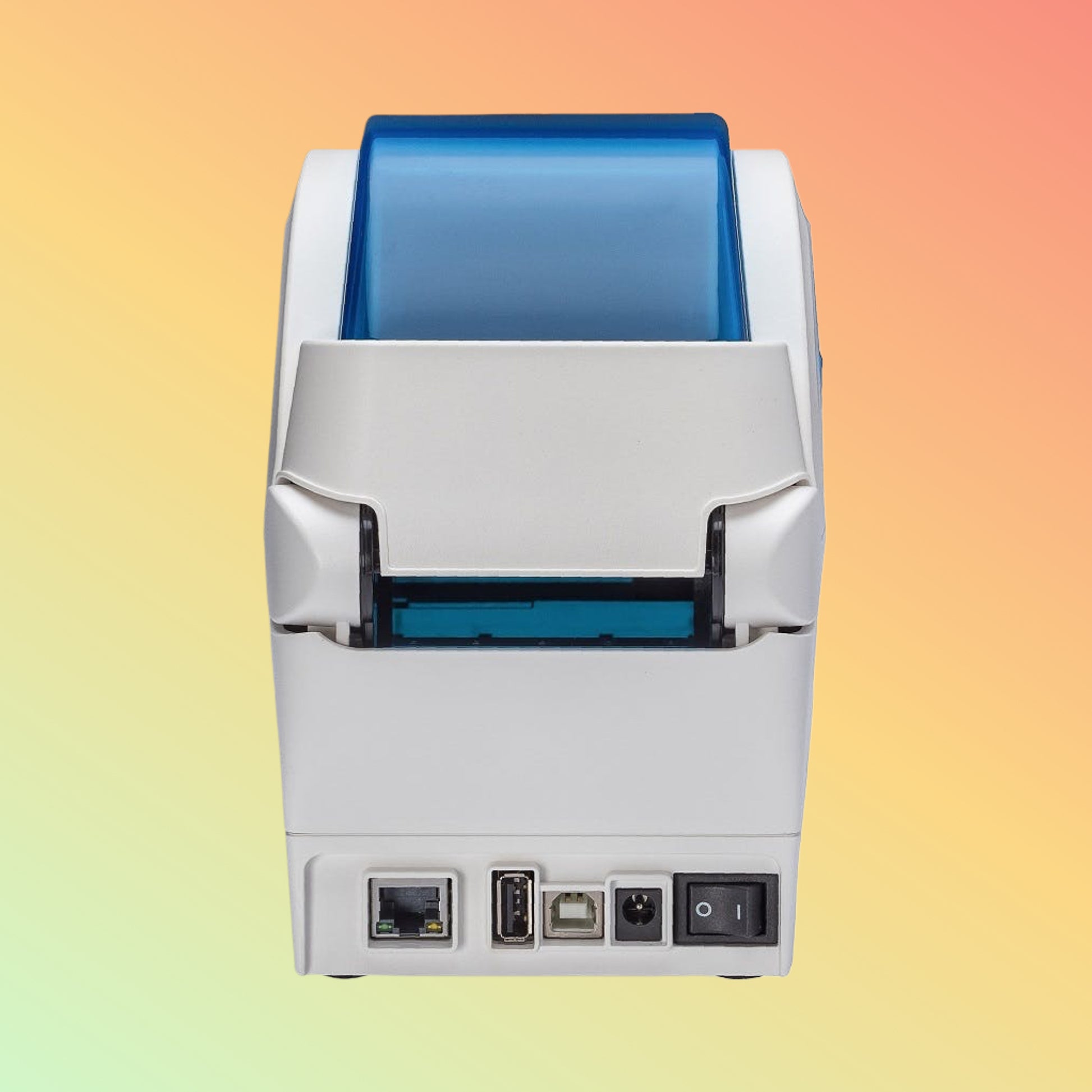

Connectivity

SATO documentation for the WS2 family lists:

• USB
• Ethernet / LAN

Wireless connectivity such as WLAN is available as an option on supported configurations.

For this page, because your unit is identified as WS208-2DT-LAN, Ethernet should be treated as a core feature of the listed configuration.

Barcode Support

SATO lists support for common linear barcodes including:

• Code 39
• Code 93
• Code 128
• CODABAR / NW-7
• EAN-8
• EAN-13
• GS1 DataBar
• GS1-128
• Interleaved 2 of 5
• Industrial 2 of 5
• JAN-8
• JAN-13
• Matrix 2 of 5
• MSI
• POSTNET
• UPC-A
• UPC-E

2D Barcode Support

The WS208 also supports 2D symbologies including:

• PDF417
• Micro PDF
• MaxiCode
• GS1 Data Matrix
• Data Matrix ECC200
• QR Code
• Composite symbologies
• Aztec

Actual barcode readability depends on label material, print quality, barcode size and scanner requirements.

Printer Emulation

SATO lists support for:

• SZPL
• SEPL
• SDPL

These emulations may help integration where an existing label-printing environment uses compatible command languages.

Software compatibility should still be tested against the actual application.

Memory and Processing

Current SATO WS2 documentation lists:

Flash ROM: 16 MB

User Memory: 8 MB

SDRAM: 32 MB

USB Storage: Up to 32 GB FAT32

Processor: 32-bit RISC microprocessor

Media Sensors

The printer includes:

• Movable reflective sensor
• Fixed transmissive media sensor
• Head-open switch

These sensors support standard label detection workflows using gaps or marks, depending on media configuration.

Printing Modes

Standard operating modes include:

• Continuous mode
• Tear-off mode

Optional configurations include:

• Cutter mode
• Peel-present / peeler mode

The required option should be confirmed before ordering because cutter and dispenser functions are not necessarily included with every WS208.

Applications

The SATO WS208 may be considered for:

• Patient wristbands
• Inpatient labels
• Healthcare identification
• Laboratory labels
• Pharmacy labels
• Small barcode labels
• Inventory identification
• Asset labels
• Shipping and logistics labels
• General desktop label printing

SATO particularly positions the WS2 platform around patient-safety and healthcare identification workflows, including wristbands and inpatient labels.

Purpose of Use

The WS208 is intended for organizations needing a compact direct-thermal printer for narrow-format labels or wristbands.

It may be especially useful where:

• Counter or desk space is limited
• 203 dpi is sufficient
• Ethernet network printing is required
• Direct-thermal media is appropriate
• Barcode and 2D-code printing is needed

WS208 vs WS212

The WS208 and WS212 belong to the same WS2 family but differ in resolution and maximum speed.

WS208

• 203 dpi
• Up to 7 ips
• Suitable where speed is prioritized

WS212

• 300 dpi
• Up to 5 ips
• Suitable where finer print resolution is required

The correct choice depends on label size, barcode density and required text/graphics detail.

Power Requirement

Your specific printer label identifies:

Input: 24V DC / 2.4A

I would keep this as a unit-specific specification for WS208-2DT-LAN.

SATO’s broader WS2 documentation lists AC 100–240 V input through the applicable power supply, so the adapter and printer-input specifications should not be confused.

Things to Verify Before Ordering

Before ordering, confirm:

• Exact model: WS208
• Configuration: WS208-2DT-LAN
• 203 dpi requirement
• Ethernet requirement
• USB requirement
• Label width
• Direct-thermal media compatibility
• Cutter requirement
• Peel/dispenser requirement
• Barcode formats required
• Software / emulation compatibility
• Power supply and plug type
• Required quantity
• Current availability

Who Should Consider the WS208-2DT-LAN?

This configuration may be relevant for:

• Hospitals
• Clinics
• Laboratories
• Pharmacies
• Warehouses
• Logistics operations
• Inventory departments
• Businesses requiring compact network label printing

For larger industrial label widths or thermal-transfer applications, a different SATO printer family may be more appropriate.

Why NEOTECH® UAE

NEOTECH® focuses on matching the printer to the actual media, software and connectivity requirement.

For the SATO WS208, customers should confirm the exact configuration, print resolution, media size, Ethernet requirement and optional cutter/peeler functions before ordering.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

FAQ - SATO WS208-2DT-LAN

Q: What is the SATO WS208-2DT-LAN?
A: It is a 203 dpi direct-thermal WS208 desktop printer configuration with LAN/Ethernet connectivity.

Q: What resolution does the WS208 use?
A: 203 dpi / 8 dots per mm.

Q: How fast does the WS208 print?
A: Up to 7 ips / approximately 177 mm/s.

Q: Does the WS208 require a ribbon?
A: No. It uses direct-thermal printing and requires compatible direct-thermal media.

Q: Does WS208 support Ethernet?
A: Yes. Ethernet is supported on the WS2 platform, and your WS208-2DT-LAN configuration specifically indicates LAN connectivity.

Q: Can it print QR codes?
A: Yes. SATO lists QR Code among the supported 2D symbologies.

Q: Can it print patient wristbands?
A: Yes. SATO positions the WS2 platform for patient wristbands and inpatient labels.

Q: Does it support a cutter?
A: A full-cutter option is available, but it should not be assumed to be included with every unit.

Q: What is the difference between WS208 and WS212?
A: WS208 is 203 dpi and supports up to 7 ips; WS212 is 300 dpi and supports up to 5 ips.
