Compact Fixed-Mount 2D Barcode & QR Code Scanner for Self-Service Kiosks and Embedded Applications

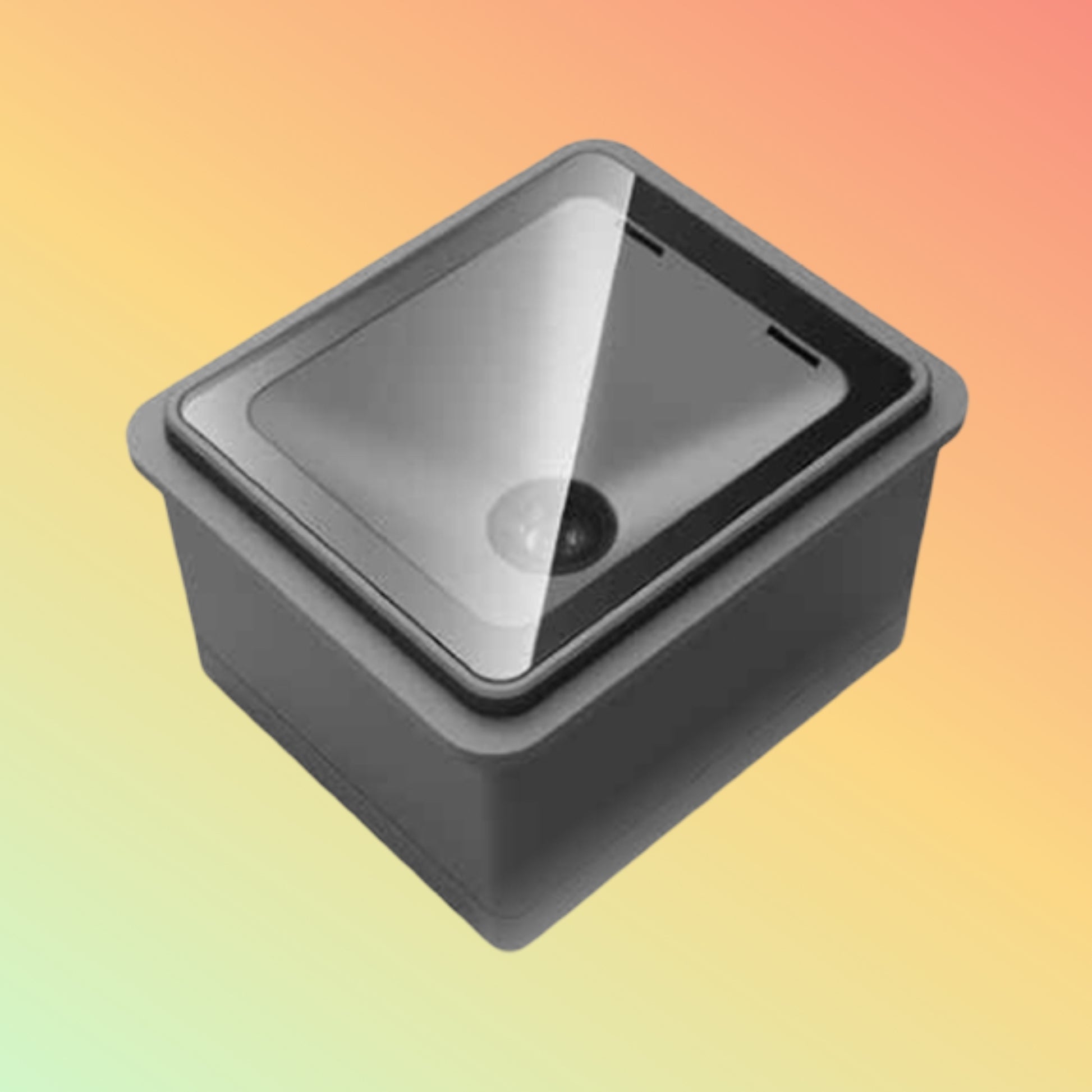

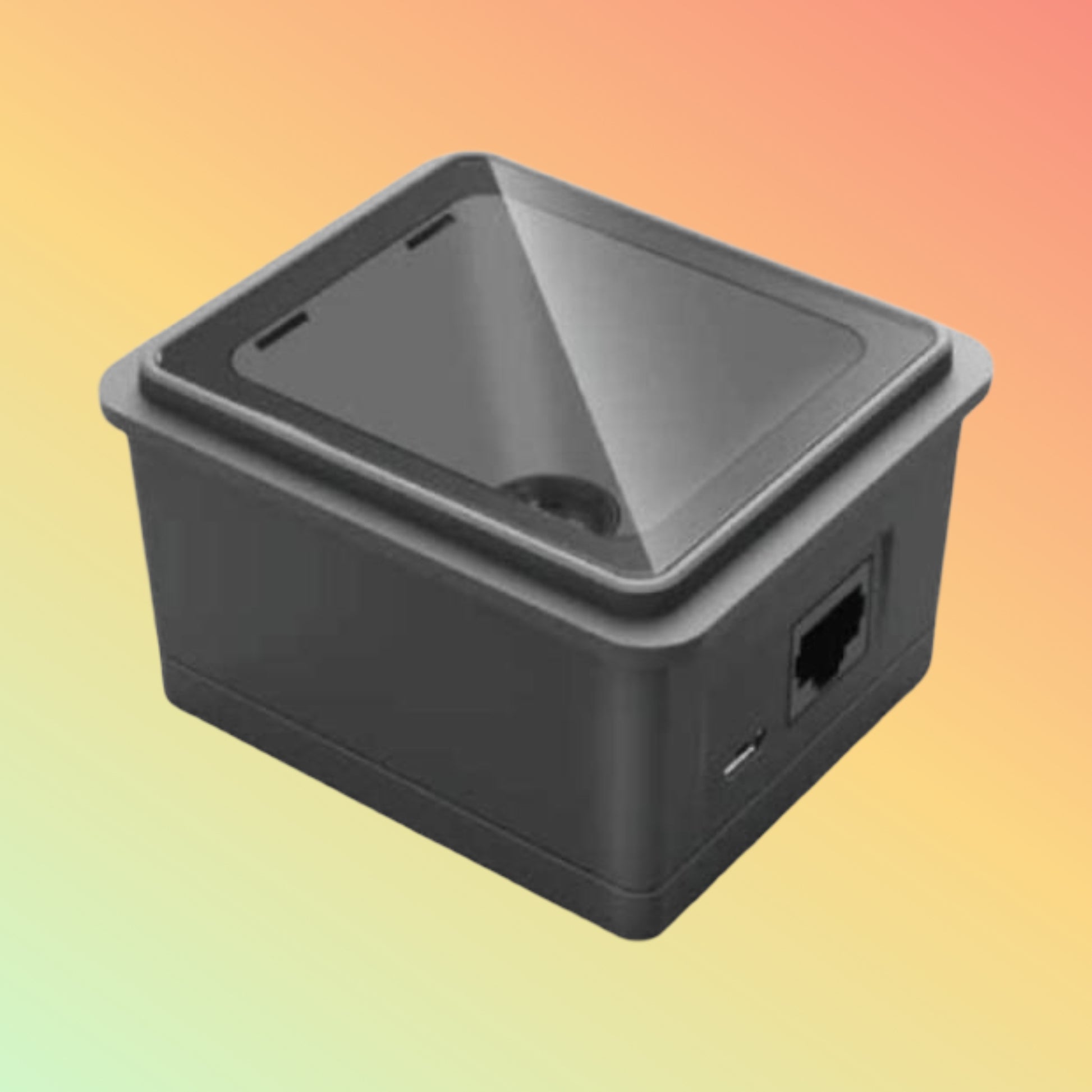

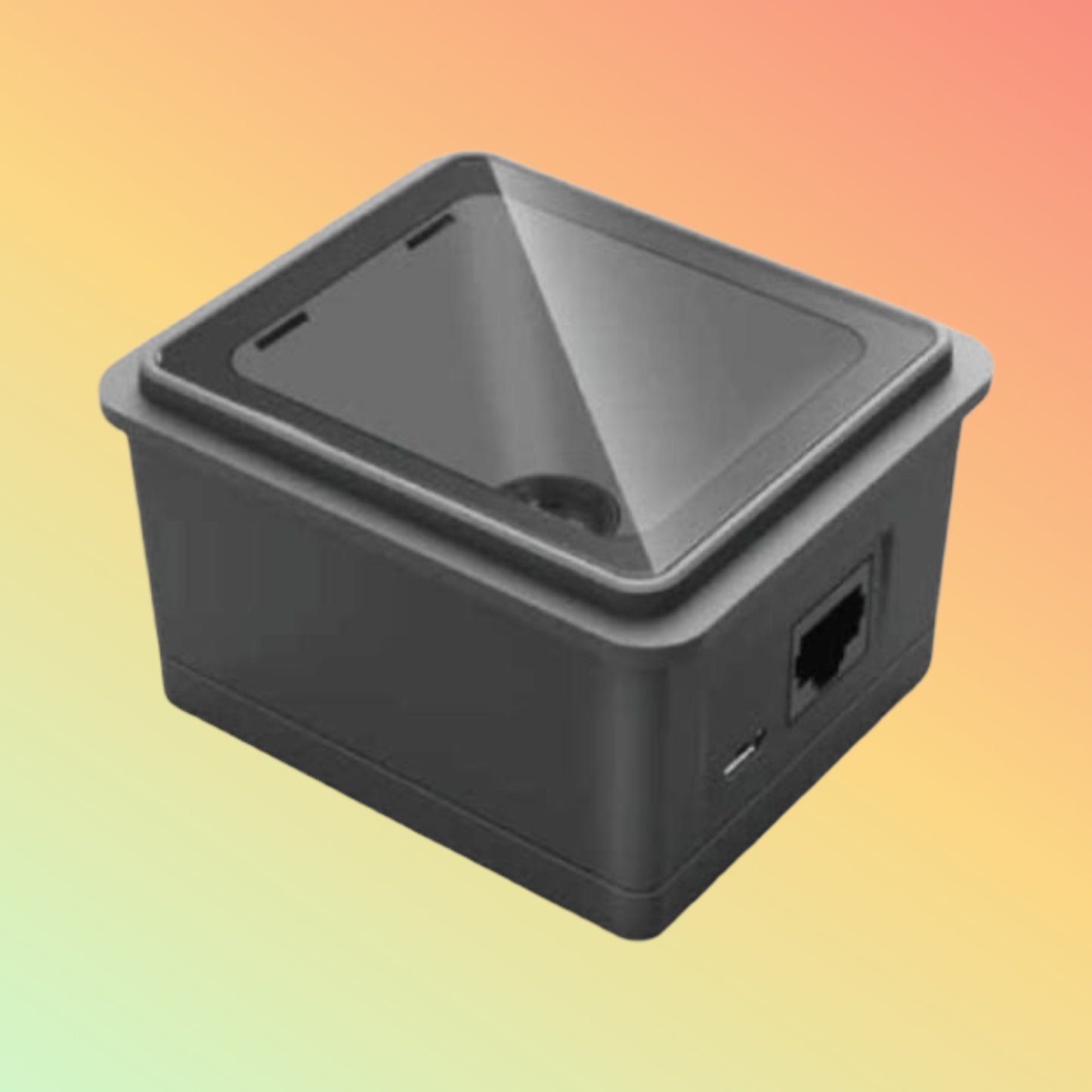

The SuperLead 7160N Mini Kiosk Barcode Scanner is a compact fixed-mount imaging scanner designed for embedded applications such as self-service kiosks, ticketing systems, access control terminals and automated equipment. It supports reading a wide range of 1D and 2D barcode symbologies from printed media and compatible electronic displays.

Its compact dimensions and multiple communication interfaces make it suitable for OEM integration where space is limited.

Key Features

✔ Fixed-mount embedded barcode scanner

✔ Reads both 1D and 2D barcode symbologies

✔ Supports QR Code decoding

✔ Large scanning window

✔ Object Auto Sense detection

✔ Supports barcode reading from compatible mobile phone screens

✔ USB and RS232 communication interfaces

✔ Omnidirectional barcode reading

✔ Three selectable operating modes

✔ Supports multiple language barcode data transmission

✔ Designed for kiosk and embedded system integration

Technical Specifications

• Brand: SuperLead
• Model: 7160N
• Scanner Type: Fixed-Mount 2D Barcode Scanner
• Scanning Technology: CMOS Image Sensor
• Image Sensor Resolution: 640 × 480 pixels
• Light Source: 6500K LED
• Field of View: 72° (Horizontal) × 64° (Vertical)
• Roll Angle: 360°
• Pitch Angle: ±65°
• Yaw Angle: ±60°
• Minimum Print Contrast: 20%
• Motion Tolerance: Greater than 2 m/s
• Minimum Resolution: Greater than 3.9 mil
• Interfaces: USB, RS232
• Operating Voltage: 3.3–5 VDC
• Operating Current: Approximately 200 mA
• Dimensions: 77.5 × 66 × 45 mm
• Weight: Approximately 75 g

Supported 1D Barcode Symbologies

• UPC
• EAN
• Code 128
• Code 39
• Code 93
• Code 11
• Codabar
• Interleaved 2 of 5
• Matrix 2 of 5
• GS1 DataBar
• MSI Plessey
• China Postal
• Korean Postal
• Other supported 1D symbologies

Supported 2D Barcode Symbologies

• QR Code
• Micro QR
• PDF417
• MicroPDF417
• Data Matrix
• Aztec
• MaxiCode
• Han Xin Code
• Other supported 2D symbologies

Decode Range (Reference Values)

• PDF417 (6.88 mil): 0–50 mm
• Data Matrix (10 mil): 0–50 mm
• UPC-A (13 mil): 5–110 mm
• QR Code (20 mil): 0–100 mm

Environmental Specifications

• Operating Temperature: -30°C to 70°C
• Storage Temperature: -40°C to 150°C
• Humidity: 0%–95% RH (Non-condensing)
• Ambient Light: Up to 100,000 Lux
• Drop Resistance: Designed to withstand drops up to 1.5 metres (manufacturer specification)

Applications

Suitable for:

• Self-service kiosks
• Ticket vending machines
• Access control systems
• Visitor management systems
• Parking terminals
• Retail self-checkout
• Hospitality kiosks
• Healthcare registration systems
• Payment terminals
• Industrial automation
• OEM embedded equipment

Purpose of Use

The SuperLead 7160N is intended for fixed installation in equipment requiring automatic barcode or QR code reading from printed labels, vouchers, tickets or compatible electronic displays.

It is commonly used where compact size and embedded installation are required.

Compatibility

The scanner may be integrated with compatible systems supporting:

• Windows
• Linux
• Android
• Embedded operating systems
• Self-service kiosks
• POS systems
• Industrial controllers
• Custom OEM applications

System compatibility depends on hardware, interface selection and software implementation.

Why Choose NEOTECH® UAE

✔ Transparent product information and sourcing communication

✔ UAE-based technical assistance

✔ Support for barcode, POS, kiosk and automation hardware

✔ Assistance with product compatibility before purchase

✔ Clear return and refund policy

✔ Business-focused hardware supply solutions

✔ Support for OEM and system integration projects

Delivery – UAE

Service Area: United Arab Emirates

Order Cut-Off: 2:00 PM GST

Handling Time: 1–2 business days (when stock is available)

Transit Time: 3–5 business days within UAE

For internationally sourced products or project quantities, delivery schedules will be confirmed after order verification.

Frequently Asked Questions

Category: Barcode Scanner

Q: What barcode types does the SuperLead 7160N support?

A: The scanner supports a wide range of 1D and 2D barcode formats including QR Code, PDF417, Data Matrix, Code 128, EAN, UPC and other common symbologies.

Category: Display Scanning

Q: Can the scanner read barcodes displayed on mobile phones?

A: According to the manufacturer, the scanner supports reading compatible barcodes displayed on mobile device screens.

Category: Connectivity

Q: Which communication interfaces are available?

A: The SuperLead 7160N supports USB and RS232 interfaces.

Category: Installation

Q: Is this scanner intended for handheld use?

A: No. The SuperLead 7160N is designed as a fixed-mount embedded scanner for kiosks and OEM equipment.

Category: Integration

Q: Can NEOTECH® assist with selecting a suitable scanner for my kiosk project?

A: Yes. We can help review your application requirements and recommend suitable barcode scanning solutions based on your project.
