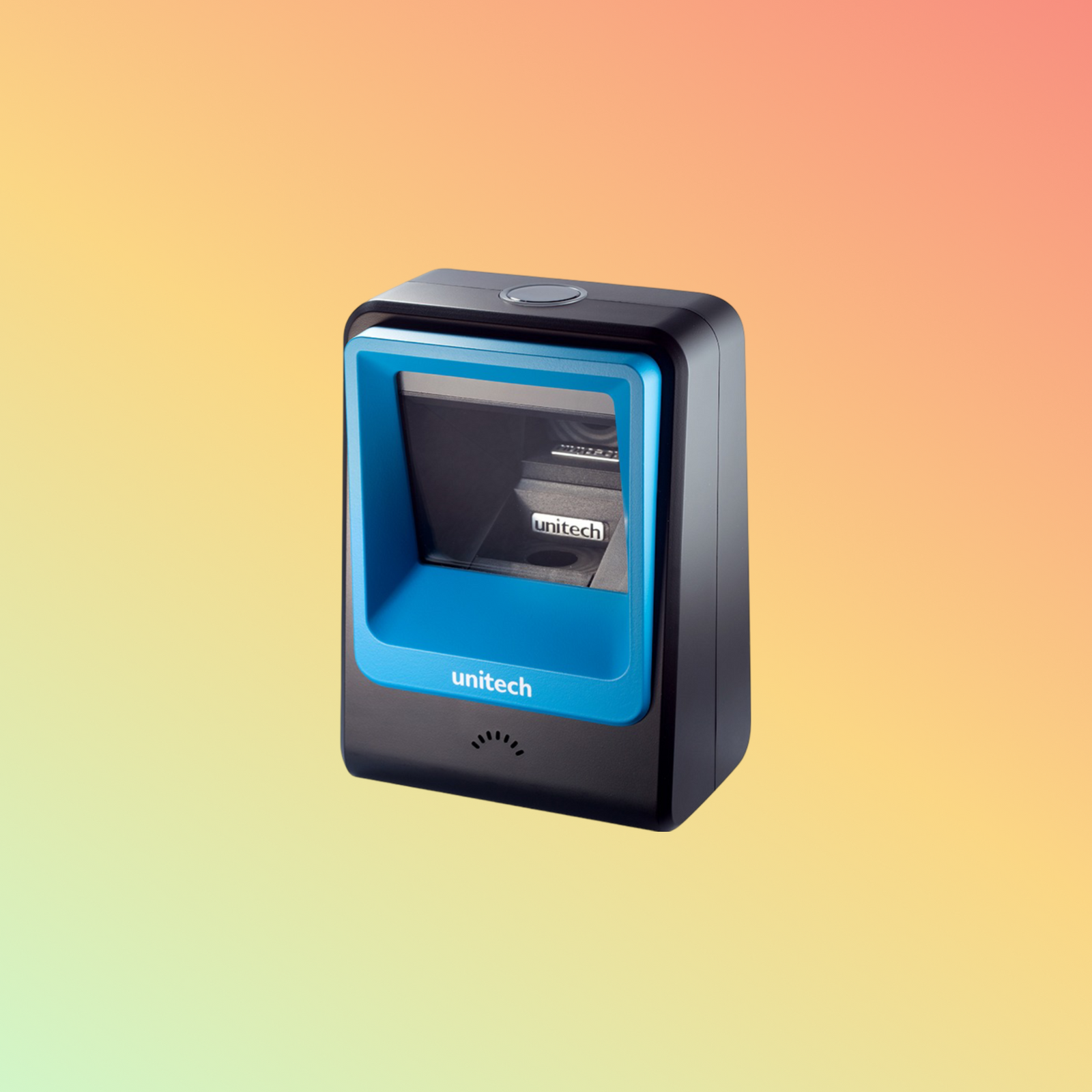

Unitech TS100 Presentation Scanner

Unitech TS100-SUCB00-SG 2D Presentation Barcode Scanner | NEOTECH® UAE

Compact hands-free 1D/2D presentation scanner with a large scan window, fast area imaging, mobile-screen barcode reading and USB connectivity for retail, hospitality, office, pharmacy, ticketing and fixed-workstation applications.

Product Status & Manufacturer Identity

Product Status: Active / Current Product
Brand: Unitech
Manufacturer: Unitech Electronics Co., Ltd.
Product Family: TS100
Exact Model / Part Number: TS100-SUCB00-SG
Product Type: 2D Presentation Barcode Scanner
Configuration: TS100 2D Imager with USB Cable
Manufacturer Lifecycle Status: Currently listed in Unitech's scanner product range
Discontinued: No current manufacturer discontinuation notice identified
Official Replacement Model: Not applicable / not identified

The Unitech TS100-SUCB00-SG is a compact presentation barcode scanner designed for convenient hands-free reading of common 1D and 2D barcodes.

Unitech identifies TS100-SUCB00-SG as a TS100 2D imager presentation-scanner configuration supplied with a USB cable.

Customers should verify the exact part number, required barcode types, host interface and application compatibility before ordering.

Meta Title

Unitech TS100-SUCB00-SG 2D Scanner UAE | NEOTECH®

Meta Description

Unitech TS100-SUCB00-SG 2D presentation scanner with 60 fps imaging, mobile barcode reading and USB for retail, POS and counter applications.

Product Overview

The Unitech TS100-SUCB00-SG is a desktop presentation scanner developed for environments where operators need quick and convenient barcode capture without repeatedly picking up a handheld scanner.

Its presentation-style design allows a printed barcode, product, card, document or supported barcode displayed on a mobile device to be presented in front of the scanning window.

A 1280 × 800 pixel image sensor and scanning rate of up to 60 frames per second support responsive capture of common 1D and 2D barcode formats.

The TS100 can be particularly useful at retail checkout counters, reception desks, ticketing points, pharmacy counters and other fixed workstations where frequent hands-free barcode scanning forms part of the daily workflow.

Professional Highlights

• 1D and 2D barcode scanning
• Exact Unitech part number: TS100-SUCB00-SG
• Desktop / presentation scanner design
• Hands-free barcode capture
• Large rectangular scanning window
• 1280 × 800 pixel image sensor
• Up to 60 frames per second
• Presentation and trigger scanning modes
• Auto-sensing operation
• Reads supported printed barcodes
• Reads supported barcodes from smartphone and tablet displays
• USB connectivity
• USB cable included with this documented configuration
• Compact countertop footprint
• Adjustable scanning orientation
• Audio and LED scan indication
• Suitable for frequent fixed-counter scanning workflows

Optical & Scanning Specifications

Scanner Type: 2D area imager
Image Sensor: 1280 × 800 pixels
Illumination: 650 nm red LED
Scanning Rate: Up to 60 frames per second
Scanning Modes: Presentation and trigger
Skew Angle: Horizontal 50° / Vertical 35°
Pitch Angle: ±65°
Barcode Media: Printed media and supported electronic displays

Actual barcode-reading performance depends on factors including barcode symbology, size, print quality, contrast, screen characteristics, scanner configuration and operating environment.

Supported 1D Barcodes

The TS100 supports commonly used linear barcode formats, including:

• Code 128
• EAN-8
• EAN-13
• UPC-A
• UPC-E
• Code 39
• Code 93
• Codabar
• Interleaved 2 of 5
• GS1 DataBar families

Additional supported symbologies may depend on configuration and firmware.

Supported 2D Barcodes

Supported two-dimensional formats include:

• QR Code
• Micro QR
• Data Matrix
• PDF417
• MicroPDF417
• Aztec
• MaxiCode
• Han Xin

For specialized, regulated or application-specific barcode requirements, verify the exact required symbology before ordering.

Mobile-Screen Barcode Reading

The TS100 is designed to capture supported barcodes from conventional printed media as well as electronic displays.

This makes it useful for workflows involving:

• Mobile coupons
• Electronic membership codes
• QR-code workflows
• Digital tickets
• Electronic vouchers
• Smartphone loyalty applications
• Mobile registration codes
• Electronic customer references

Successful screen scanning can depend on display brightness, screen condition, barcode dimensions, contrast and application design.

Hands-Free Presentation Scanning

The TS100 is primarily designed as a presentation scanner.

Instead of repeatedly picking up and aiming a handheld scanner, an operator can keep the TS100 positioned at the workstation and present the barcode toward its scanning window.

This arrangement can be useful at busy counters where repetitive barcode capture is required and the operator needs to keep both hands available for products, documents or customer transactions.

Connectivity

Standard Interface: USB
TS100-SUCB00-SG Configuration: USB cable included
Optional Interface Accessory: RS-232 cable where supported

The exact interface requirement and host-system compatibility should be verified before ordering.

Electrical Specifications

Operating Voltage: DC 5V
Current Consumption: Approximately 500 mA

The documented USB configuration is designed for USB-connected operation.

Any specialized host, powered-hub or installation requirement should be checked separately.

Environmental Specifications

Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Relative Humidity: 0% to 95% RH, non-condensing
ESD Protection: ±15 kV air discharge
Mechanical Shock: 1 metre

Environmental and durability specifications should not be interpreted as meaning the scanner is designed for uncontrolled outdoor, wet or harsh industrial use.

Package Contents

For the manufacturer-documented TS100-SUCB00-SG configuration:

• Unitech TS100 presentation scanner
• USB cable
• Quick Start Guide

Package contents should be reconfirmed against the supplied product and commercial documentation before ordering.

Industry Applications

The Unitech TS100 is designed primarily for counter-based and fixed-workstation barcode scanning where hands-free capture of common 1D and 2D barcodes can improve everyday workflows.

Its presentation design, large scanning window and ability to read supported barcodes from printed media and electronic displays make it suitable for several commercial environments.

Retail & Point of Sale

The TS100 can be particularly useful at retail counters where products and customer-presented barcodes need to be scanned repeatedly.

Typical applications include:

• Product barcode scanning
• POS checkout counters
• Convenience stores
• Grocery and specialty retail
• Apparel stores
• Electronics counters
• Pharmacy retail counters
• Membership identification
• Loyalty-code scanning
• Electronic coupon redemption
• QR-code workflows

The hands-free presentation design allows the scanner to remain positioned at the checkout while the operator presents the barcode to its reading area.

For retail environments requiring workers to move around the shop or scan large items away from the counter, a handheld or wireless scanner may be more suitable.

Hospitality & Customer Service

The TS100 can support customer-facing counter workflows involving supported printed or electronic barcodes.

Potential applications include:

• Digital vouchers
• Membership codes
• Reservation references
• QR codes
• Electronic coupons
• Customer registration
• Loyalty programs
• Electronic tickets

Its ability to read supported barcodes from smartphone and tablet displays can be useful where customers present digital credentials instead of printed documents.

The scanner itself does not provide reservation, loyalty or hospitality-management software. These functions depend on the connected application.

Ticketing & Event Check-In

At fixed admission or registration counters, the TS100 can support barcode-based workflows such as:

• Electronic ticket scanning
• QR-code admission
• Visitor registration
• Event check-in
• Membership verification
• Registration-code scanning

For staff who need to move through queues, entrances or venues, a handheld wireless scanner may provide greater flexibility.

Office & Document Workflows

The TS100 may also be used at office workstations where documents, files or records contain barcodes recognized by the organization's software.

Applications may include:

• Document identification
• File tracking
• Barcode-based record retrieval
• Form processing
• Reception workflows
• Administrative barcode capture
• Asset-related barcode entry

The TS100 captures and transmits barcode data. Document management, indexing and record processing depend on the connected software.

Pharmacy & Healthcare Workflows

For suitable fixed-counter applications, the TS100 may be considered for barcode workflows involving:

• Pharmacy counter scanning
• Inventory identification
• Patient-related barcode identification
• Document barcodes
• Item tracking
• Supported medication-related barcodes

Healthcare environments can have specialized barcode, software, cleaning, regulatory and workflow requirements.

Suitability should therefore be validated against the organization's specific requirements before deployment. The TS100 should not automatically be treated as a specialized healthcare scanner merely because it can read a required barcode.

Warehouse & Inventory Workstations

At a fixed workstation, the TS100 may support:

• Inventory processing
• Goods identification
• Packing stations
• Stock-related data entry
• Item verification
• Dispatch documentation
• Barcode-based transaction entry

For warehouse workers who need mobility, extended scanning range, rugged construction or scanning away from a workstation, a purpose-designed handheld or industrial scanner will normally be more appropriate.

Light Manufacturing

At appropriate fixed workstations, the TS100 may support barcode workflows involving:

• Component identification
• Work-order scanning
• Production record capture
• Packing verification
• Finished-goods identification
• Barcode-based process confirmation

For harsh industrial environments, direct-part-mark applications, production-line automation or specialized fixed-mount scanning, an industrial scanner designed specifically for those conditions should be considered.

Reception & Membership Environments

The presentation format can also be useful at fixed reception or service desks for applications involving:

• Visitor barcodes
• Membership cards
• Digital membership codes
• Appointment references
• Registration codes
• Customer identification workflows

Actual functionality depends on the connected business application.

Purpose of Use

The TS100 captures supported 1D and 2D barcode information and transmits the decoded data to a connected host system.

Its presentation design can reduce the need for repetitive handheld operation in fixed-counter environments.

The scanner itself does not provide:

• POS software
• Inventory-management software
• Payment processing
• Ticketing software
• Healthcare software
• Attendance management
• Document-management software

Those functions depend on the connected host system and application.

Choosing the TS100 by Application

The TS100 is particularly worth considering when the requirement involves:

• Fixed counter or desktop operation
• Hands-free presentation scanning
• Frequent 1D and 2D barcode capture
• Printed barcode scanning
• Smartphone or tablet barcode scanning
• USB-connected host operation
• Compact installation space
• Customer-facing scanning workflows

A different type of scanner may be preferable when the application requires:

• Wireless mobility
• Long-range barcode scanning
• Rugged handheld operation
• Outdoor mobile use
• Direct Part Mark reading
• Industrial fixed-mount scanning
• Conveyor or production-line automation
• Specialized healthcare requirements
• Highly damaged or unusually challenging barcodes

Selecting by actual workflow rather than simply by scanner specification can help avoid purchasing a product that is technically capable of reading a barcode but poorly suited to the working environment.

How to Use

1. Connect the TS100-SUCB00-SG to a compatible host through its USB connection.
2. Position the scanner securely on the counter or workstation.
3. Adjust its orientation where required for comfortable presentation scanning.
4. Configure any application-specific barcode or data settings.
5. Present the printed or digital barcode toward the scan window.
6. Allow the scanner to capture and decode the barcode.
7. Confirm that the decoded data appears correctly in the connected application.

For specialized symbologies, data formatting or interface behaviour, use the applicable Unitech configuration documentation.

Compatibility & Integration

The USB configuration is designed for connection to compatible computers, POS terminals and other host systems supporting the required scanner interface.

Compatibility should not be assumed solely because a host device has a USB port.

Before ordering for an existing POS or business application, verify:

• Host operating environment
• Required USB interface behaviour
• Barcode symbology
• Application input method
• Data formatting
• Prefix/suffix requirements
• Barcode quality and size
• Counter or workstation space
• Required scanning orientation

Application Compatibility Guidance

Being suitable for an industry does not automatically mean the TS100 is compatible with every application used within that industry.

For example, two retail businesses may both require QR-code scanning but use different POS software, data formats or workflows.

Similarly, a barcode scanner suitable for a pharmacy counter is not automatically suitable for every healthcare application.

Before ordering, verify the actual:

• Barcode symbology
• Barcode size
• Barcode quality
• Host interface
• Business application
• Data-format requirement
• Scanning distance
• Mobile-screen requirement
• Installation position
• Operating environment

For specialized applications or larger deployments, testing representative barcodes and the intended host application before full deployment can reduce compatibility risk.

Things to Verify Before Ordering

Please confirm:

• Exact model required is TS100-SUCB00-SG
• Required quantity
• 1D and/or 2D barcode formats
• Printed and/or mobile-screen scanning requirement
• USB connectivity requirement
• Host computer or POS system
• Required business application
• Data-formatting requirements
• Any specialized barcode symbology
• Installation environment
• Package contents
• Current availability
• Delivery lead time

If the application involves unusual, very small, damaged, low-contrast or specialized barcodes, sample testing may be appropriate before a larger deployment.

Buyer Guidance

Choose the Unitech TS100-SUCB00-SG when the application primarily requires a compact, fixed-position presentation scanner for frequent 1D and 2D barcode capture.

Its strongest use case is generally a counter or workstation where the scanner can remain positioned while products, documents or digital barcodes are presented to it.

Do not select the TS100 simply because an application requires “barcode scanning.”

If workers need to move around, scan at long distance, work in harsh environments, capture Direct Part Marks or perform industrial automation, another scanner category may be more appropriate.

The right scanner is the one that fits the barcode, host system and actual working environment.

Why NEOTECH® UAE?

At NEOTECH®, product information is not treated as something we publish once and forget. We improve it whenever we discover a clearer, safer, or more useful way to serve the customer.

That means reviewing manufacturer information, correcting outdated or overly general specifications, identifying exact part numbers, clarifying configurations, checking product lifecycle status and improving application guidance when better information becomes available.

For the Unitech TS100, we go beyond simply listing industries. We explain where the scanner is genuinely suitable, where compatibility needs verification, and when another type of scanner may be a better choice.

Our objective is simple: help customers understand what they are buying, whether it is right for their requirement, and what should be verified before they pay.

Learn First. Decide Second.

Request a Quote or Order in the UAE

For quotation and availability, please provide:

• Product: Unitech TS100-SUCB00-SG
• Required quantity
• Required barcode type, if specialized
• Host/POS system where compatibility needs verification
• Intended application or industry, where guidance is required
• Delivery location within the UAE

Availability should be confirmed before payment.

Delivery - UAE

For products confirmed available, handling is generally approximately 1–2 business days.

Standard UAE transit is typically approximately 3–5 business days after handling, giving an estimated total of around 4–7 business days where availability is confirmed.

For non-stock or special-order requirements, delivery may take approximately 10–15 working days or up to 25 working days depending on manufacturer or supplier availability.

Lead times are based on availability at the time of quotation and remain subject to change until order and payment confirmation.

FAQ - Unitech TS100-SUCB00-SG

Q: What is the Unitech TS100-SUCB00-SG?
A: It is a Unitech TS100 2D presentation barcode scanner configuration supplied with a USB cable.

Q: Is TS100-SUCB00-SG an official Unitech part number?
A: Yes. Unitech identifies TS100-SUCB00-SG as a TS100 2D imager presentation-scanner configuration with USB cable.

Q: Is the Unitech TS100 a current product?
A: The TS100 remains listed in Unitech's scanner product range at the time of this review. No current manufacturer discontinuation notice was identified.

Q: Does the TS100 scan both 1D and 2D barcodes?
A: Yes. It supports a range of commonly used 1D and 2D barcode symbologies.

Q: Can the TS100 read QR codes?
A: Yes. QR Code and Micro QR are among the supported 2D symbologies.

Q: Can it scan barcodes from a smartphone?
A: Yes. The TS100 is designed to read supported digital barcodes displayed on devices such as smartphones and tablets.

Q: Is the TS100 suitable for retail POS counters?
A: Yes, fixed retail counters are a natural application for a presentation scanner such as the TS100, provided the barcode formats, host interface and POS application are compatible.

Q: Can it be used for ticket and event scanning?
A: It can support fixed-counter ticketing and check-in workflows using compatible barcode formats. A wireless handheld scanner may be more appropriate where staff need to move around an entrance or venue.

Q: Can the TS100 be used in a pharmacy?
A: It may be suitable for appropriate fixed-counter barcode workflows, but pharmacy or healthcare applications should be checked against the required barcode standards, software and operational requirements.

Q: Can I use it in a warehouse?
A: It can be useful at fixed inventory or packing workstations. For mobile warehouse scanning or rugged environments, a handheld or industrial scanner may be more suitable.

Q: Is the TS100 an industrial scanner?
A: It is primarily a compact presentation scanner. Applications involving harsh industrial environments, Direct Part Marks or automated production lines should use equipment designed for those requirements.

Q: What is the scanner's image sensor resolution?
A: The manufacturer specifies a 1280 × 800 pixel image sensor.

Q: What is its scanning rate?
A: Up to 60 frames per second.

Q: Does the TS100 automatically detect barcodes?
A: It supports presentation scanning, allowing supported barcodes presented to the scanner to be captured without normal handheld triggering.

Q: Is the TS100 a handheld scanner?
A: It is primarily designed as a desktop/presentation scanner for hands-free operation.

Q: Does TS100-SUCB00-SG include a USB cable?
A: Yes. The exact TS100-SUCB00-SG configuration is documented with a USB cable.

Q: Does it require a separate power adapter for normal USB operation?
A: The documented USB configuration operates at DC 5V and is designed for USB-connected operation. Specialized host or installation requirements should be checked separately.

Q: Does the TS100 support RS-232?
A: Unitech lists an optional RS-232 cable for the TS100. The TS100-SUCB00-SG configuration covered here is supplied with USB, so an RS-232 requirement should be confirmed separately.

Q: Is a separate stand included?
A: A separate stand should not be assumed. The manufacturer-documented TS100-SUCB00-SG package identifies the scanner, USB cable and Quick Start Guide.

Q: Does it work with every POS system?
A: Universal compatibility should not be assumed. Verify the host interface, operating environment, barcode symbologies, application input requirements and any required data formatting.

Q: Can NEOTECH® help determine whether the TS100 is right for my application?
A: Yes. Provide the intended application, host/POS system and barcode type so the requirement can be reviewed before quotation.

Related Products

Other Unitech handheld, presentation and fixed-mount barcode scanners may be considered where an application requires wireless mobility, rugged operation, specialized barcode capture, different interfaces or another scanning form factor.

Contact - NEOTECH® UAE

For product verification, quotation, availability or UAE delivery assistance, contact NEOTECH® UAE and reference the exact part number:

Unitech TS100-SUCB00-SG

Disclaimer - NEOTECH® UAE

Product information is based on manufacturer information reviewed for the TS100-SUCB00-SG configuration. Specifications, firmware, accessories, packaging and manufacturer availability may change over time.

Barcode-reading performance depends on factors including symbology, barcode quality, dimensions, printing, display characteristics, configuration, host application and operating environment.

Industry examples describe potential applications and should not be interpreted as certification or guaranteed compatibility with every system used within those industries.

Customers should verify the exact model, interface, required barcode types, host compatibility, application requirements, package contents, availability, lead time and commercial terms before payment.

Last Updated: 6 October 2026 (GST, UTC+4)
