Wall-Mounted Android Control Panel with Optional POE & RS485 Integration

Overview

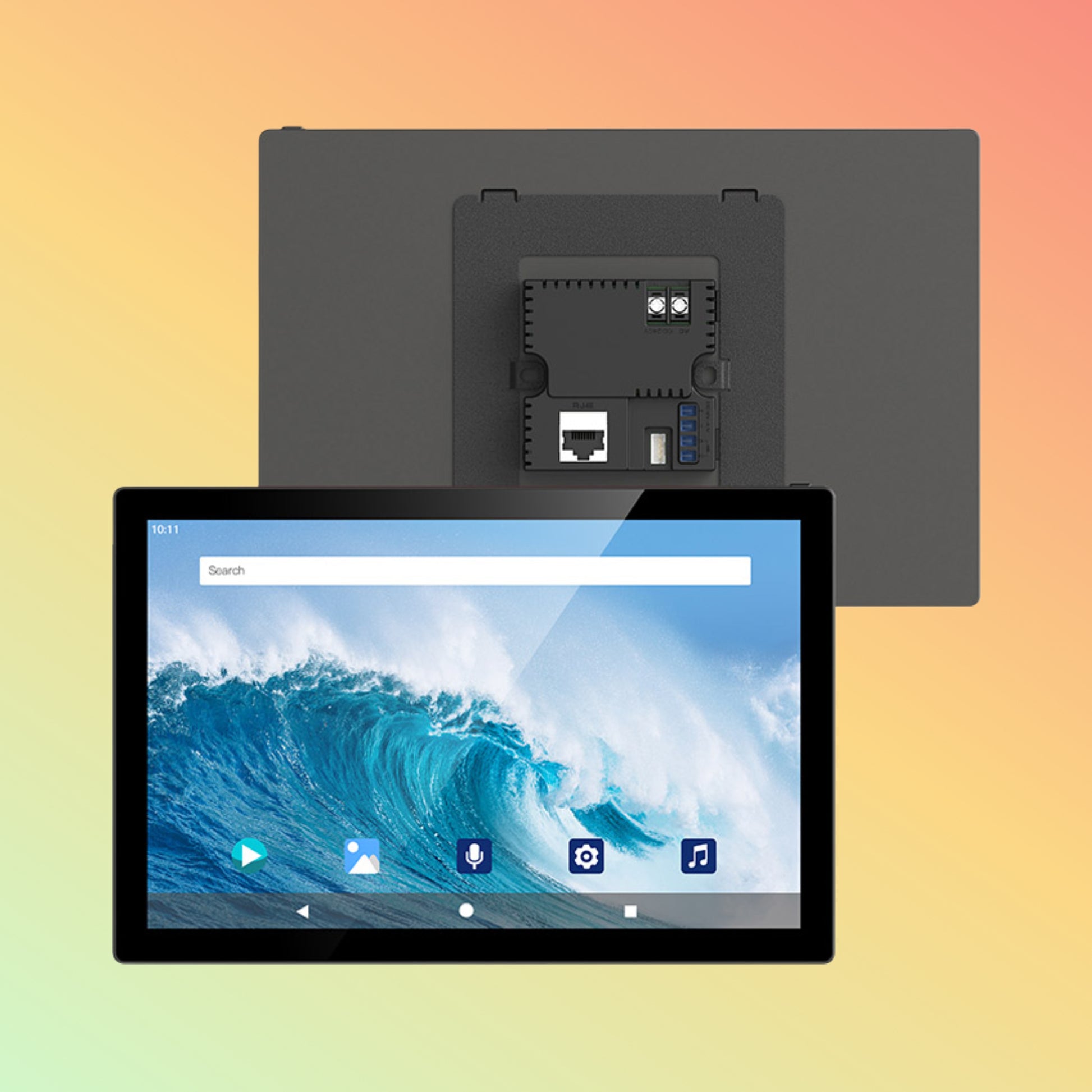

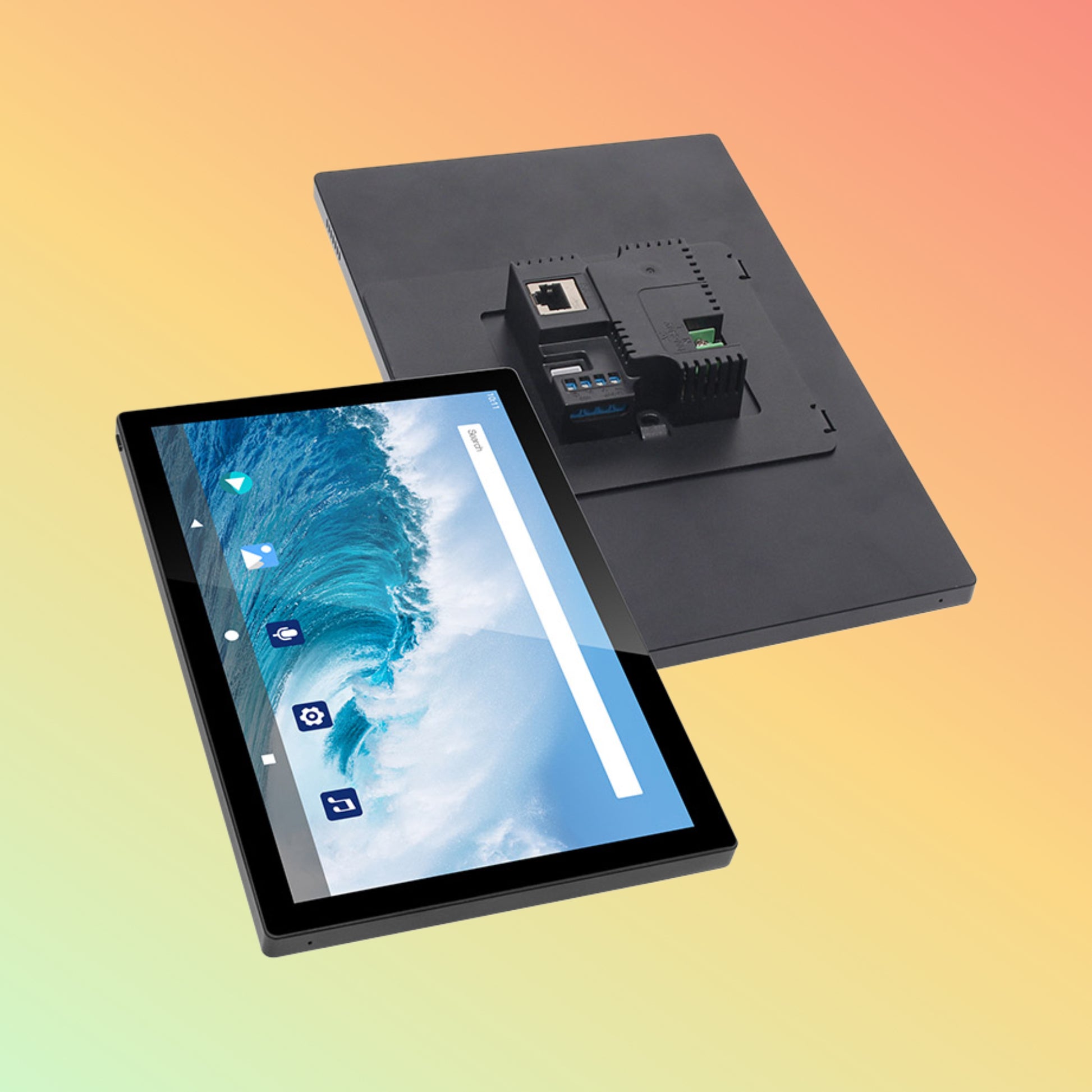

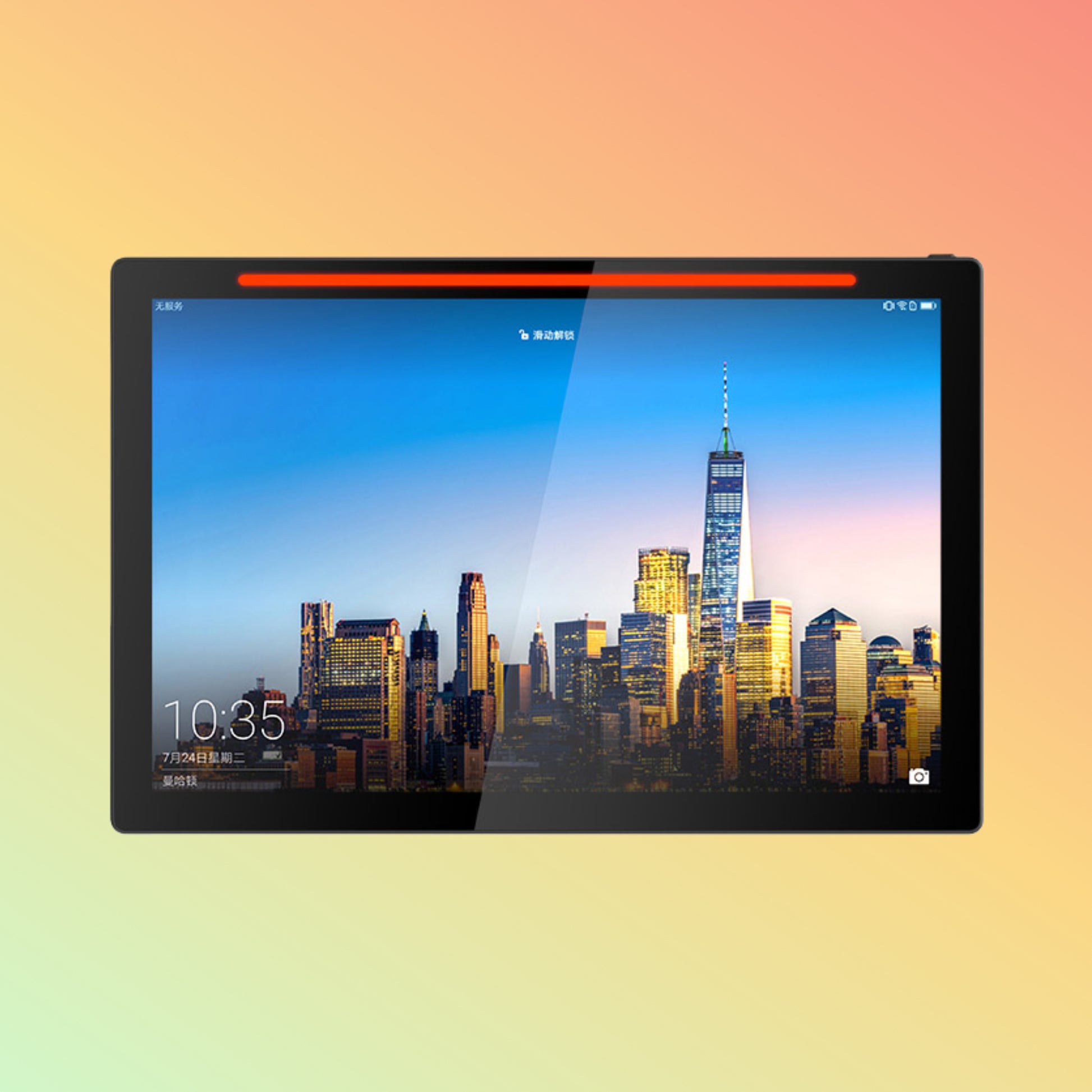

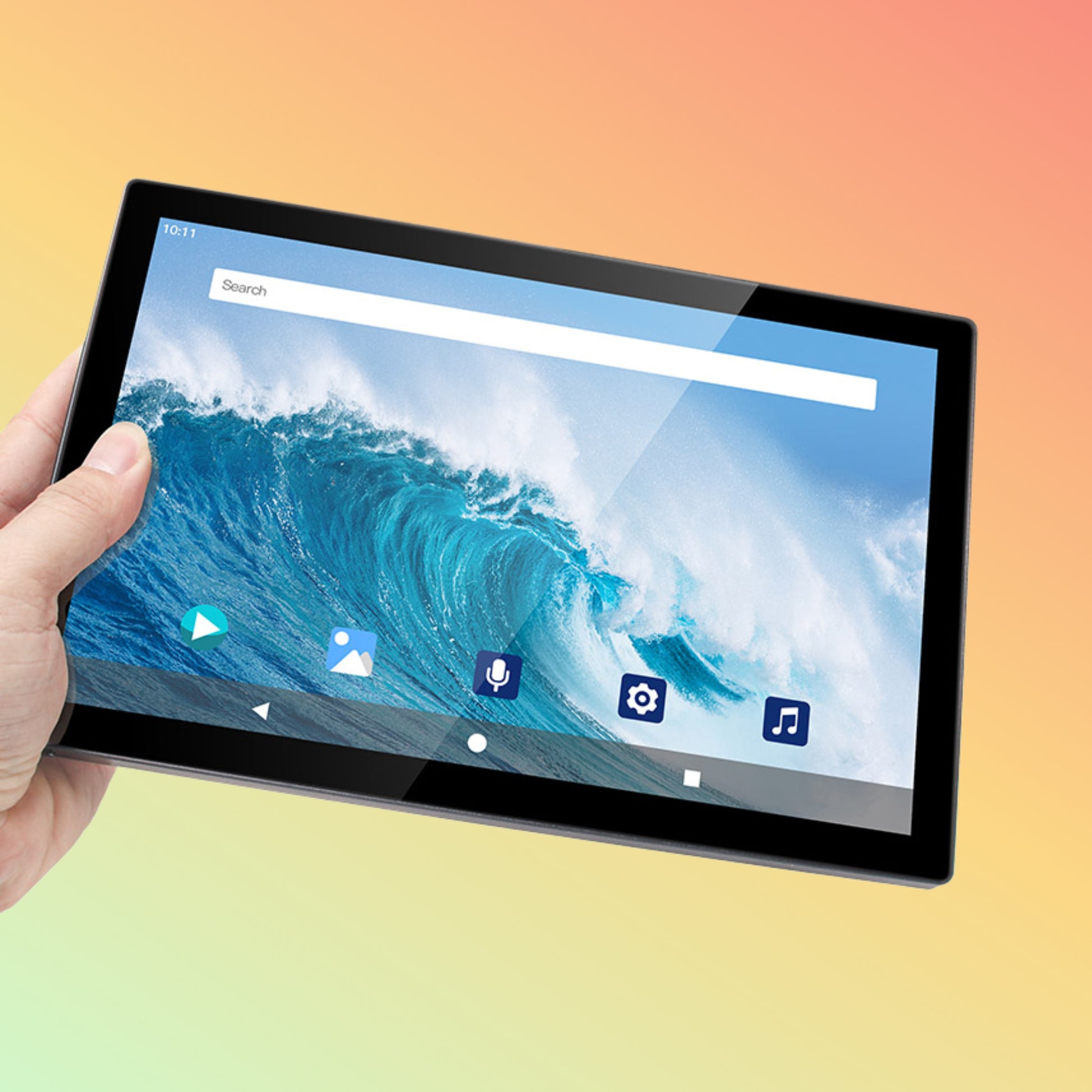

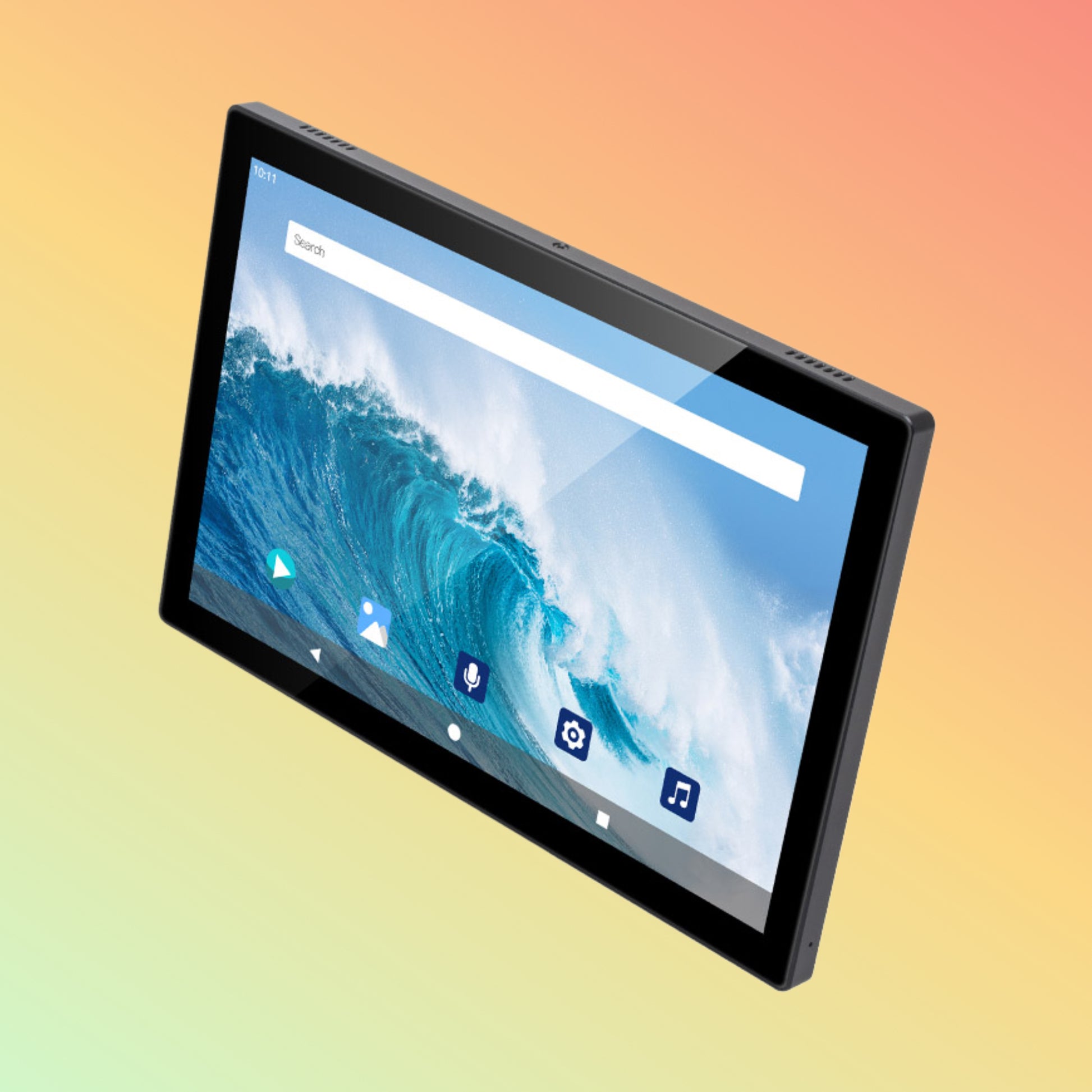

The Uniwa UTAB P1008 is a 10.1-inch wall-mounted Android tablet designed for smart control, automation, and access system integration. It features an IPS touchscreen, Android 10 operating system, and multiple interface options including RS485 and optional POE support.

This device is suitable for residential automation, commercial control panels, and building management systems.

Product Description

The UTAB P1008 provides a compact wall-mounted interface for managing automation systems and control applications. It is equipped with a quad-core processor and supports wireless and wired connectivity, allowing integration with various control platforms.

With optional POE or power modules, the device can be installed based on project requirements.

Key Features

• 10.1-inch IPS capacitive touchscreen (1280 × 800 resolution)
• Android 10 operating system
• Quad-core Allwinner R818 processor
• 2GB RAM and 32GB internal storage
• Wi-Fi 6 support (IEEE 802.11 a/b/g/n/ac/ax)
• Bluetooth 5.0 connectivity
• RS485 and UART interfaces for system integration
• Optional POE module for power and network
• Optional front camera and battery
• Seven-color LED indicator

Technical Specifications

Basic Information

• Model: UTAB P1008
• Operating System: Android 10
• Dimensions: 240 × 158 × 9.5 mm
• Weight: Approx. 853 g (without battery)
• Color: Black

Hardware

• Display: 10.1” IPS capacitive touchscreen
• Resolution: 1280 × 800
• Processor: Allwinner R818 Quad-Core @ 1.6GHz
• GPU: IMG GE8300
• RAM: 2GB
• Storage: 32GB (no microSD expansion)
• Camera: Optional 5MP front camera
• Battery: Optional
• Speaker: 8Ω / 1.5W
• Microphone: Omnidirectional

Connectivity

• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6 supported)
• Bluetooth: Version 5.0

Interfaces

• Micro USB (OTG supported)
• RS485 ×1
• UART ×2 (configurable)
• I/O Ports ×3

Power Options (Selectable)

• POE module (RJ45 + power over Ethernet)
• 220V to 12V/24V DC power module
• Power + communication module (non-POE)

Note: Configuration depends on selected module.

Applications (Industry-Focused)

Smart Home

• Lighting and automation control panels
• Integration with platforms like Tuya, Home Assistant

Commercial & Office

• Room booking displays
• Control dashboards

Hospitality

• In-room control interface
• Service management panel

Access Control Systems

• Interface for access management systems
• Integration via RS485 or network

Purpose of Use

The UTAB P1008 is designed as a fixed wall-mounted control interface for automation, monitoring, and system management applications.

Benefits & Compatibility

• Supports integration with automation systems via RS485 and network
• Flexible power options depending on installation requirement
• Compatible with Android-based applications
• Suitable for residential, commercial, and institutional deployments

Important Usage Notes

• POE functionality is available only if POE module is selected
• Storage is fixed (no microSD expansion support)
• Application compatibility depends on software used

How to Use

1. Install the wall bracket
2. Select and connect appropriate power module (POE or DC)
3. Connect to network (LAN or Wi-Fi)
4. Install required Android applications
5. Configure control interface or dashboard

Why Choose NEOTECH® UAE

✔ Transparent product information and specification clarity
✔ UAE-based technical coordination
✔ Suitable solutions for automation and integration projects
✔ Clear return and refund policy
✔ Business-focused supply approach

FAQ – UTAB P1008 UAE

Q: Does this device support POE by default?
A: POE is optional and depends on selected configuration.

Q: Can storage be expanded via SD card?
A: No, this model does not support microSD expansion.

Q: Is it suitable for smart home systems?
A: Yes, it supports Android-based automation applications.
