Genuine Zebra Part Reference P1004234 — Replacement 203 dpi Thermal Printhead for Zebra 140Xi4 Industrial Barcode Printers.

Professional Highlights

• Zebra manufacturer part number P1004234
• Official Zebra 140Xi4 203 dpi replacement printhead reference
• Designed for Zebra 140Xi4 industrial barcode label printers
• 203 dpi thermal printing resolution (8 dots/mm)
• Replacement component for worn or damaged thermal printheads
• Supports compatible direct thermal and thermal transfer printing
• Relevant to industrial barcode, product and shipping label applications
• Helps restore print quality when printhead wear is the confirmed cause
• Suitable for printer maintenance and replacement-part procurement
• Exact manufacturer part number confirmed in Zebra parts documentation
• Original Zebra supply and packaging subject to supplier verification
• Availability, warranty and delivery confirmed before order acceptance

Product Overview

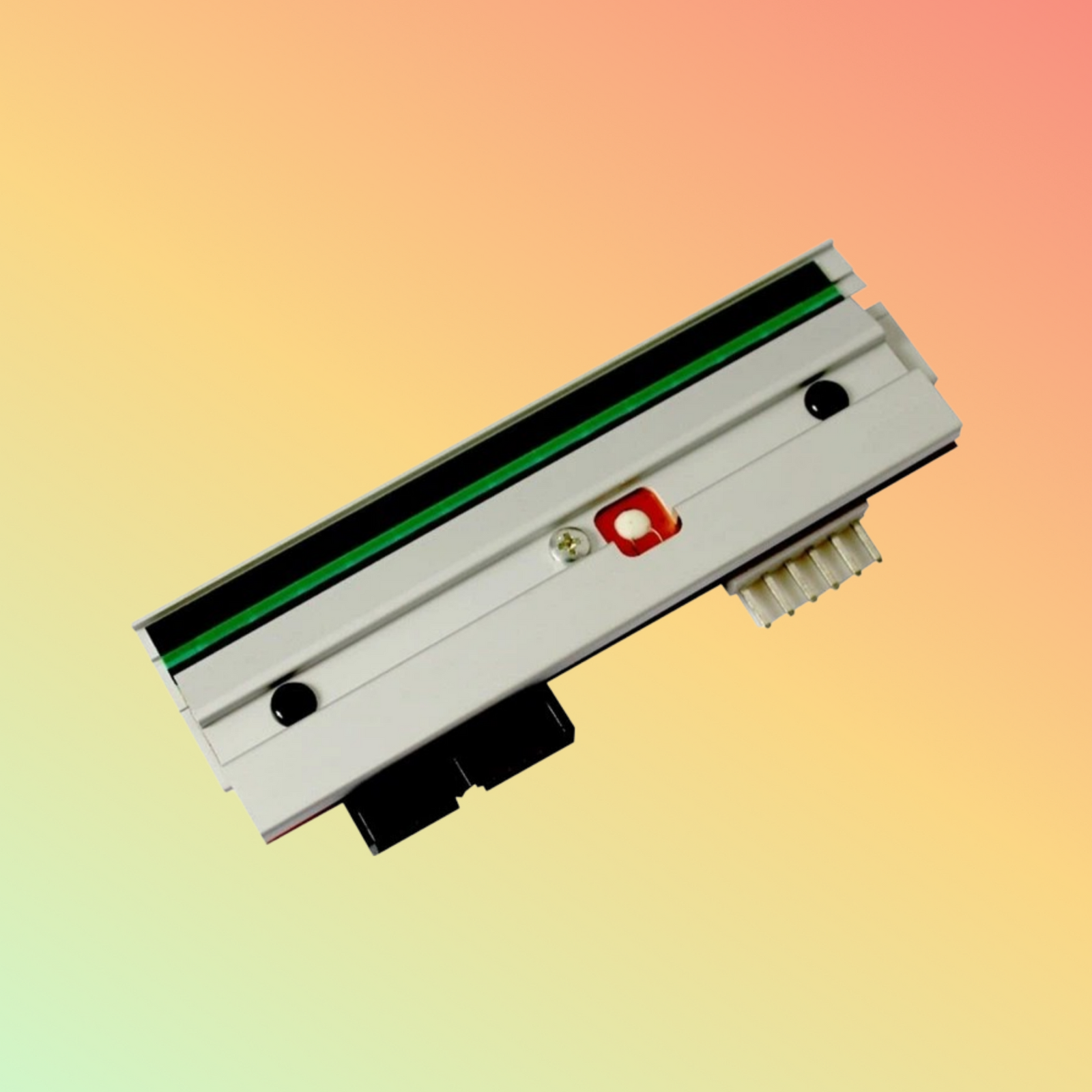

The Zebra P1004234 Thermal Printhead 203 dpi is the manufacturer-listed replacement printhead for the Zebra 140Xi4 industrial barcode label printer.
Zebra's Xi4 Series parts documentation identifies P1004234 as the 203 dpi printhead for the 140Xi4 model.
The thermal printhead is responsible for producing the printed image on compatible label media. Over time, its heating elements can become worn, contaminated or damaged, potentially affecting barcode readability and print consistency.
Replacing a defective printhead with the correct compatible component can help restore normal print quality when the printhead is the identified cause of the problem.
This page focuses specifically on Zebra P1004234 for the 140Xi4 at 203 dpi, rather than other Xi4 Series printheads.

Product Description

The Zebra 140Xi4 is an industrial barcode label printer used in demanding printing environments.
Its thermal printhead creates text, barcodes and graphics by applying controlled heat during printing.
The P1004234 replacement printhead is specified for the 203 dpi version of the Zebra 140Xi4.
It is relevant to businesses maintaining existing 140Xi4 equipment where the printhead has become worn, damaged or unable to produce acceptable print quality.
The replacement printhead does not increase the printer's resolution or change its communication interfaces, media-handling features or supported software.
Customers should verify their existing printer's resolution and full model identification before ordering.

Facts & Manufacturer Identification

Brand: Zebra Technologies
Manufacturer: Zebra Technologies
Manufacturer Part Number: P1004234
Product Description: 140Xi4 Printhead 203 dpi
Product Type: Replacement Thermal Printhead
Compatible Printer: Zebra 140Xi4
Print Resolution: 203 dpi
Resolution Equivalent: 8 dots/mm
Printer Series: Zebra Xi4 Series
Component Function: Thermal image generation
Original Zebra Part Reference: Confirmed in manufacturer documentation
Product Condition: To be confirmed before quotation
Manufacturer Packaging: To be confirmed
Availability: Subject to supplier verification
Warranty: Subject to written quotation and applicable supplier terms

Technical Specifications

Brand: Zebra
Part Number: P1004234
Component: Thermal Printhead
Printhead Resolution: 203 dots per inch
Dot Density: 8 dots/mm
Compatible Printer Model: Zebra 140Xi4
Printer Category: Industrial Barcode Label Printer
Printing Technologies: Direct Thermal and Thermal Transfer, according to compatible printer operation
Printhead Width: Designed for the applicable Zebra 140Xi4 print mechanism
Printhead Interface: Manufacturer-specific internal printer connection
Printhead Material: Manufacturer-specified thermal printhead assembly
Installation: Internal printer component replacement
Printer Firmware: Existing compatible printer configuration
Operating System: Determined by the printer and host software, not the printhead itself
Package Contents: To be confirmed
Included Installation Tools: Not confirmed
Country of Origin: Subject to supplied product
Important: P1004234 is a 203 dpi printhead reference and must not be substituted with an unrelated Xi4 Series printhead.

What Does a Thermal Printhead Do?

A thermal printhead contains heating elements that create the printed image during the printer's normal operation.
In direct thermal printing, heat acts on compatible heat-sensitive label material.
In thermal transfer printing, heat transfers ribbon ink onto compatible label media.
The printhead is responsible for producing:

• Linear barcodes
• Two-dimensional barcodes
• Product identification
• Serial numbers
• Text and graphics
• Shipping information
• Inventory labels
• Industrial tracking labels
  Print quality depends on the condition of the printhead and the complete printing system.

Zebra 140Xi4 Compatibility

The P1004234 is identified in Zebra's official Xi4 Series parts documentation as the 203 dpi printhead for the 140Xi4.
Before purchasing, confirm:

• Printer model: Zebra 140Xi4
• Printer resolution: 203 dpi
• Existing printhead reference
• Full printer model number
• Printer serial number, if required
• Product condition and authenticity requirements
• Required replacement quantity
  Other Xi4 Series printers use different printhead references.
  Do not assume that a printhead for the 110Xi4, 170Xi4 or 220Xi4 is interchangeable with P1004234.

Zebra Xi4 Printhead Part-Number Comparison

Different Xi4 Series printers require different replacement printheads.

Zebra 110Xi4 – 203 dpi: P1004230
Zebra 110Xi4 – 300 dpi: P1004232
Zebra 110Xi4 – 600 dpi: P1004233
Zebra 140Xi4 – 203 dpi: P1004234
Zebra 170Xi4 – 203 dpi: P1004236
Zebra 170Xi4 – 300 dpi: P1004237
Zebra 220Xi4 – 203 dpi: P1004238
Zebra 220Xi4 – 300 dpi: P1004239

These references are provided to help customers avoid ordering a printhead intended for a different printer.
Always verify the exact manufacturer part number before purchase.

Signs a Thermal Printhead May Need Replacement

Possible symptoms of printhead wear or damage include:

• Missing vertical lines in printed labels
• Repeated white lines through barcodes
• Incomplete text or graphics
• Persistent print defects in the same position
• Visible printhead surface damage
• Poor barcode readability
• Print defects that remain after approved cleaning
  These symptoms can also result from ribbon problems, unsuitable labels, incorrect print settings or other printer components.
  The cause should be identified before replacing the printhead.

Printhead vs Platen Roller

The thermal printhead and platen roller are separate printer components.

Thermal Printhead

• Creates the thermal image
• Contains heating elements
• Determines the installed print resolution
• Can develop worn or damaged heating elements

Platen Roller

• Supports label movement
• Provides media traction
• Helps maintain media contact during printing
• Can become worn or contaminated

Replacing the printhead will not automatically correct media-feeding problems caused by a defective platen roller.

Direct Thermal & Thermal Transfer Printing

The Zebra 140Xi4 supports compatible thermal printing workflows.

Direct Thermal

• Uses compatible heat-sensitive label material
• Does not require thermal transfer ribbon
• Commonly used for shipping and short-term identification

Thermal Transfer

• Uses compatible ribbon and label material
• Can support durable identification applications
• Requires appropriate ribbon and media selection

The same compatible 203 dpi printhead participates in the printer's supported thermal printing operation.
Print quality and printhead life depend on appropriate materials, settings, cleaning and operating conditions.

Applications

Warehousing & Inventory

• Inventory identification
• Storage-location labels
• Warehouse tracking
• Stock movement labels

Logistics & Distribution

• Shipping labels
• Carton identification
• Dispatch labels
• Distribution tracking

Manufacturing

• Product identification
• Component labels
• Production tracking
• Batch and serial number labels

Retail & Commercial Operations

• Product barcode labels
• Stock identification
• Asset tracking
• Distribution-centre printing

Maintenance & Service

• Replacement of worn printheads
• Printer service and repair
• Restoration of print quality
• Maintenance of existing Zebra 140Xi4 equipment

Printhead Care & Maintenance

Proper maintenance may help reduce premature printhead wear.
Recommended practices include:

• Use compatible label and ribbon materials.
• Follow Zebra's approved printhead cleaning procedure.
• Avoid touching the printhead surface unnecessarily.
• Use suitable cleaning materials.
• Check ribbon width and alignment.
• Avoid excessive print darkness.
• Verify printer media calibration.
• Inspect the platen roller for damage or contamination.
• Follow the manufacturer's recommended maintenance schedule.
• Keep the printing area free from dust and adhesive residue.
  Do not use abrasive tools, unsuitable solvents or lubricants on the printhead.
  Cleaning should be performed only when the printer is safe to service and according to Zebra's instructions.

Buyer Guidance – When Should You Replace the Printhead?

Consider replacement when inspection confirms damaged heating elements, physical damage or persistent print defects that cannot be resolved through approved cleaning and adjustment.
Before ordering, check whether the issue could be caused by:

• Incorrect print darkness
• Excessive printing speed
• Unsuitable ribbon
• Poor-quality labels
• Incorrect media loading
• Printhead contamination
• Platen roller wear
• Incorrect printhead pressure
• Printer calibration problems
  A replacement printhead should be selected only after confirming the correct part and identifying the likely cause of the problem.

Things to Verify Before Ordering

• Manufacturer part number P1004234
• Printer model Zebra 140Xi4
• Installed print resolution 203 dpi
• Full printer model and serial number if required
• Existing printhead identification
• Original Zebra supply requirement
• Product condition
• Manufacturer packaging
• Required quantity
• Included kit components
• Price and VAT
• Current availability
• Delivery lead time
• Warranty and return conditions
• Installation responsibility
  Customers should not make payment if the product identity, authenticity requirements or commercial terms are unclear.

How to Use

1. Confirm the printer model and 203 dpi resolution.
2. Verify the required Zebra printhead part number P1004234.
3. Switch off and disconnect the printer according to manufacturer instructions.
4. Allow the print mechanism to cool.
5. Follow the Zebra 140Xi4 service procedure for accessing the printhead.
6. Remove the existing printhead using the approved method.
7. Install the compatible replacement printhead.
8. Secure the assembly and reconnect components as instructed.
9. Reload compatible media and ribbon.
10. Perform the required printer checks and calibration.
11. Print a test label.
12. Verify barcode quality and consistent print output.
    Printhead replacement should be performed by personnel familiar with Zebra industrial printer servicing.
    These general steps do not replace the official manufacturer service instructions.

Delivery & Returns – UAE

NEOTECH® UAE supports enquiries and quotations for Zebra industrial printer replacement parts within the United Arab Emirates.
The exact manufacturer part number, product condition, quantity and availability must be confirmed before order acceptance.
For confirmed available stock, estimated delivery is generally 2–3 working days after order and payment confirmation.
For products sourced from the UAE local market, estimated delivery is generally 5–7 working days, subject to supplier availability.
Imported or special-order parts may require longer lead times, which will be confirmed in the quotation.
Warranty, cancellation, return and special-order conditions depend on the exact product and written commercial agreement.
Installation and on-site printer servicing are not included unless expressly agreed.
No stock or delivery commitment is implied by this product-information page.

Why NEOTECH® UAE?

At NEOTECH®, product information is not treated as something we publish once and forget. We improve it whenever we discover a clearer, safer, or more useful way to serve the customer.
We believe replacement printer parts should be selected using verified manufacturer part numbers, confirmed printer compatibility and accurate technical information.
For the Zebra 140Xi4, identifying P1004234 is more useful than relying only on a generic description such as "203 dpi Zebra printhead."
Our objective is to help customers avoid incorrect purchases through transparent information and clear quotations.
There is no obligation or pressure to purchase from NEOTECH®.
Learn First. Decide Second.

Contact – NEOTECH® UAE

Email: support@neotech.ae
Location: Store 13, Computer Building, Al Fahidi, Bur Dubai, Dubai, United Arab Emirates
Product Reference: Zebra P1004234 Thermal Printhead 203 dpi for 140Xi4
For a quotation or compatibility enquiry, please share the printer model, manufacturer part number, required quantity and delivery location.

FAQ – Zebra 140Xi4 Thermal Printhead 203 dpi

Q: What is the correct printhead part number for Zebra 140Xi4 203 dpi?
A: Zebra's official Xi4 Series parts documentation identifies P1004234 as the 203 dpi printhead for the 140Xi4.

Q: What is Zebra P1004234?
A: It is the manufacturer-listed 203 dpi replacement thermal printhead for the Zebra 140Xi4 industrial barcode printer.

Q: What is the resolution of P1004234?
A: It is 203 dpi, equivalent to approximately 8 dots per millimetre.

Q: Is P1004234 compatible with Zebra 140Xi4?
A: Yes. Zebra identifies it as the 203 dpi printhead for the 140Xi4.

Q: Can P1004234 be used in Zebra 110Xi4?
A: No. The 110Xi4 uses different manufacturer printhead references.

Q: Can P1004234 be used in Zebra 170Xi4?
A: No. Zebra identifies different printhead references for the 170Xi4.

Q: Can P1004234 be used in Zebra 220Xi4?
A: No. The 220Xi4 requires its own compatible printhead.

Q: Is P1004234 a 300 dpi printhead?
A: No. It is a 203 dpi printhead.

Q: Can replacing P1004234 upgrade the printer to 300 dpi?
A: No. This part is intended for the specified 203 dpi configuration and should not be treated as a resolution upgrade.

Q: Does the printhead support direct thermal printing?
A: It operates within the compatible Zebra 140Xi4 thermal printing system, which supports direct thermal printing.

Q: Does it support thermal transfer printing?
A: Yes. It is used in the compatible 140Xi4 thermal transfer printing configuration.

Q: Can a damaged printhead cause white lines in labels?
A: Yes. Damaged heating elements can cause persistent missing lines, although other causes should also be checked.

Q: Will replacing the printhead fix every print-quality problem?
A: No. Media, ribbon, printer settings, platen roller condition and other components can also affect print quality.

Q: Is the printhead the same as the platen roller?
A: No. The printhead creates the printed image, while the platen roller supports media movement.

Q: Can the printhead be cleaned?
A: Yes. Follow Zebra's approved cleaning instructions and use appropriate materials.

Q: How often should the printhead be replaced?
A: Replacement depends on actual wear, damage, operating conditions and print quality rather than a universal replacement interval.

Q: Is this a genuine Zebra part?
A: P1004234 is an official Zebra part reference. Genuine manufacturer supply and packaging must be confirmed for the specific quotation.

Q: Is installation included?
A: Installation is not included unless expressly agreed in writing.

Q: Is Zebra P1004234 available in UAE?
A: Availability depends on supplier confirmation for the exact part and required quantity.

Q: What warranty applies?
A: Warranty terms must be confirmed in the written quotation.

Q: Is the Zebra 140Xi4 a current printer model?
A: The Xi4 Series is a legacy industrial printer family. Current replacement-part availability and support should be confirmed before procurement.

Q: What should I verify before purchasing?
A: Confirm P1004234, the Zebra 140Xi4 model, 203 dpi resolution, product condition, authenticity requirements, price, VAT, availability, delivery and warranty.

Disclaimer – NEOTECH® UAE

Zebra, Zebra Technologies, 140Xi4, Xi4 Series and associated product names are trademarks or product identifiers of their respective owners.
Manufacturer part number P1004234 and its 203 dpi compatibility with Zebra 140Xi4 are identified in Zebra's official Xi4 Series parts documentation.
The Xi4 Series is a legacy printer family. Manufacturer support, genuine replacement-part availability, packaging and supply condition may vary.
This listing does not establish current stock, guaranteed original packaging, a specific warranty period or guaranteed printhead lifespan.
Replacing a printhead does not guarantee correction of unrelated media, ribbon, sensor, platen roller or printer configuration problems.
Customers should verify the exact product, condition, authenticity requirements, price, VAT, availability, delivery, warranty, returns and official payment beneficiary details before making payment.
NEOTECH® UAE does not claim manufacturer authorisation or guaranteed compatibility beyond the documented manufacturer part reference.

Last Updated: 9 October 2026 (GST, UTC+4)
