Ultra-rugged Zebra TC7 Series mobile computer combining Android enterprise mobility, integrated short-range UHF RFID, professional 1D/2D barcode scanning, a 6-inch high-brightness AMOLED display, Wi-Fi 7 and 5G on applicable configurations for demanding frontline operations.

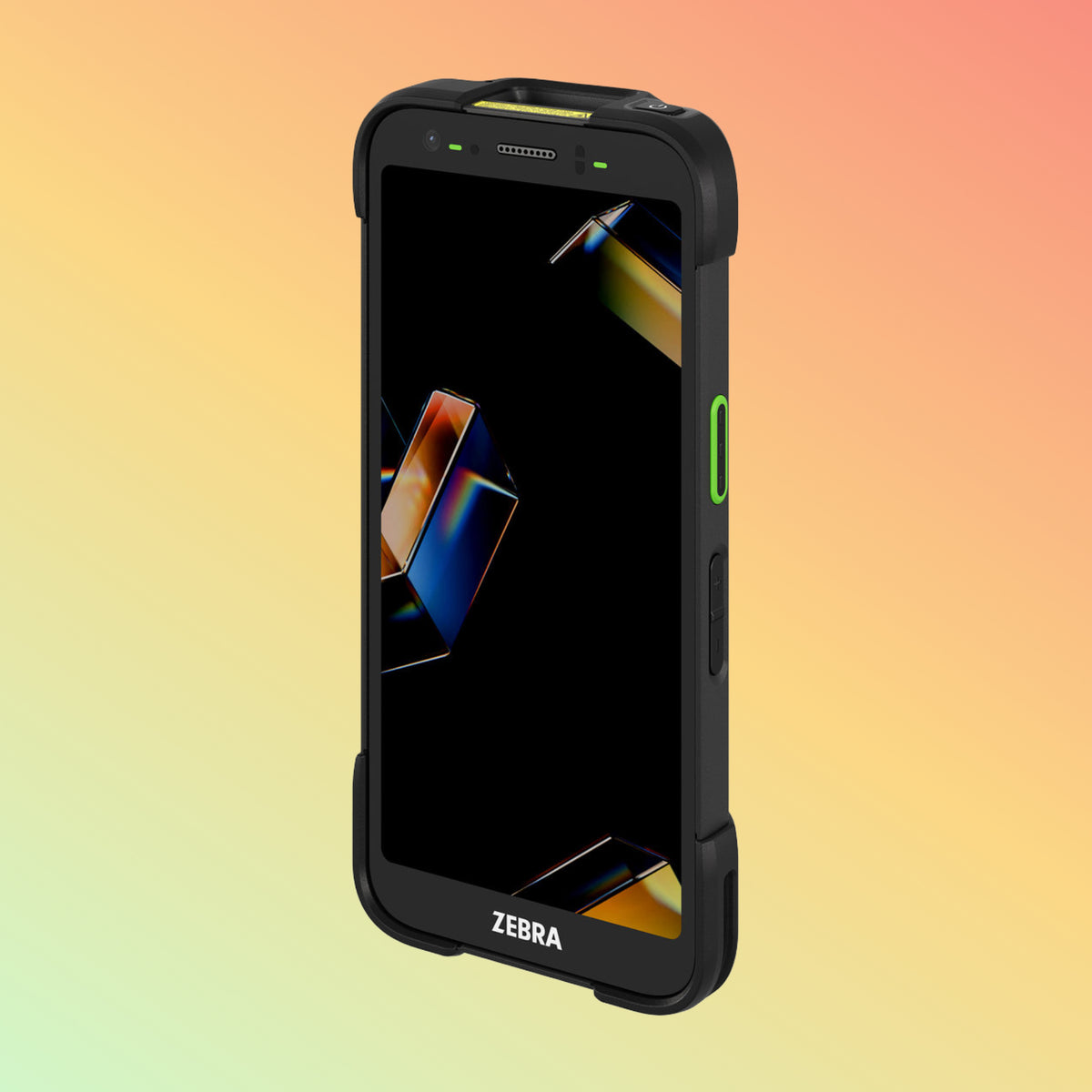

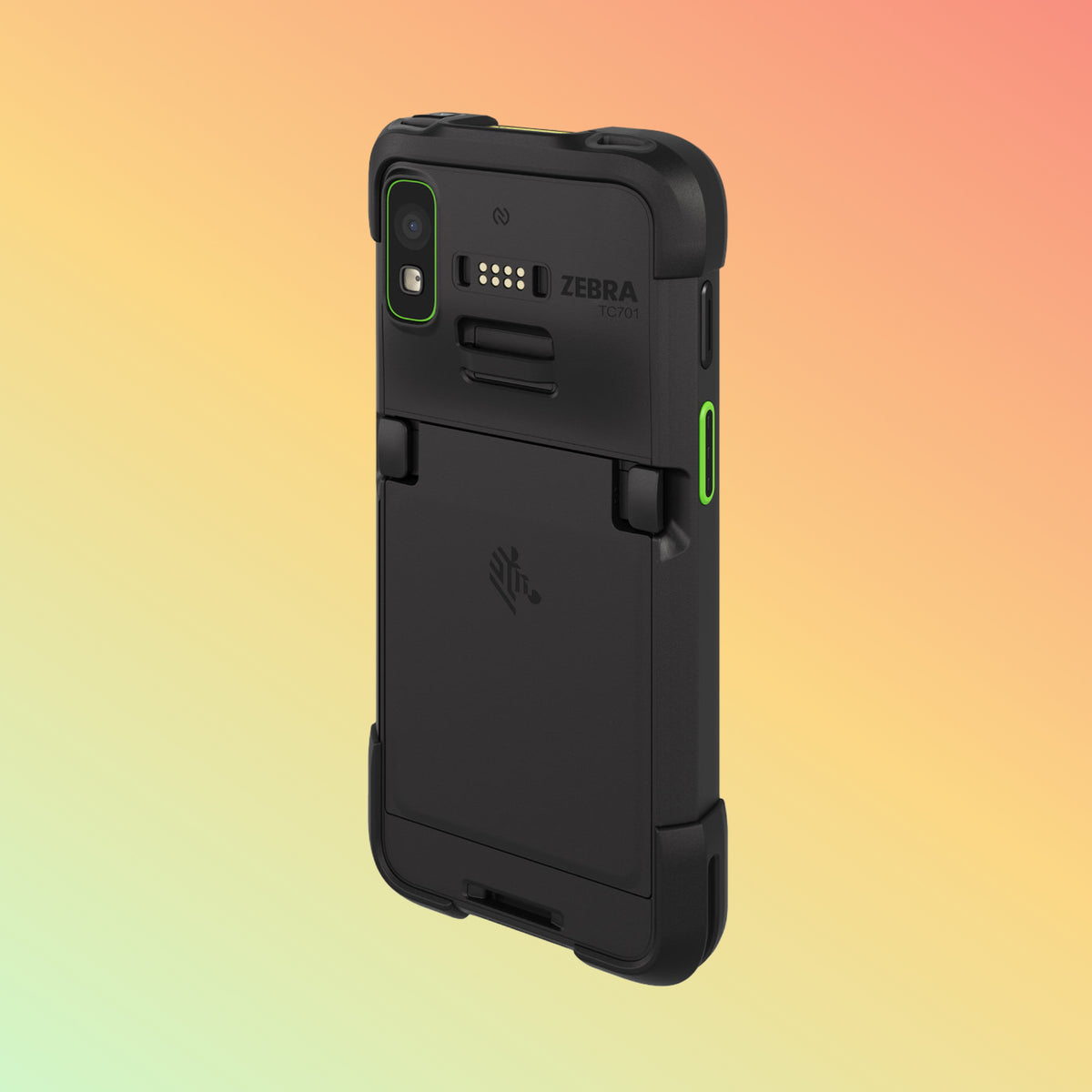

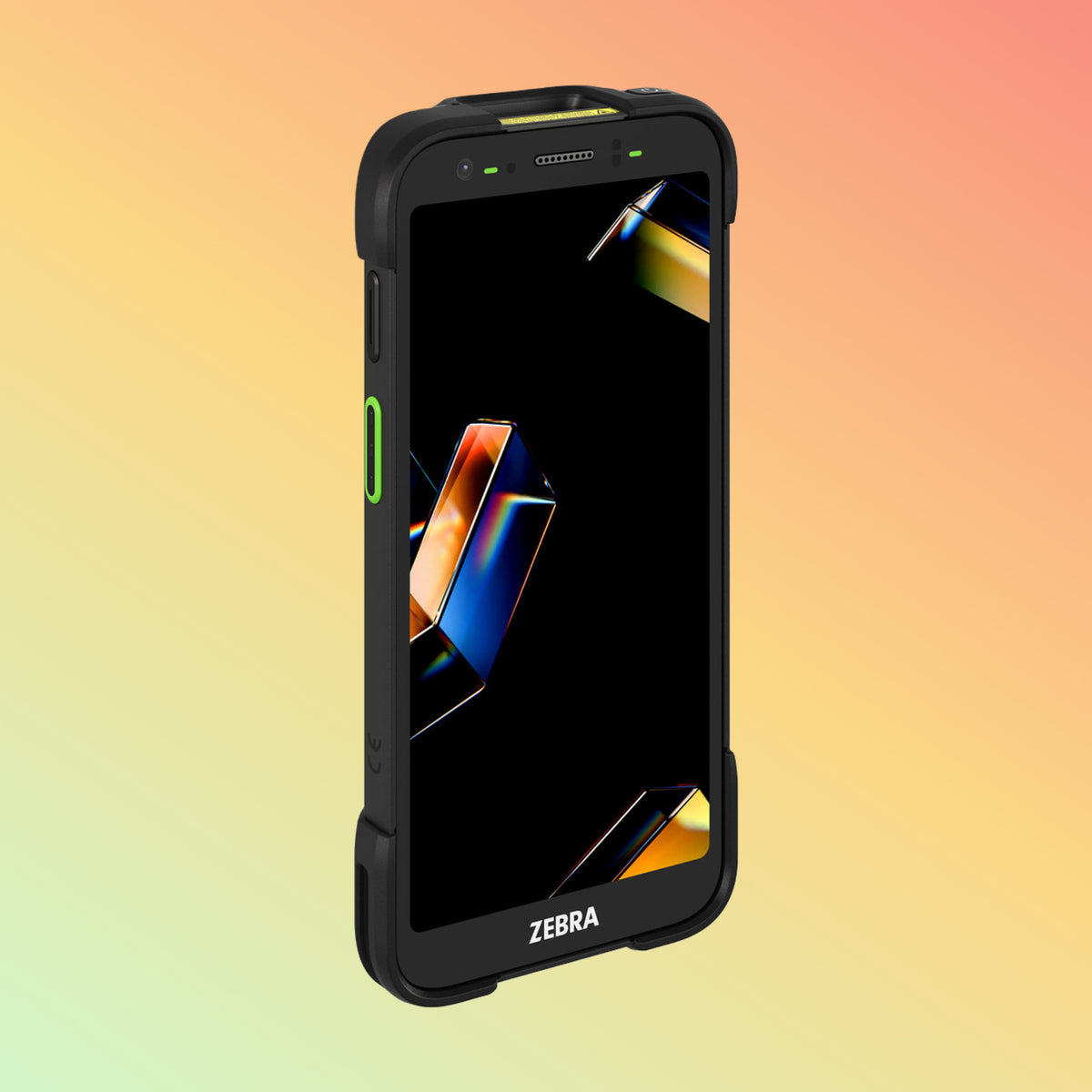

The Zebra TC701 is an ultra-rugged enterprise mobile computer in Zebra's TC7 Series, designed for frontline workers operating in demanding environments such as transportation and logistics, warehousing, manufacturing, field service, retail, utilities and government operations.

The TC701 represents a significant new generation of Zebra's TC7 platform. It combines mobile computing with several data-capture technologies in one handheld device, including:

• Professional 1D/2D barcode scanning
• Integrated short-range UHF RFID
• NFC
• 50 MP rear camera
• Optional ultra-wide camera or iToF sensing on applicable SKUs
• 6-inch high-resolution AMOLED display
• Qualcomm Dragonwing Q-6690 processor
• Wi-Fi 7
• Bluetooth 6.0
• 5G on applicable WWAN configurations
• Triple-band GNSS on applicable configurations
• Hot-swappable battery options
• Enterprise Android platform
• IP65 and IP68 environmental sealing

The important purchasing question is not simply:

“Is the TC701 powerful?”

It is:

“Which TC701 configuration matches the scanning distance, RFID workflow, connectivity, memory, camera, battery and software requirements of my operation?”

The TC701 is available in multiple configurations, so the complete Zebra part number should be verified before ordering.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

What Is the Zebra TC701?

The TC701 is an ultra-rugged Android handheld mobile computer.

A useful way to understand the platform is:

Mobile Computer + Barcode Scanner + Short-Range UHF RFID + NFC + Camera + Enterprise Wireless Connectivity

This allows compatible frontline applications to capture and process several types of information from one device.

For example:

Barcode / RFID Tag / Image → TC701 → Business Application → Enterprise System

The TC701 provides the mobile hardware and data-capture platform.

Inventory management, warehouse management, field-service, ERP and other business functions depend on the software and backend systems used with the device.

Part of Zebra's TC7 Series

The TC701 joins Zebra's established TC7 Series, which includes earlier TC73 and TC78 platforms.

Zebra positions the TC701 as a new-generation ultra-rugged device with advances in:

• Processing
• On-device AI capability
• Display technology
• Data capture
• Wireless connectivity
• Memory
• Ruggedness

This makes the TC701 particularly relevant for organisations planning new enterprise deployments or evaluating a future-generation replacement for older rugged handheld fleets.

Qualcomm Dragonwing Q-6690 Processor

The TC701 is built around the Qualcomm Dragonwing Q-6690 octa-core processor, with processing capability up to 2.9 GHz depending on configuration.

The platform incorporates a dedicated AI engine designed to support on-device AI workloads.

Potential applications may include:

• Image analysis
• Product recognition
• Visual inspection
• Workflow automation
• Intelligent data capture
• Document analysis
• Frontline assistance

AI capability should not be interpreted as meaning these functions operate automatically.

The actual result depends on the application, AI model, device configuration and enterprise implementation.

Memory & Storage

TC701 configurations include memory options such as:

8 GB LPDDR5 RAM / 128 GB UFS 3.1 Flash

and

12 GB LPDDR5 RAM / 256 GB UFS 3.1 Flash

The platform also supports microSD expansion up to the manufacturer's specified capacity.

Higher memory can be useful where the device needs to support:

• Multiple enterprise applications
• Large local datasets
• Offline operation
• Image-intensive workflows
• AI applications
• Longer deployment lifecycles

Do not assume every TC701 includes 12 GB RAM and 256 GB storage.

The exact configuration depends on SKU.

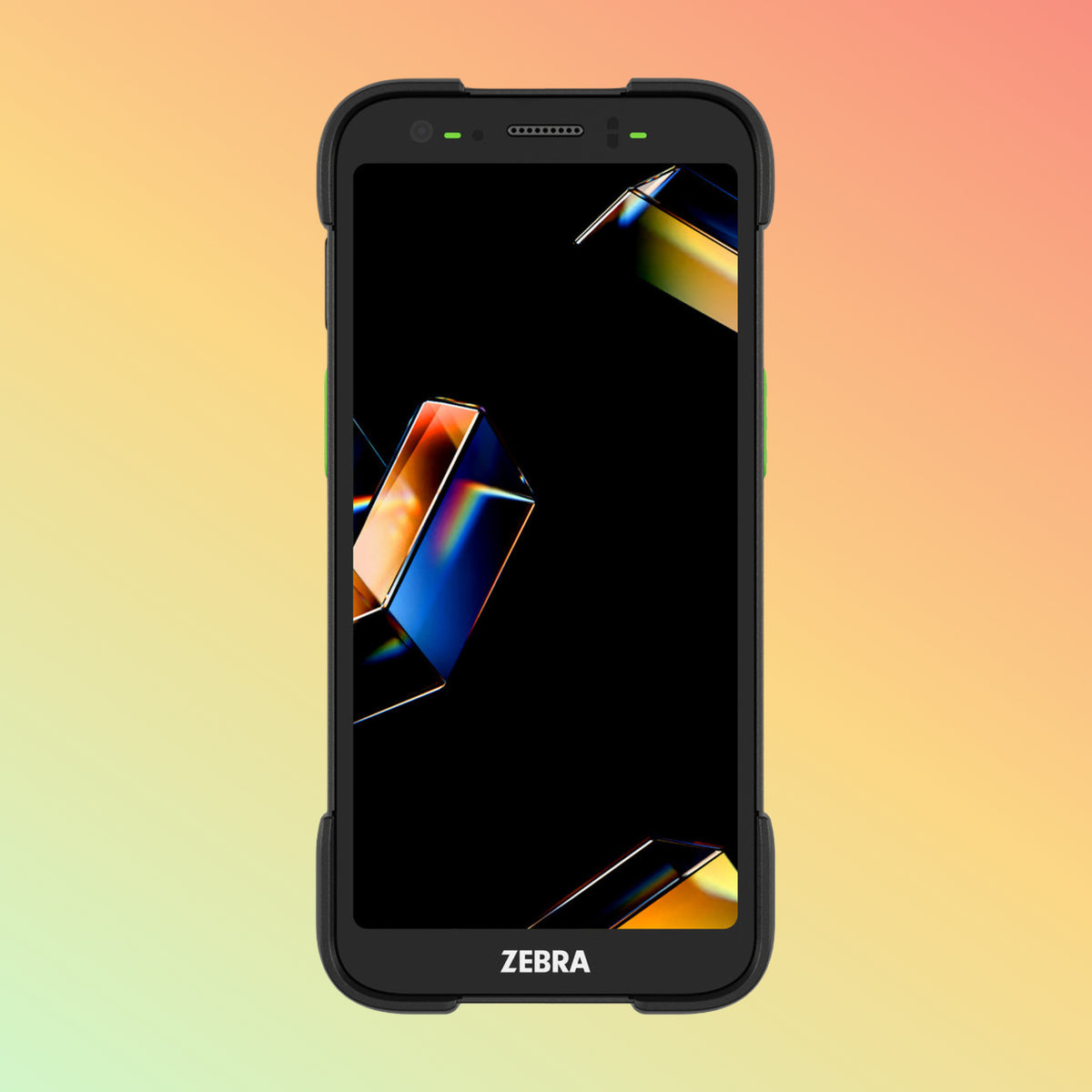

6-Inch AMOLED Display

The TC701 features a 6-inch / 15.2 cm high-resolution AMOLED display.

Key display specifications include:

Resolution: 2160 × 1080

Brightness: Up to 1500 nits

Protection: Corning Gorilla Glass Victus

The larger display can provide useful working space for:

• Warehouse applications
• Maps
• Work orders
• Inventory records
• Forms
• Images
• Product information
• Field-service applications
• Enterprise communication

High brightness can also improve usability in demanding lighting conditions.

Actual readability still depends on environmental conditions and application design.

Professional 1D & 2D Barcode Scanning

The TC701 supports professional Zebra barcode scan-engine options.

Depending on SKU, these include:

SR500 1D/2D Scan Engine

SR560 1D/2D Scan Engine

AC670 Advanced Range Color 1D/2D Scan Engine

The correct scan engine should be selected according to the actual barcode workflow.

Consider:

• Barcode type
• Barcode size
• Label quality
• Reading distance
• Near/far scanning requirement
• Working environment
• Item location

Do not assume every TC701 uses the same barcode scan engine.

AC670 Advanced Range Scanning

For applications requiring a broader range of barcode-reading distances, applicable TC701 configurations can use Zebra's AC670 Advanced Range Color 1D/2D scan engine.

This may be relevant where workers need to capture barcodes at different distances rather than repeatedly moving close to every label.

Potential environments include:

• Warehousing
• Manufacturing
• Logistics
• Distribution

However, scanning performance depends on barcode size, quality, contrast, distance and environmental conditions.

The scan engine should therefore be chosen from the actual barcode requirement rather than simply selecting the highest specification.

Integrated Short-Range UHF RFID

An important TC701 capability is integrated short-range UHF RFID.

Zebra specifies:

RFID Type: Integrated short-range UHF RFID

Maximum Stated Read Range: Up to approximately 6.5 ft / 2 m

Stated Read Performance: More than 200 tags per second

Protocols: EPC Class 1 Gen 2 and EPC Gen 2 V2

This can support workflows such as:

• Item identification
• Asset identification
• Inventory verification
• Item finding
• RFID-enabled receiving
• Stock checking

Actual RFID performance depends on the RFID tag, orientation, product material, RF environment and application.

RFID + Barcode in One Device

The combination of RFID and barcode scanning can be useful where an organisation uses both technologies.

A possible workflow is:

RFID → Locate or identify tagged item

Barcode → Verify specific item or transaction

Camera → Capture supporting evidence

TC701 Application → Update enterprise system

This does not mean RFID should replace barcodes everywhere.

The two technologies serve different purposes and can complement each other.

Short-Range RFID vs Dedicated RFID Handheld

The TC701 integrates short-range UHF RFID directly into the mobile computer.

This can reduce the need to attach a separate RFID sled for suitable workflows.

However, organisations requiring:

• Substantially longer RFID read range
• Very high-volume RFID inventory sweeps
• Specialised antenna characteristics
• Dedicated RFID ergonomics

may be better served by a dedicated Zebra handheld RFID reader.

Selection should begin with the required RFID workflow rather than with the device specification.

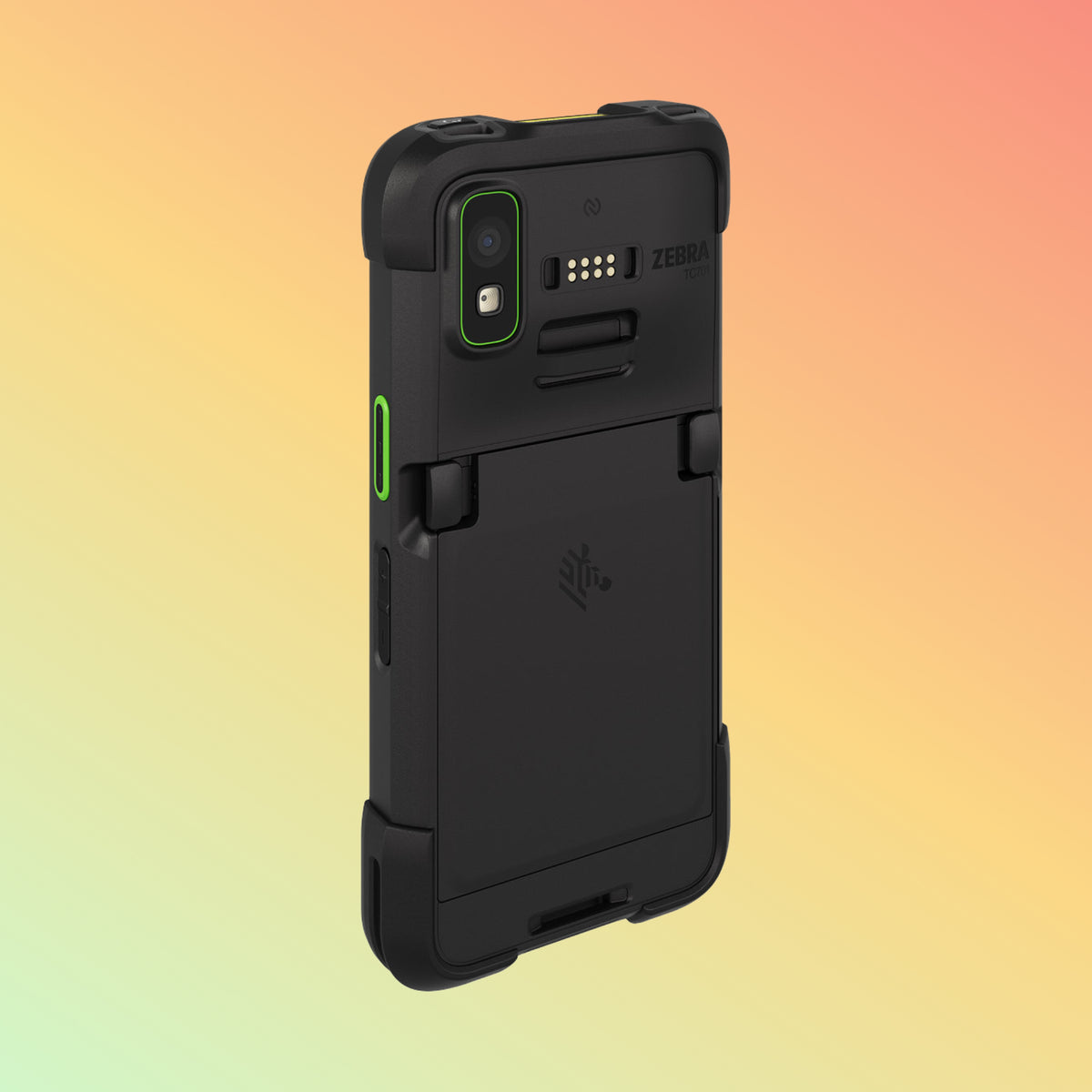

50 MP Rear Camera

The TC701 platform provides a 50 MP rear camera, with camera architecture varying by configuration.

Potential enterprise applications can include:

• Proof of delivery
• Damage documentation
• Asset photography
• Document capture
• Visual inspection
• Product identification
• Field-service records

Some TC701 configurations can also include additional imaging or sensing capabilities.

The exact camera configuration should therefore be verified by part number.

Optional Ultra-Wide Camera

Applicable TC701 configurations can include an additional 13 MP ultra-wide rear camera.

This may be useful for applications requiring a wider field of view or specialised visual workflows.

Do not assume the ultra-wide camera is included in every TC701.

Optional iToF Sensor

Certain configurations are available with indirect Time-of-Flight (iToF) sensing.

This can support compatible applications that use depth-related information.

Again, this is a configuration-dependent capability and should not be listed as standard on every TC701 SKU.

Front Camera

The TC701 also incorporates an 8 MP front-facing camera.

Potential uses can include:

• Video communication
• Remote support
• Workforce collaboration

Actual functionality depends on the software deployed on the device.

Wi-Fi 7

The TC701 supports Wi-Fi 7.

This provides a modern wireless platform for organisations deploying or planning newer enterprise Wi-Fi infrastructure.

Wi-Fi 7 can provide improvements in areas such as:

• Network capacity
• Latency
• Wireless performance
• Future network readiness

However:

Wi-Fi 7 Device + Existing Wi-Fi Network = Capability of the Available Network

Buying a Wi-Fi 7 mobile computer does not automatically upgrade the customer's wireless infrastructure.

5G Cellular Connectivity

Applicable TC701 WWAN configurations support 5G, including newer-generation cellular capabilities.

This can be useful for employees operating outside company Wi-Fi coverage, including:

• Delivery personnel
• Field technicians
• Transportation workers
• Utility teams
• Public-sector field personnel
• Mobile logistics operations

Do not assume every TC701 has cellular capability.

The exact SKU, regional cellular bands, SIM/eSIM arrangement and network compatibility should be verified.

Wi-Fi-Only vs 5G TC701

This is an important purchasing decision.

Wi-Fi Configuration

May be appropriate for workers who remain primarily within:

• Warehouses
• Manufacturing facilities
• Distribution centres
• Stores
• Enterprise campuses

5G / WWAN Configuration

May be more appropriate for workers who regularly operate:

• On the road
• At customer locations
• Across outdoor sites
• Between facilities
• Away from enterprise Wi-Fi

Paying for cellular capability that is not required may add unnecessary cost.

Likewise, purchasing a Wi-Fi-only configuration for a field worker can create operational limitations.

Bluetooth 6.0

The TC701 supports Bluetooth 6.0.

Bluetooth can be used with compatible peripherals such as:

• Headsets
• Mobile printers
• Other supported enterprise accessories

Bluetooth version alone does not guarantee compatibility with every device.

Required Bluetooth profiles and application support should be checked.

NFC

The TC701 supports NFC technologies for compatible contactless workflows.

Potential applications can include:

• NFC tag reading
• Employee identification
• Asset interaction
• Authentication
• Compatible contactless services

NFC and UHF RFID should not be confused.

They operate at different frequencies and serve different use cases.

Triple-Band GNSS

Applicable WWAN configurations support advanced location capabilities including triple-band GNSS.

Supported satellite/navigation technologies vary by configuration and can include systems such as GPS, Galileo, BeiDou and GLONASS.

This can be relevant to:

• Field service
• Transportation
• Delivery
• Utilities
• Outdoor asset workflows

Location performance depends on environment, satellite visibility and application.

Ultra-Rugged Construction

Ruggedness is one of the defining characteristics of the TC701.

Zebra positions it as its most rugged TC7 Series handheld to date.

Published manufacturer specifications include performance up to multiple 12 ft / 3.66 m drops to concrete under specified conditions and configurations.

The TC701 is intended for environments where accidental drops and demanding operational conditions are realistic parts of the working day.

Manufacturer drop testing should not be interpreted as a guarantee against damage from every fall, impact or misuse.

IP65 & IP68 Sealing

Zebra specifies:

IP65

and

IP68

environmental sealing according to applicable IEC testing.

These ratings provide protection against specified dust and water exposure under controlled test conditions.

IP68 should not be interpreted simply as “waterproof.”

Real-world protection can be affected by:

• Device condition
• Port condition
• Seals
• Damage
• Accessories
• Exposure duration
• Environmental conditions

Hot-Swappable Battery

The TC701 uses a removable hot-swappable battery architecture.

Battery options include:

Standard Battery: approximately 5,000 mAh

Wireless-Charging Battery: approximately 5,000 mAh on applicable configurations

Extended Battery: approximately 7,240 mAh

This can be particularly useful for multi-shift operations.

A typical workflow is:

Battery Low → Replace with Charged Battery → Continue Working

rather than removing the entire mobile computer from service for charging.

Exact battery configuration should be confirmed before ordering.

Android Enterprise Platform

The TC701 operates on Android and is part of Zebra's enterprise mobility ecosystem.

For an enterprise deployment, the important questions extend beyond:

“Does it run Android?”

Organisations should also consider:

• Current supported Android version
• Future Android lifecycle
• Application compatibility
• Security policy
• MDM/EMM
• Zebra Mobility DNA
• OS update strategy
• Device deployment period

The current Zebra Android lifecycle should be checked when planning a long-term fleet deployment.

Zebra Mobility DNA

The TC701 can be used with Zebra's Mobility DNA ecosystem.

Available software capabilities vary according to licensing, configuration and deployment.

Potential areas include:

• Device management
• Security
• Data capture
• Device staging
• Enterprise communication
• Workflow optimisation

Customers should verify which Mobility DNA applications or licences are required rather than assuming all software functionality is included with the hardware.

AI-Ready Frontline Computing

Zebra has designed the TC701 platform with on-device AI workloads in mind.

The Qualcomm Dragonwing processor, dedicated AI capabilities, cameras, barcode engines and other sensors can provide the hardware foundation for compatible AI-enabled applications.

Potential examples include:

• Visual recognition
• Product identification
• Inspection assistance
• Intelligent document capture
• Workflow guidance

However, the TC701 does not automatically provide an AI business solution.

The required software, model, training, integration and business process remain separate considerations.

Transportation & Logistics

The TC701 can be considered for applications such as:

• Pickup and delivery
• Shipment identification
• Barcode scanning
• Proof of delivery
• Asset identification
• Mobile documentation
• Route-related applications
• RFID-enabled workflows

5G and GNSS can be particularly relevant for applicable field configurations.

Warehousing & Distribution

Potential warehouse applications include:

• Receiving
• Put-away
• Picking
• Packing
• Cycle counting
• Inventory
• Asset identification
• Barcode scanning
• RFID-assisted item identification

The correct scan engine is especially important.

A worker scanning nearby item labels may need a different configuration from a worker reading barcodes across warehouse racks.

Manufacturing

Potential manufacturing workflows include:

• Component identification
• Work-in-process tracking
• Material movement
• Inventory
• Quality documentation
• Asset tracking
• Finished-goods verification
• Barcode and RFID capture

The rugged design can be useful where consumer smartphones are not appropriate for the operating environment.

Field Service & Utilities

The TC701 may be particularly relevant to field workers who need:

• 5G connectivity
• GNSS
• Work-order access
• Barcode scanning
• RFID identification
• Photography
• Documentation
• Enterprise communication

Battery, cellular, camera and scanning configurations should be selected according to the field workflow.

Retail

Although the TC701 is designed for demanding enterprise use, applicable retail workflows may include:

• Inventory
• Receiving
• RFID item finding
• Product lookup
• Stock verification
• Barcode scanning
• Backroom operations

For lighter retail environments, another Zebra mobile computer may provide sufficient capability at lower complexity or cost.

Government & Public-Sector Operations

Potential applications include:

• Field inspections
• Asset identification
• Mobile records
• Barcode capture
• Documentation
• Location-aware workflows

The complete solution should be evaluated according to the organisation's security, software and regulatory requirements.

Technical Specifications

Brand: Zebra Technologies

Model: TC701

Series: TC7 Series

Product Type: Ultra-Rugged Enterprise Mobile Computer

Operating System: Android; supported versions and lifecycle should be verified with current Zebra information

Processor: Qualcomm Dragonwing Q-6690 octa-core, up to 2.9 GHz depending on configuration

Memory Options: 8 GB LPDDR5 RAM / 128 GB UFS 3.1 Flash or 12 GB LPDDR5 RAM / 256 GB UFS 3.1 Flash depending on SKU

Expandable Storage: microSD support up to manufacturer-specified capacity

Display: 6-inch AMOLED

Display Resolution: 2160 × 1080

Display Brightness: Up to 1500 nits

Display Protection: Corning Gorilla Glass Victus

Barcode Scan Engines: SR500, SR560 or AC670 depending on SKU

Barcode Capability: 1D/2D according to selected scan engine

Integrated RFID: Short-range UHF RFID

RFID Read Range: Up to approximately 2 m / 6.5 ft under manufacturer-stated conditions

RFID Read Rate: More than 200 tags per second under manufacturer-stated conditions

RFID Protocols: EPC Class 1 Gen 2 / EPC Gen 2 V2

Rear Camera: 50 MP; configuration dependent

Ultra-Wide Rear Camera: 13 MP on applicable configurations

Front Camera: 8 MP

iToF Sensor: Available on applicable configurations

NFC: Supported

Wi-Fi: Wi-Fi 7

Bluetooth: Bluetooth 6.0

Cellular: 5G on applicable WWAN configurations

GNSS: Triple-band GNSS on applicable configurations

USB: USB Type-C / USB 3.1

Battery: Removable hot-swappable architecture

Standard Battery: Approximately 5,000 mAh

Extended Battery: Approximately 7,240 mAh

Environmental Sealing: IP65 / IP68

Dimensions: Approximately 165 × 77.9 × 15.5 mm

Weight: Approximately 284 g with standard 5,000 mAh battery; configuration dependent

Exact specifications depend on the complete Zebra TC701 SKU and regional configuration.

TC701 vs TC73 / TC78

The TC701 should not automatically be selected merely because it is newer.

Consider TC701 When

• Wi-Fi 7 is important
• New-generation processing is required
• On-device AI workloads are being considered
• Integrated short-range UHF RFID is useful
• Higher memory configurations are required
• Advanced camera/sensor configurations are useful
• Maximum TC7 ruggedness is important
• A new long-term deployment is being planned

TC73 / TC78 May Still Be Appropriate When

• Existing deployment standardisation matters
• Current applications are already validated
• Wi-Fi 6E meets the requirement
• The newer TC701 capabilities provide no operational benefit
• Existing accessories/infrastructure are important

Newer does not automatically mean better for every deployment.

TC701 vs TC501

The TC501 and TC701 share several next-generation technologies, but they target different levels of rugged deployment.

TC501

May suit organisations requiring a modern rugged enterprise handheld for retail, inventory, logistics and general frontline mobility.

TC701

Should receive stronger consideration where the environment requires an ultra-rugged TC7-class device, particularly for demanding transportation, warehouse, manufacturing, field-service or outdoor workflows.

Selection should be based on the operating environment and workflow rather than model number alone.

Who Should Consider the Zebra TC701?

The TC701 may be worth evaluating where workers require several of the following in one device:

• Ultra-rugged handheld construction
• Android enterprise applications
• Professional 1D/2D barcode scanning
• Short-range UHF RFID
• NFC
• High-resolution cameras
• Wi-Fi 7
• 5G
• GNSS
• Hot-swappable batteries
• Advanced processing
• On-device AI capability
• Multi-year enterprise deployment

Who May Need Another Solution?

Another device may be more appropriate where:

• Only basic barcode scanning is required
• RFID is unnecessary
• Wi-Fi-only light-duty retail operation is involved
• A lower-cost rugged handheld meets the requirement
• A rugged tablet is required
• Physical keypad entry is important
• Dedicated long-range RFID performance is required
• Specialised warehouse ergonomics require a gun-style mobile computer

The TC701 has substantial capabilities, but paying for capabilities that do not improve the actual workflow is unnecessary.

Things to Verify Before Ordering

Please verify:

• Exact Zebra TC701 part number
• Destination/region
• Wi-Fi-only or WWAN/5G
• Cellular bands
• SIM/eSIM requirements
• Required barcode scan engine
• Near-range or advanced-range scanning
• Barcode types and sizes
• Required scanning distance
• RFID frequency
• RFID tags
• RFID workflow and required range
• 8 GB / 128 GB or 12 GB / 256 GB configuration
• Standard or extended battery
• Wireless-charging requirement
• Rear-camera configuration
• Ultra-wide camera requirement
• iToF requirement
• Android version/lifecycle
• Enterprise application compatibility
• MDM/EMM requirements
• Zebra software/licensing
• Cradles and charging equipment
• Protective accessories
• Quantity

Do not order the TC701 only by model name. Verify the complete Zebra SKU and required configuration first.

FAQ - Zebra TC701

Q: What is the Zebra TC701?

A: The TC701 is an ultra-rugged Android enterprise mobile computer in Zebra's TC7 Series, combining professional barcode scanning, integrated short-range UHF RFID, NFC, cameras and modern wireless connectivity.

Q: Does the Zebra TC701 have built-in UHF RFID?

A: Zebra identifies integrated short-range UHF RFID as a TC701 capability, with published performance up to approximately 2 m and more than 200 tags per second under applicable conditions.

Q: Does the TC701 scan 1D and 2D barcodes?

A: Yes. Zebra offers multiple 1D/2D scan-engine configurations, including SR500, SR560 and AC670. The exact engine depends on the TC701 SKU.

Q: Does every TC701 include the AC670 advanced-range scanner?

A: No. Barcode scan-engine configuration varies by part number. Confirm the required scanning range before ordering.

Q: Does the TC701 support Wi-Fi 7?

A: Yes. Wi-Fi 7 is supported by the TC701 platform.

Q: Does every TC701 include 5G?

A: No. 5G is relevant to applicable WWAN configurations. Wi-Fi-only configurations are also available.

Q: What display does the TC701 use?

A: Zebra specifies a 6-inch high-resolution AMOLED display with 2160 × 1080 resolution, up to 1500 nits brightness and Gorilla Glass Victus protection.

Q: What memory configurations are available?

A: Configurations include 8 GB RAM with 128 GB Flash and 12 GB RAM with 256 GB Flash. Exact availability depends on SKU and region.

Q: Is the TC701 suitable for AI applications?

A: The hardware is designed to support modern on-device AI workloads through its Qualcomm Dragonwing platform and dedicated AI processing capabilities. Actual AI functionality depends on the application and implementation.

Q: How rugged is the TC701?

A: Zebra specifies IP65/IP68 sealing and very high drop/tumble performance under defined manufacturer test conditions, including applicable configurations tested for multiple drops from up to 12 ft / 3.66 m.

Q: Does the TC701 have a removable battery?

A: Yes. The platform uses a removable hot-swappable battery architecture, with standard and extended-capacity options.

Q: Can the TC701 replace a dedicated handheld RFID reader?

A: For some short-range RFID workflows, potentially yes. Applications requiring substantially greater RFID range or specialised high-volume RFID ergonomics may still require a dedicated RFID reader.

Q: Is the TC701 better than the TC78?

A: It is newer and provides several advanced capabilities, but “better” depends on the application. Existing TC78 deployments may not benefit commercially from changing devices if their current workflow is already fully supported.

Q: Is TC701 suitable for warehouses?

A: Yes, it can support warehouse workflows such as receiving, inventory, picking, packing and barcode/RFID capture. The scan engine and configuration should be selected according to the actual warehouse requirement.

Related Products

Zebra TC701 Mobile Computer

Zebra TC501 Mobile Computer

Zebra TC73 Mobile Computer

Zebra TC78 Mobile Computer

Zebra UHF RFID Mobile Computers

Zebra Rugged Android Mobile Computers

Zebra Enterprise Barcode Scanners

Zebra Handheld RFID Readers

Helpful Internal Links

NEOTECH® UAE

https://www.neotech.ae/

Why NEOTECH® UAE?

A mobile computer such as the TC701 should be selected from the workflow backward rather than from the specification sheet forward.

A useful selection sequence is:

Working Environment → Application → Barcode Distance → RFID Requirement → Connectivity → Memory → Camera/Sensors → Battery → Software → Accessories → Exact Zebra SKU

A TC701 with the wrong scan engine can be less useful than a lower-specification device with the correct scanner.

Similarly, paying for 5G, extended battery capacity or specialised sensors provides little value when the workflow does not require them.

NEOTECH® therefore encourages customers to identify the operational requirement first and the exact TC701 configuration second.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

The NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content. Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

There is no obligation or pressure to purchase. Customers are encouraged to verify the exact TC701 part number, scan engine, RFID frequency, connectivity, memory, battery, camera/sensor configuration, Android lifecycle and application compatibility before ordering.

Delivery – UAE

Delivery available within UAE.

Delivery timing depends on destination and order confirmation.

Exact Zebra part number, regional configuration, accessories, availability and applicable warranty should be confirmed at quotation/order stage.

Contact NEOTECH® UAE

Website: https://www.neotech.ae/

Email: support@neotech.ae

Address: Store 13, Computer Bldg, Al Fahidi, Bur Dubai, Dubai 44245, United Arab Emirates

Disclaimer - NEOTECH® UAE

Zebra, TC701, TC7 Series and associated Zebra product names are trademarks or product identifiers of their respective owner.

The TC701 is available in multiple configurations. Scan engine, memory, cellular connectivity, cameras, sensors, battery and other features can vary by SKU and region.

RFID range, RFID tag-reading rate, drop performance, display brightness and other manufacturer-rated figures are measured under defined conditions. Actual results depend on configuration, environment and use.

The TC701 hardware does not independently provide a complete warehouse, RFID, logistics, manufacturing, field-service or AI solution. Software, network infrastructure, backend systems and implementation may also be required.

There is absolutely no obligation or pressure to proceed with the purchase with us.

Last Updated: 11 September 2026  (GST, UTC+4)
