Large-format 300 dpi direct-to-card printing for event badges, credentials, ticketing and access-control applications

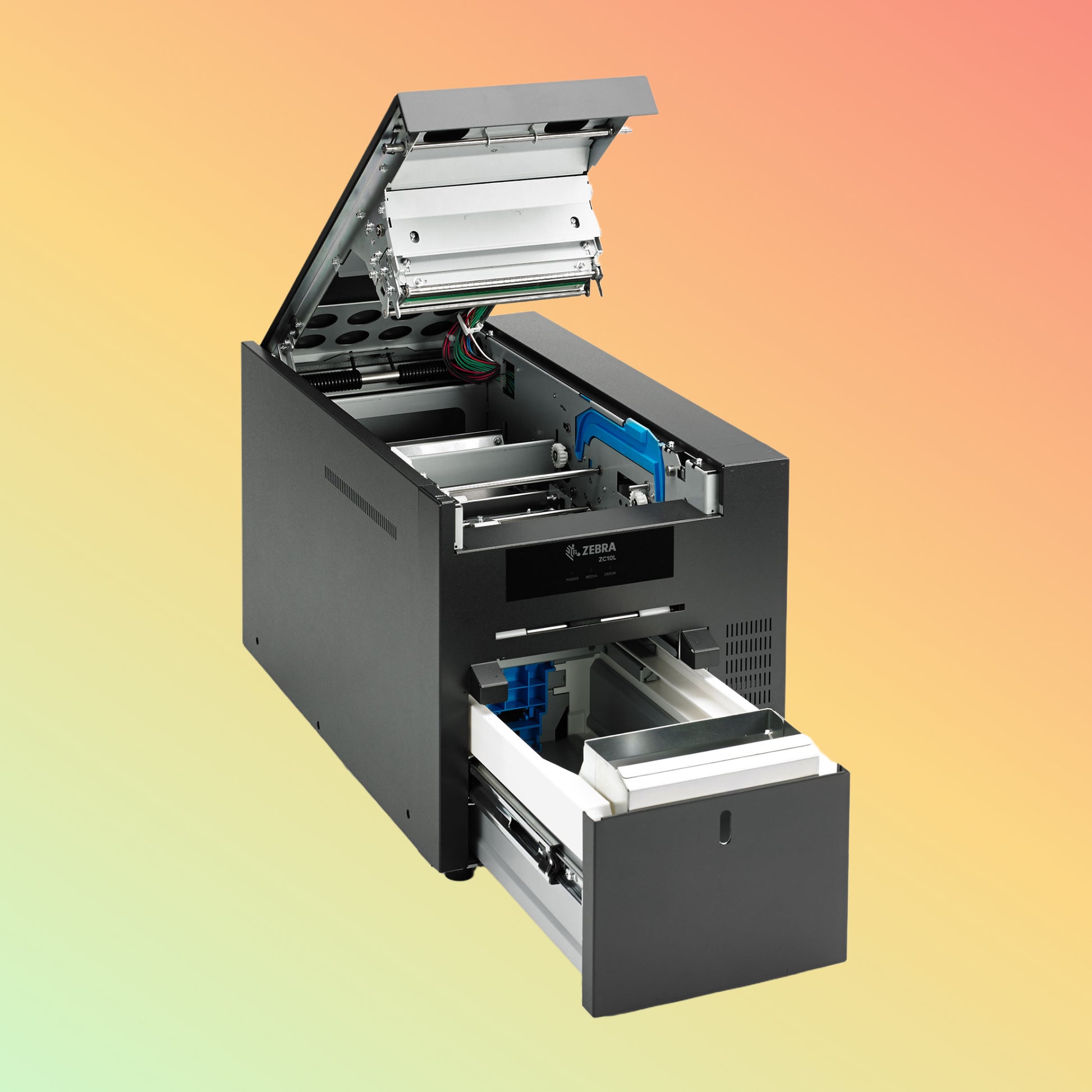

The Zebra ZC10L Large-Format Card Printer is designed for organizations that need to produce oversized, full-color cards and badges on demand.

Unlike conventional ID card printers intended primarily for standard CR80-sized cards, the ZC10L specializes in large-format credentials. It uses direct-to-card printing technology with 300 dpi resolution and supports edge-to-edge card designs containing photographs, graphics, text and barcodes.

Its application focus makes it particularly relevant for event credentials, hospitality badges, ticketing and access-control environments where a larger printed credential provides more space for identification and visual information.

Key Features

• Large-format card and badge printing
• Direct-to-card print technology
• 300 dpi (12 dots/mm) print resolution
• Single-sided printing
• Full-color and monochrome printing capability with appropriate supplies
• Edge-to-edge card personalization
• Supports graphics, photographs, text and barcodes
• Designed for on-demand credential production
• Suitable for ticketing and access-control applications
• Metal construction designed for large-format card-printing environments
• USB connectivity
• Purpose-designed large-format Zebra card and ribbon supplies

Zebra currently identifies the ZC10L as a single-sided dye-sublimation printer using RFID-tagged color and monochrome ribbons with specialized PVC cards.

Large-Format Credential Printing

The main distinction of the ZC10L is its ability to produce oversized cards and badges rather than conventional standard-size ID cards.

A larger credential provides additional printable area for combinations of:

• Attendee name
• Photograph
• Organization or event branding
• Access level
• Job title
• Event information
• Sponsor graphics
• Barcodes
• QR codes
• Other visual identification information

This makes the ZC10L worth considering where visibility and information capacity are more important than the compact dimensions of a traditional ID card.

Direct-to-Card Printing

The ZC10L uses direct-to-card technology.

With this printing method, the image is transferred directly onto compatible card media rather than first being printed onto an intermediate transfer film.

Zebra specifies a print resolution of:

300 dpi (12 dots/mm)

The printer can therefore be used to create credentials incorporating photographs, logos, text, graphics and machine-readable codes when the card design and media are appropriately configured.

Single-Sided Printing

An important point to verify before purchasing is that the Zebra ZC10L is a single-sided card printer.

Organizations requiring automatic printing on both sides of a credential should therefore evaluate their workflow carefully before selecting this model.

Applications

The Zebra ZC10L may be considered for:

• Event badges
• Conference credentials
• Hospitality credentials
• Festival and venue passes
• Media credentials
• VIP badges
• Staff identification
• Visitor credentials
• Ticketing applications
• Access-control credentials
• Large-format personalized cards

Zebra specifically identifies ticketing and access control among the commonly used applications for the ZC10L.

Technical Specifications

Brand: Zebra

Model: ZC10L

Product Type: Large-format card and badge printer

Print Technology: Direct-to-card

Printing: Single-sided

Print Resolution: 300 dpi / 12 dots per mm

Output: Color and monochrome depending on installed ribbon and media

Card Personalization: Edge-to-edge

Connectivity: USB

Typical Applications: Ticketing, access control and large-format credential printing

Supported Content: Text, photographs, graphics, images and barcodes through appropriate card-design workflows

Supplies and Media

The ZC10L requires supplies specifically compatible with this printer platform.

These can include:

• Large-format PVC card media
• Color ribbons
• Monochrome ribbons
• Cleaning supplies

Ribbon and card specifications should be matched carefully to the required application.

Using the printer model alone is not sufficient when ordering consumables—the exact Zebra supply part number should be verified before purchase.

Related Zebra ZC10L Supplies

Two particularly relevant ZC10L items are:

Zebra 800010-140
YMCO color ribbon for Zebra ZC10L
147 mm × 157 m
Rated for 400 images according to the identified supply configuration.

Zebra 105999-10L
ZC10L media kit consisting of compatible large-format cards and a YMCO ribbon. The identified kit specifies 400 cards with 17 mil thickness plus one ribbon.

These supplies should still be checked against the exact printer configuration and intended credential design before ordering.

What Comes With the Printer?

Zebra currently lists the following with the ZC10L:

• Printer
• Power cord
• USB cable
• Output tray
• Cleaning roller

Exact regional packaging should be confirmed against the ordered part number because package contents can change by configuration or region.

Purpose of Use

The ZC10L is intended for organizations requiring larger personalized credentials than those normally produced by standard desktop ID card printers.

It can be useful where a credential must remain clearly visible while providing sufficient space for branding, identification information and machine-readable data.

Things to Verify Before Ordering

Before selecting a Zebra ZC10L, confirm:

• Exact printer part number
• Required card dimensions
• Required card thickness
• Color or monochrome printing requirement
• Required ribbon part number
• Number of credentials expected
• Single-sided printing suitability
• Required barcode or QR-code design
• Host computer and software requirements
• Regional power configuration
• Availability of compatible media and ribbons

For replacement installations, provide the complete model and part number from the existing printer wherever possible.

Who Should Consider the Zebra ZC10L?

The ZC10L may be appropriate for:

• Event organizers
• Conference operators
• Hospitality organizations
• Exhibition organizers
• Entertainment venues
• Sports venues
• Access-control operations
• Organizations issuing temporary or event-specific large credentials

It should not automatically be selected simply because a larger card is desirable. Media availability, card dimensions, software workflow and ongoing ribbon requirements should be evaluated first.

Why NEOTECH® UAE

NEOTECH® focuses on helping customers identify the correct product and part number before ordering.

For specialized card printers such as the Zebra ZC10L, we recommend verifying the printer configuration, card media, ribbon part number and application requirements together rather than choosing a printer based only on its model name.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

There is absolutely no obligation or pressure to proceed with the purchase with us.

Delivery – UAE

Delivery is available within the United Arab Emirates.

Order Cut-Off: 2:00 PM GST (UTC+4)
Handling: 1–2 business days
Transit: 3–5 business days
Estimated Delivery: 4–7 business days
Standard Shipping: Free

Product availability and lead time should be confirmed before ordering.

FAQ - Zebra ZC10L Large-Format Printer

Q: What is the Zebra ZC10L?
A: The ZC10L is a large-format direct-to-card printer designed for producing oversized cards and badges.

Q: What is the print resolution of the ZC10L?
A: Zebra specifies 300 dpi, equivalent to 12 dots/mm.

Q: Is the Zebra ZC10L a normal ID card printer?
A: It is a card printer, but its distinguishing purpose is large-format card and badge production rather than conventional standard-size ID-card printing.

Q: Is the Zebra ZC10L dual-sided?
A: No. Zebra identifies the ZC10L as a single-sided printer.

Q: Can the ZC10L print photographs and graphics?
A: Yes. Zebra states that edge-to-edge card designs can include graphics, text, barcodes and images.

Q: Can it be used for event credentials?
A: Yes. Large-format credentialing is a principal use case for this printer, subject to the required media and card-design workflow.

Q: Can it print barcodes on badges?
A: Yes, barcode elements can be incorporated into card designs. Barcode dimensions, contrast and final readability should be tested against the intended scanner.

Q: Does the ZC10L use special cards and ribbons?
A: Yes. Compatible ZC10L media and ribbons should be selected using the correct Zebra supply part numbers.

Q: Is Zebra 800010-140 related to this printer?
A: Yes. It is a YMCO color ribbon identified for the ZC10L.

Q: Is Zebra 105999-10L related to the ZC10L?
A: Yes. It is an identified ZC10L media-and-ribbon kit. Verify the card thickness and exact application before ordering.
