Industrial Label Printing Built Around the Application.

Industrial 4-Inch Thermal Transfer and Direct Thermal Barcode Printer with 203 dpi Resolution, 4.3-Inch Color Touch Display, USB, Ethernet and Bluetooth Connectivity

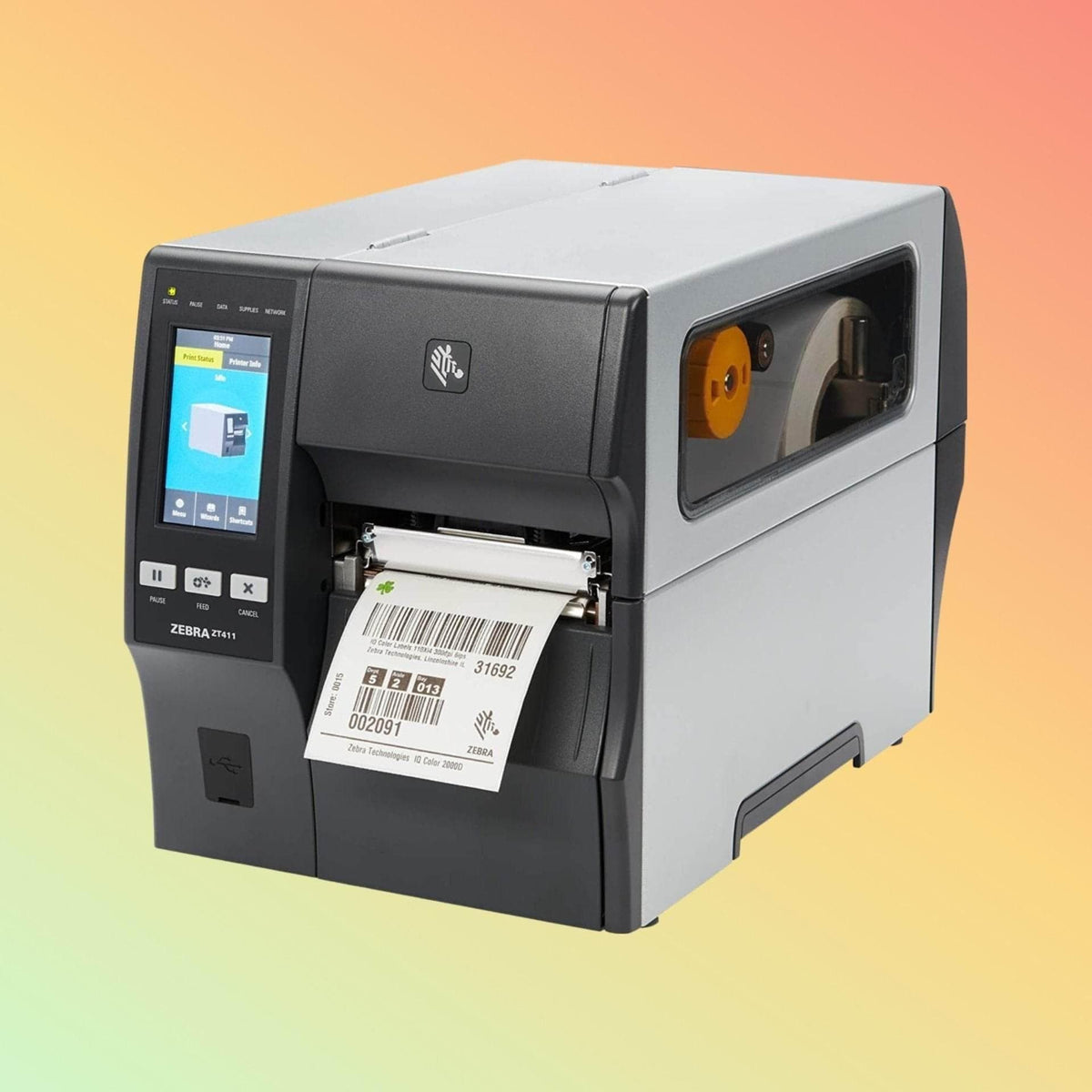

The Zebra ZT411 is a 4-inch industrial barcode label printer designed for applications requiring dependable thermal label printing, flexible connectivity and support for higher-volume operational environments.

This page focuses on the 203 dpi (8 dots/mm) ZT411 configuration, which supports print speeds of up to 14 inches per second (356 mm/sec) and a maximum print width of 4.09 inches (104 mm). Zebra also offers ZT411 configurations with 300 dpi and 600 dpi resolution for applications requiring different levels of print detail.

Typical applications include shipping labels, inventory identification, product identification, work-in-process labels, receiving labels and other barcode-based workflows.

Overview

The Zebra ZT411 belongs to Zebra's ZT400 Series of industrial printers.

It supports both thermal transfer and direct thermal printing, allowing the printer to be used with different label and media requirements.

The printer incorporates a metal frame, side-loading media path, 4.3-inch color touch display and adjustable transmissive and reflective media sensors. Standard communication capabilities documented by Zebra include USB 2.0, RS-232 serial, 10/100 Ethernet, Bluetooth 4.1 and dual USB Host.

Its suitability should be evaluated according to print volume, label dimensions, resolution, media type, connectivity and application requirements.

Key Features

• 203 dpi / 8 dots per mm print resolution
• Thermal transfer and direct thermal printing
• Maximum print width of 4.09 in. / 104 mm
• Print speed up to 14 ips / 356 mm/sec on the 203 dpi configuration
• 4.3-inch color touch display
• USB 2.0 connectivity
• 10/100 Ethernet
• RS-232 serial
• Bluetooth 4.1
• Dual USB Host
• Adjustable transmissive and reflective media sensors
• Metal frame and metal media cover
• Side-loading media and ribbon path
• 256 MB SDRAM
• 512 MB Flash memory
• ZPL, ZPL II and EPL printer programming language support
• Auto-switching 100–240V power supply

These specifications are based on Zebra's current ZT411 technical documentation.

Print Resolution

This product page is intended for the 203 dpi Zebra ZT411 configuration.

Zebra documents the following ZT411 resolution configurations:

• 203 dpi / 8 dots per mm
• 300 dpi / 12 dots per mm — optional configuration
• 600 dpi / 24 dots per mm — optional ZT411 configuration

Resolution should be selected according to the required barcode density, label dimensions, text size and application.

A printer configured with one printhead resolution should not be assumed to provide the other resolutions.

Printing Method

The ZT411 supports:

• Direct Thermal
• Thermal Transfer

Direct thermal printing uses compatible heat-sensitive media without a thermal transfer ribbon.

Thermal transfer printing uses compatible labels together with an appropriate ribbon.

The correct method depends on factors including the required label life, material, operating environment and application.

Printing Specifications

Model: Zebra ZT411

Printer Category: Industrial Barcode Label Printer

Standard Resolution on This Page: 203 dpi / 8 dots per mm

Optional ZT411 Resolutions: 300 dpi and 600 dpi configurations

Printing Methods: Thermal Transfer and Direct Thermal

Maximum Print Width: 4.09 in. / 104 mm

Maximum Print Speed at 203 dpi: 14 ips / 356 mm/sec

Maximum Print Length at 203 dpi: 157 in. / 3988 mm

Media Sensors: Adjustable transmissive and reflective sensors

Memory: 256 MB SDRAM; 512 MB on-board Flash

Display: 4.3-inch color touch display

Programming Languages: ZPL, ZPL II and EPL

Media Specifications

For the standard ZT411, Zebra specifies a maximum media roll size of:

Maximum Roll Diameter: 8.0 in. / 203 mm outside diameter

Standard Core: 3 in. / 76 mm inside diameter

Media Width — Tear/Cutter: 1.00–4.5 in. / 25.4–114 mm

Media Width — Peel/Rewind: 1.00–4.25 in. / 25.4–108 mm

Media Thickness: 0.0023–0.010 in. / 0.058–0.25 mm

Supported media types documented by Zebra include continuous, die-cut, notch and black-mark media. Exact compatibility depends on printer configuration and media requirements.

Ribbon Specifications

For applicable thermal transfer configurations, Zebra documents:

Standard Ribbon Length: 1476 ft. / 450 m

Ribbon Width: 2.00–4.33 in. / 51–110 mm

Ribbon Core: 1.0 in. / 25 mm inside diameter

Ribbon formulation should be matched to the selected label material and application.

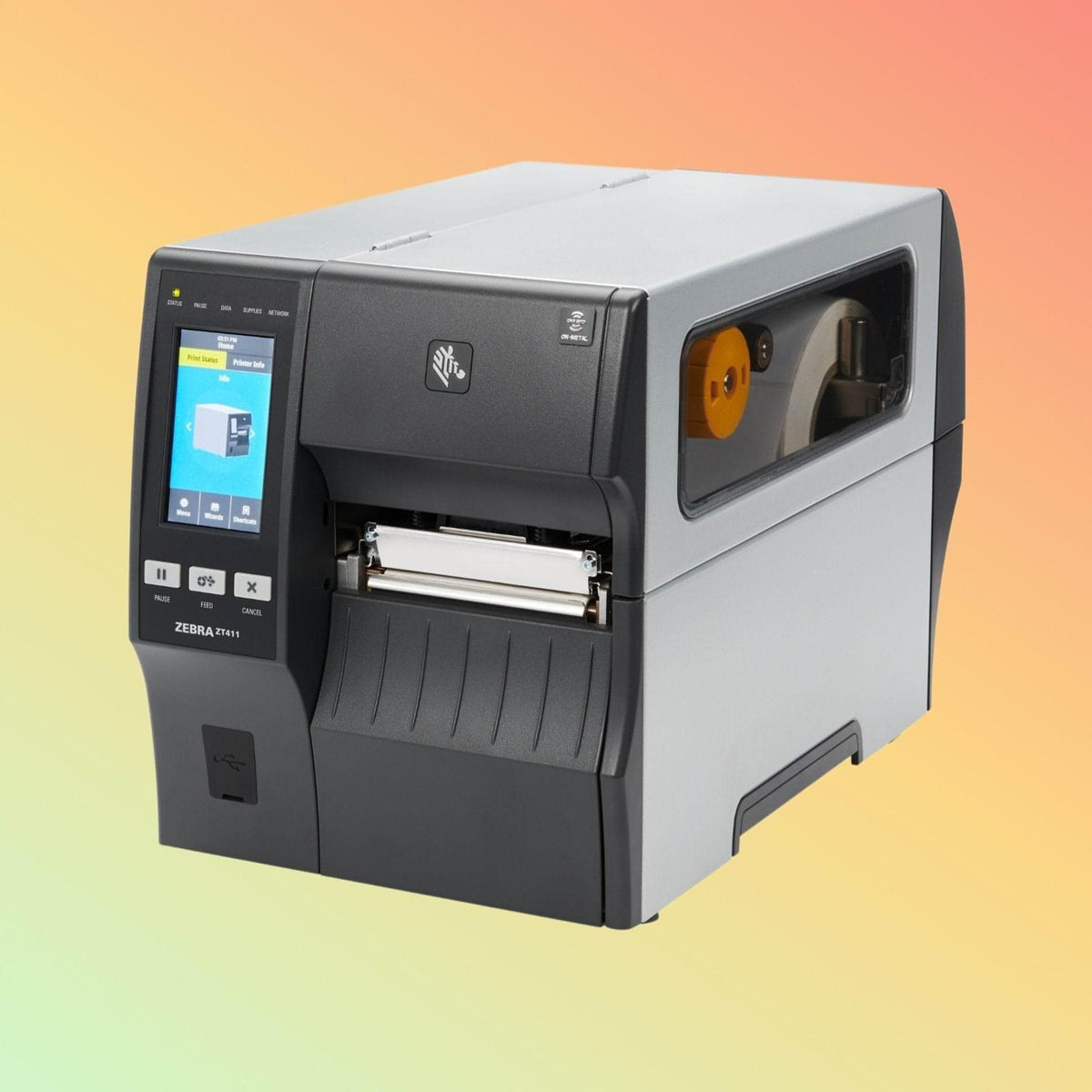

Connectivity

The ZT411 provides multiple interfaces for integration into different printing environments.

Standard features documented by Zebra include:

• USB 2.0
• RS-232 serial
• 10/100 Ethernet
• Bluetooth 4.1
• Dual USB Host

Zebra also documents additional communication options for particular configurations. Availability should therefore be checked against the exact ZT411 part number/configuration being purchased.

Physical Specifications

Dimensions — Base ZT411:
495 mm L × 269 mm W × 324 mm H
19.5 in. L × 10.6 in. W × 12.75 in. H

Weight — Base ZT411:
Approximately 16.33 kg / 36 lb

Dimensions and weight can differ for configurations incorporating additional media-handling hardware.

Applications

Depending on the selected configuration, labels and software environment, the Zebra ZT411 may be considered for applications including:

• Shipping labels
• Receiving labels
• Inventory identification
• Warehouse labels
• Product identification
• Work-in-process labels
• Package labelling
• Pallet and logistics identification
• Manufacturing labels
• Transportation labels
• Asset identification
• Barcode tracking workflows

Zebra identifies manufacturing, transportation/logistics, retail, healthcare, and warehouse/distribution among the markets served by its industrial printer portfolio.

Industries

The ZT411 may be suitable for organizations operating in:

• Manufacturing
• Warehousing
• Distribution
• Transportation
• Logistics
• Retail
• Healthcare
• Industrial operations

Suitability depends on the individual workflow rather than the industry name alone.

Choosing Between 203 dpi, 300 dpi and 600 dpi

Resolution is an important consideration when selecting a ZT411.

203 dpi may be suitable for many standard shipping, warehouse, inventory and general barcode-label applications.

300 dpi may be considered where smaller text, denser barcodes or finer label elements are required.

600 dpi is available as a ZT411 configuration and may be relevant for applications requiring substantially finer print detail.

Higher resolution is not automatically better for every application. Label dimensions, barcode specification, required printing speed and actual information density should be considered together.

ZT411 Media & Consumable Selection

Before ordering labels or thermal transfer ribbons for the Zebra ZT411, confirm:

• Exact printer configuration
• Direct thermal or thermal transfer printing
• Label width and height
• Roll diameter
• Core diameter
• Label material
• Adhesive requirement
• Ribbon width and length
• Ribbon formulation
• Application surface
• Environmental conditions

Matching consumables to both the printer and the application can help avoid unnecessary compatibility problems.

Buyer Guidance

Before purchasing a Zebra ZT411, NEOTECH® recommends confirming:

• Exact Zebra part number
• Required print resolution
• Label dimensions
• Expected print volume
• Direct thermal or thermal transfer requirement
• Required interfaces
• Media-handling requirements
• RFID requirement, if applicable
• Required accessories
• Software/system compatibility

Do not select a ZT411 based only on the model family name because available configurations and options can differ.

Why Choose NEOTECH® UAE

NEOTECH® provides product information intended to help UAE customers evaluate barcode printing hardware according to their actual application.

Our approach is based on:

• Clear model identification
• Technical information based on available manufacturer documentation
• Compatibility-focused guidance
• Transparent availability communication
• UAE-based supply and delivery
• Education before purchasing

There is no obligation or pressure to proceed with a purchase from us.

Learn Before You Choose

Industrial barcode printers should be selected according to the complete printing application rather than print speed or price alone.

Resolution, label size, printing method, media, ribbons, connectivity, operating environment and expected print volume can all influence printer selection.

NEOTECH® Learning Center is free and open to everyone. You do not need to be a NEOTECH® customer to access or benefit from our educational content. Learn at your own pace, explore the information freely, and make informed decisions based on your own needs. There is no obligation or pressure to purchase from NEOTECH®.

Learn First. Decide Second. Buy Only If It Is Right for Your Needs.

FAQ – Zebra ZT411

Q: Does the Zebra ZT411 support both direct thermal and thermal transfer printing?

A: Yes. Zebra specifies both direct thermal and thermal transfer printing for the ZT411. The appropriate printing method depends on the media and application requirements.

Q: What resolutions are available for the Zebra ZT411?

A: Zebra documents 203 dpi as standard, with 300 dpi and 600 dpi configurations also available for the ZT411. This page focuses on the 203 dpi version.

Q: What should I check before ordering a Zebra ZT411?

A: Confirm the exact part number, resolution, printing method, required interfaces, media dimensions, ribbon requirements and any media-handling or RFID requirements. Configuration differences can affect suitability and compatibility.
